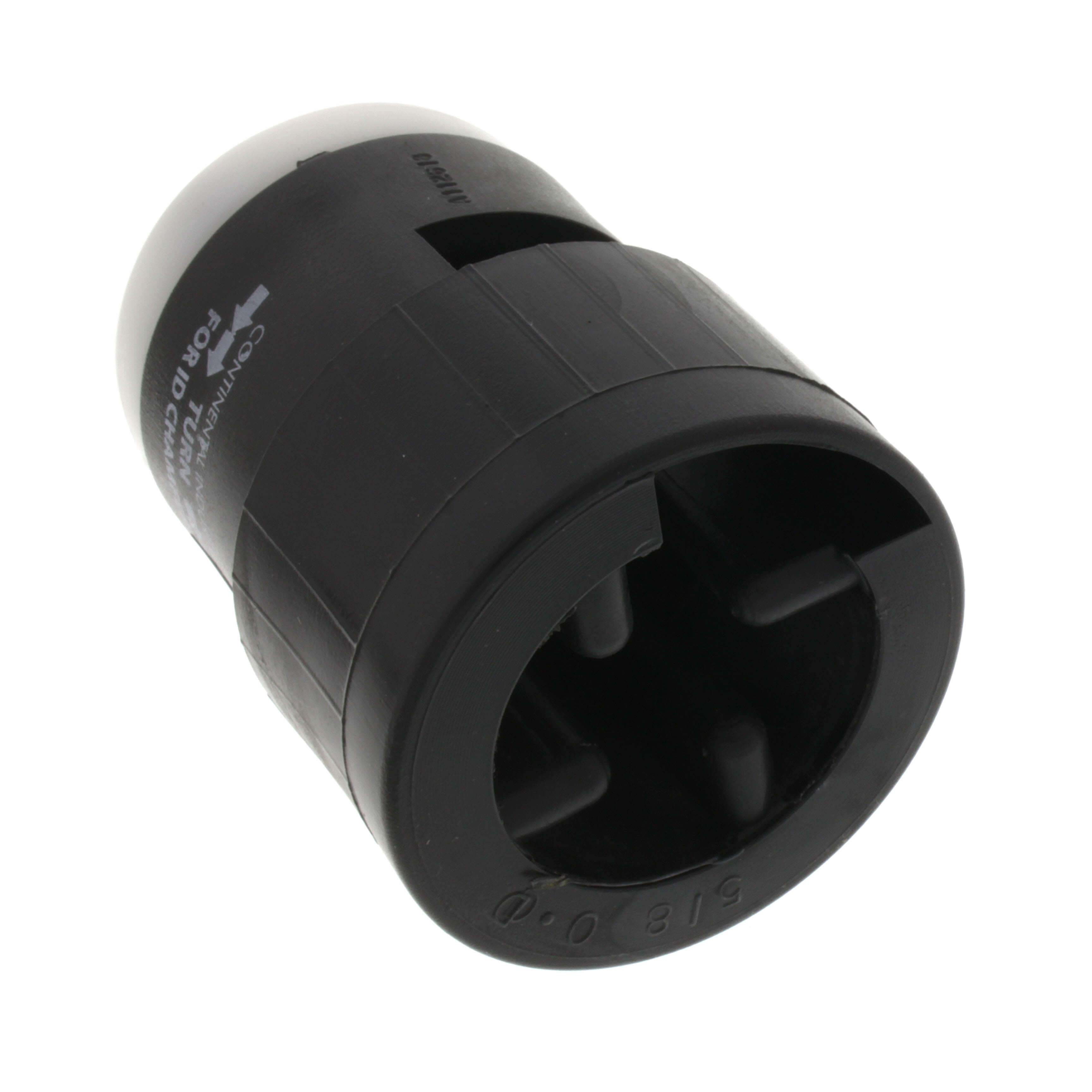

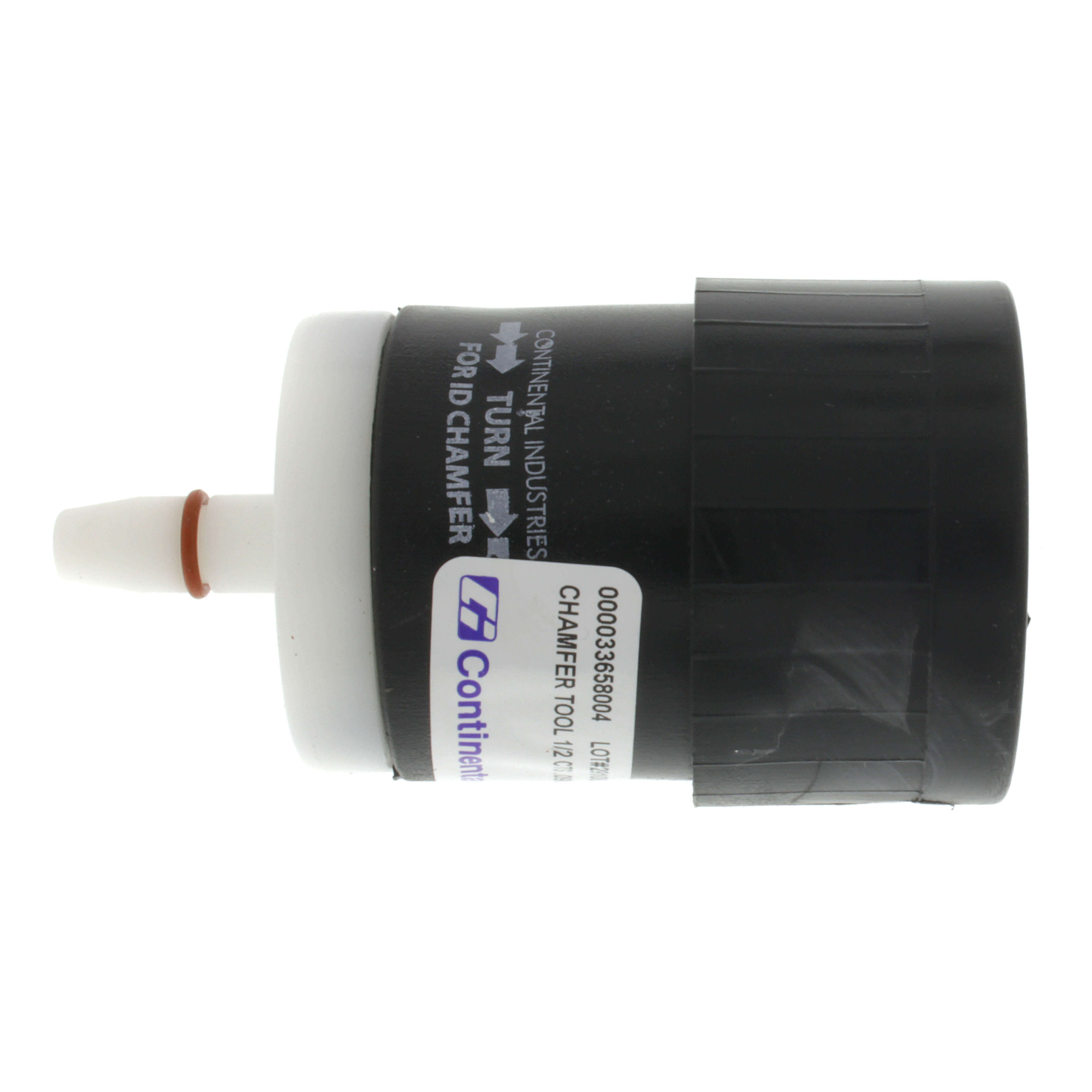

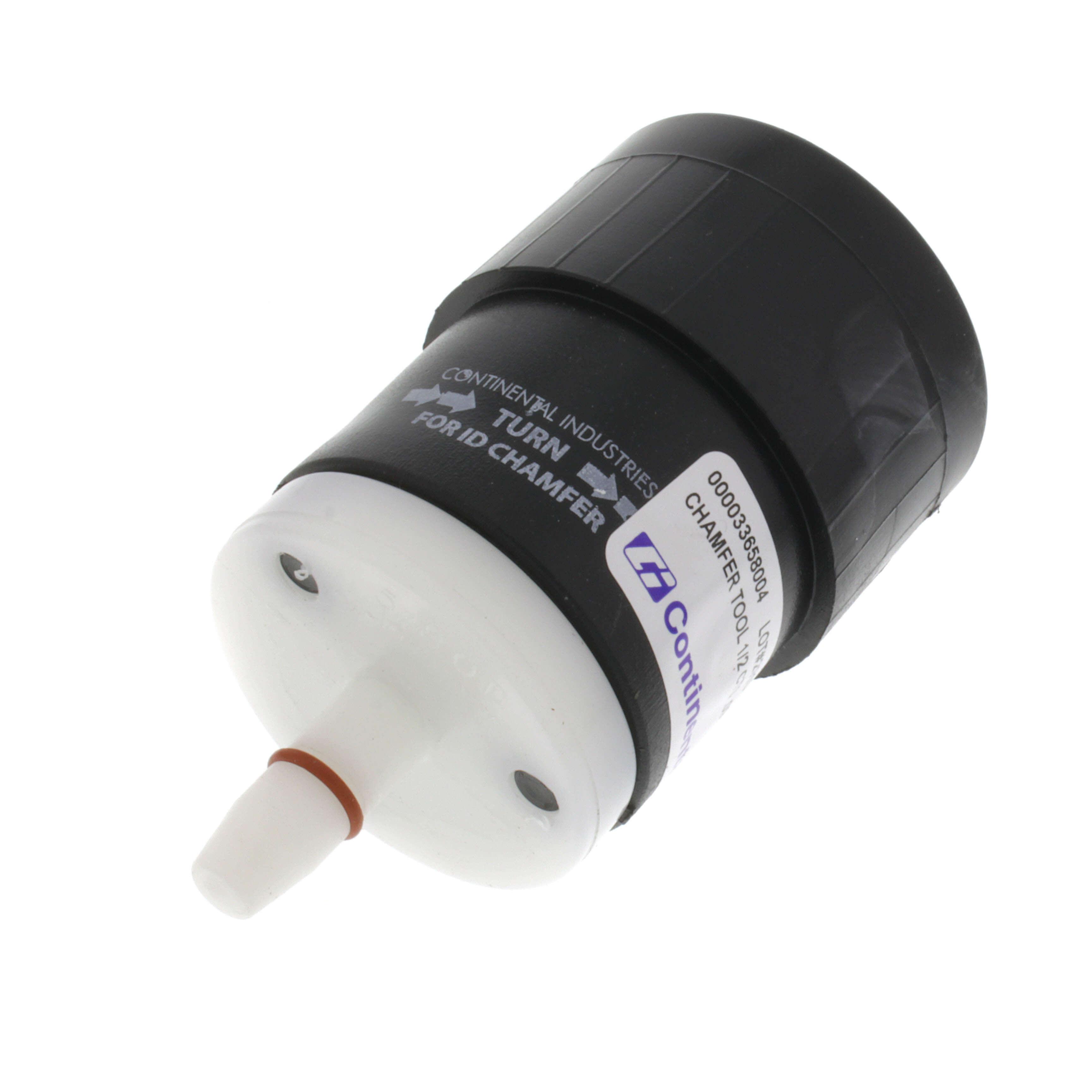

Wal-Rich 2888020 5/8 inches Chamfer Tool SDR-7 (1 Each)

Product Description

Wal-Rich 2888020 is a chamfer tool designed to prepare 5/8 inch outside-diameter (1/2 inch CTS) SDR-7 pipe for joining. The tool provides a clean chamfer for easier fit-up and is compatible with Con-Stab ID Seal fittings. It includes an integrated test gauge to verify the chamfer and typically completes the chamfer in three to five turns. The tool is sold individually and has a package weight of 0.365 lb.

• Sized for 5/8 in OD (1/2 in CTS) polyethylene pipe, SDR-7
• Integrated test gauge to verify proper chamfer; typically 3 to 5 turns to complete
• .090 wall specification; UPC/CSA and MA Code approved; sold as single unit

Product Highlights

Chamfers 5/8 in OD SDR-7 pipe for Con-Stab ID Seal fittings; integrated test gauge; .090 wall

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2888020
• Country of Origin: USA

Technical Specifications

• Brand: Wal-Rich
• Manufacturer Part Number: 2888020
• Product Type: Chamfer Tool
• Size: 1/2" CTS (5/8" OD)
• Outside Diameter: 5/8 in
• SDR Rating: SDR-7
• Wall Specification: .090 wall
• Compatible Fittings: Con-Stab ID Seal fittings
• Integrated Test Gauge: Yes
• Typical Turns to Chamfer: 3 to 5 turns
• Approvals: UPC/CSA Approved; MA Code Approved
• Weight: 0.365 lb
• Quantity Per Package: 1 Each
• Unit of Measure: EA
• UPC: 73028414754
• Country of Origin: Made in USA
• Category: Chamfering Tool / Pipe Fitting Accessories
