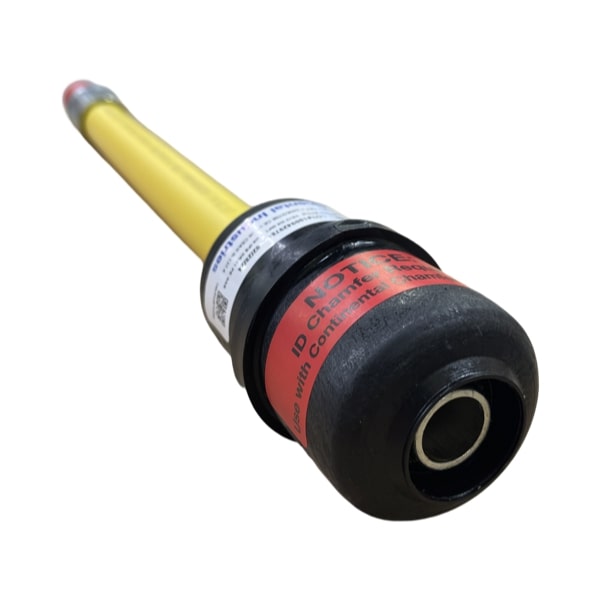

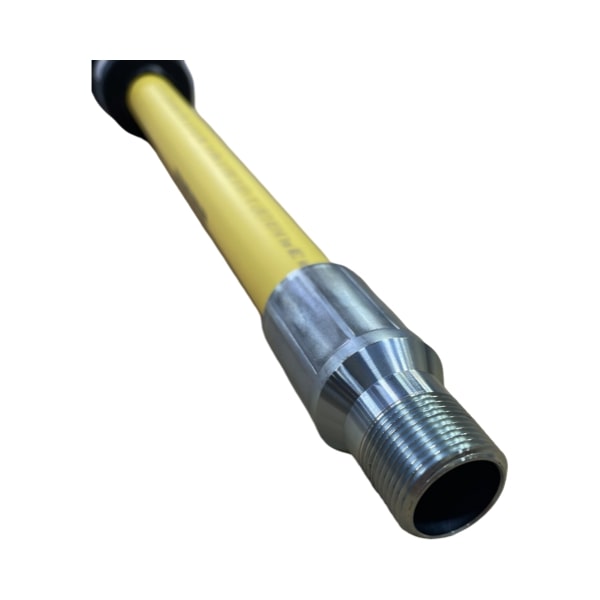

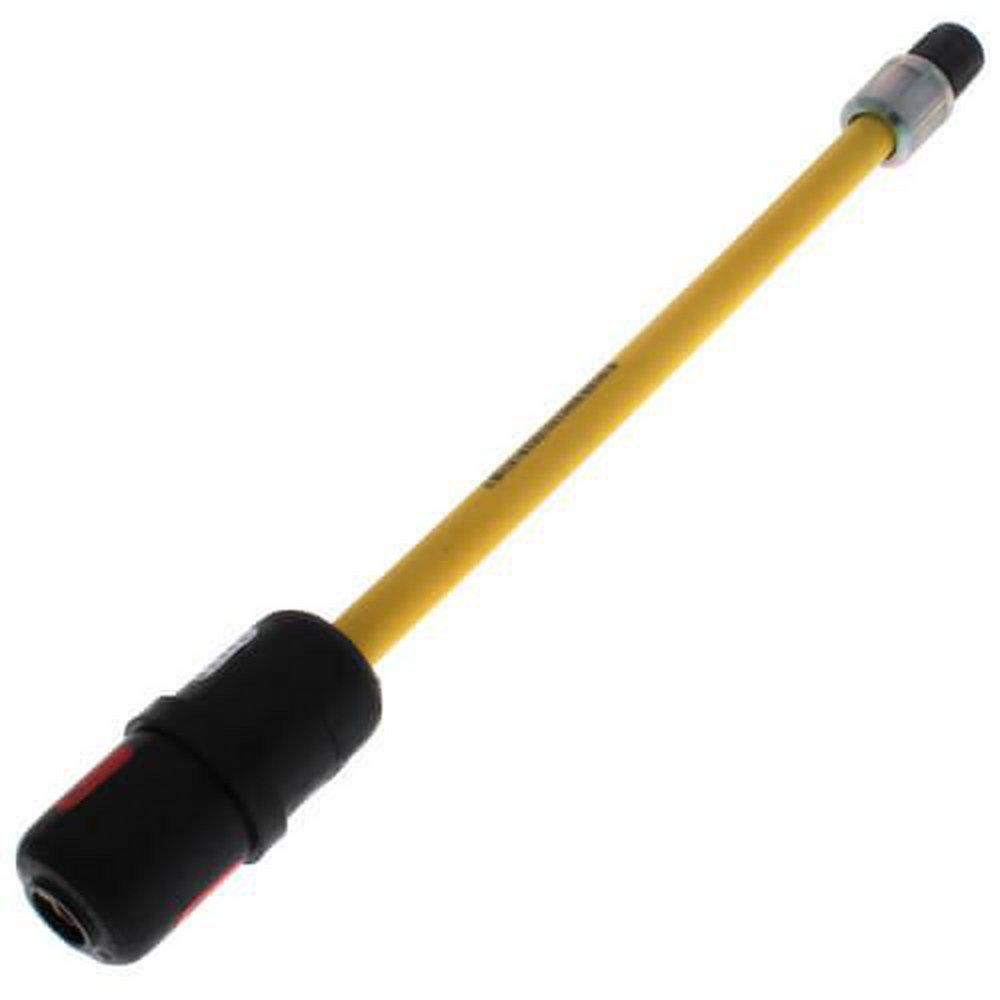

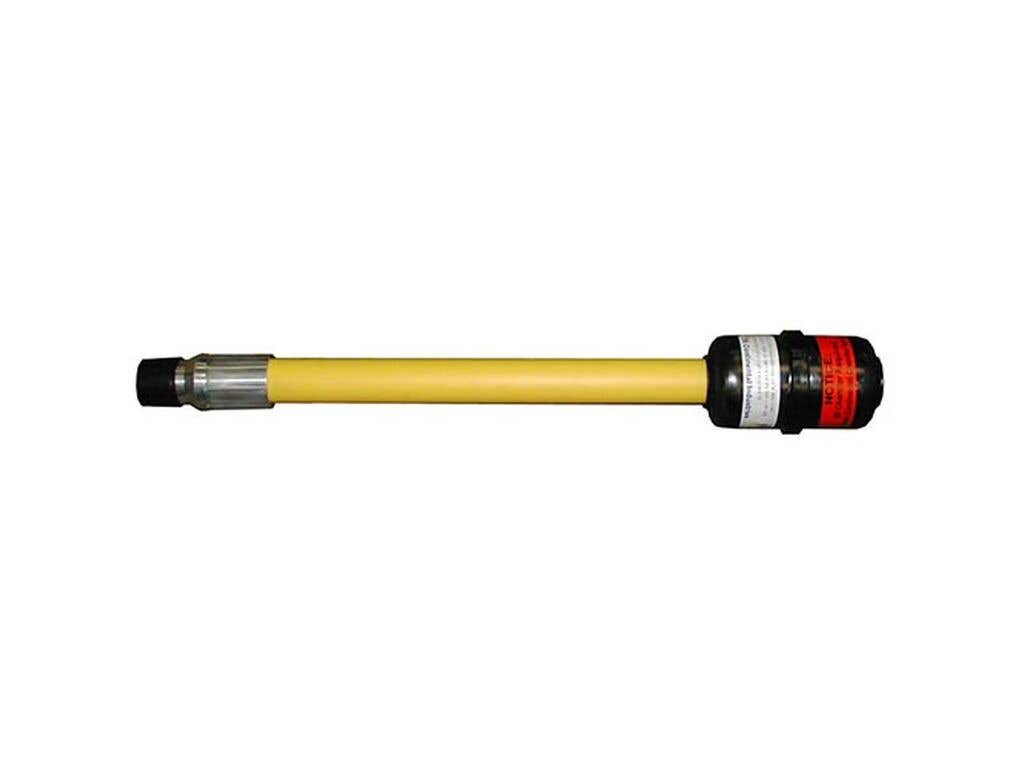

Wal-Rich 2885002 Underground Gas Adapter Fitting 3/4 in IPS SDR 11 (3/4 in)

Product Description

Wal-Rich 2885002 is an underground gas adapter fitting that provides a straight Con-Stab connection to 3/4 in IPS male threaded piping for SDR-11 polyethylene pipe. The fitting uses a medium density polyethylene body with zinc dichromate plated steel reinforcement and Continental patented ID seal, intended for underground gas, propane, and plumbing applications, and meets multiple industry standards and approvals.

• Connection: IPS CON-STAB x male threaded; nominal size 3/4 in IPS; SDR-11 compatible
• Construction: Medium density polyethylene body (PE) with zinc dichromate plated steel stiffener; steel length 5 in; overall length 19.25 in
• Ratings and approvals: 125 PSI pressure rating; temperature range -20 to 140 Deg F; meets CSA, ICC, cUPC, IAPMO, ASME B31.8, NFPA 54/58, ASTM D2513, ISO 9001

Product Highlights

3/4 in IPS Con-Stab male adapter for SDR-11 PE pipe; 125 PSI; -20 to 140 Deg F; 19.25 in overall length with 5 in steel reinforcement; Continental patented ID seal; made in USA

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2885002
• Country of Origin: USA

Technical Specifications

• Brand: Wal-Rich
• Manufacturer Part Number: 2885002
• Product Name: Underground Gas Adapter Fitting
• Type: Straight, Male
• Size: 3/4 in IPS
• Pipe SDR: SDR-11
• End Connection: IPS CON-STAB x Male Threaded
• Material: Medium density polyethylene (PE) with zinc dichromate plated steel stiffener
• Steel Length: 5 in
• Overall Length: 19.25 in
• Finish: Yellow
• Pressure Rating: 125 PSI
• Temperature Range: -20 to 140 Deg F
• Intended Use: For underground polyethylene (PE) pipe (ASTM D2513); plumbing, gas, propane
• Seal: Continental patented ID seal
• Installation Note: Chamfer the inside of pipe; use Continental chamfer tool
• Approvals and Standards: CSA, ICC, cUPC, IAPMO, ASME B31.8, NFPA 54/58, ASTM D2513, ISO 9001
• Country of Origin: Made in USA
