Wal-Rich 2882010 2 IPS Con-Stab Elbow SDR-11

Product Description

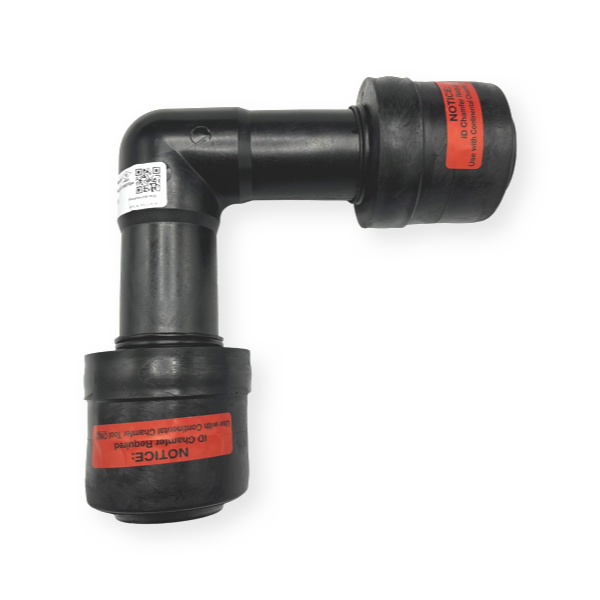

The Wal-Rich 2882010 is a two-inch IPS Con-Stab elbow designed for underground applications. It is suited for use with SDR-11 pipe and incorporates the Continental ID seal technology.

• Facilitates smooth transitions in piping systems.
• Compatible with underground PE pipe (ASTM D 2513).
• Made in the USA and IAPMO, CSA, and ICC approved.

Product Highlights

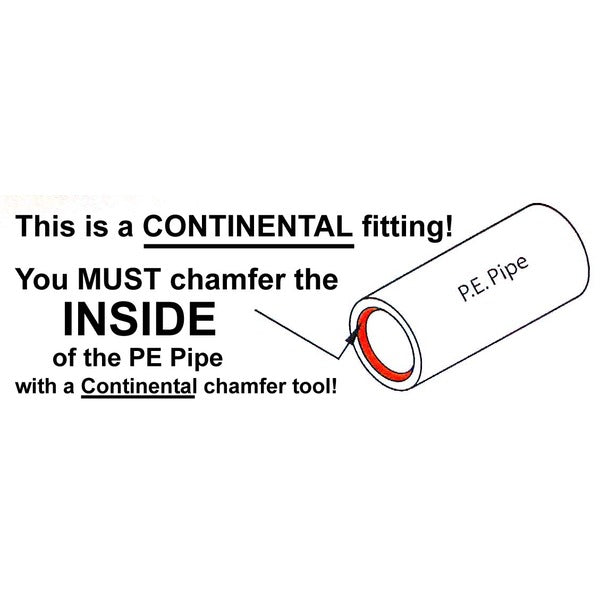

This product should be installed by a licensed gas fitter. It is specifically for outdoor, underground use. Consult local code officials for further information. The assembly requires the Continental chamfer tool which is sold separately.

Product Information

Standard Information

• Brand: Wal-Rich
• MPN: 2882010

Technical Specifications

• Size: 2 inches
• Max Temperature: 140 degrees Fahrenheit
• Min Temperature: -20 degrees Fahrenheit
• Max Pressure: 125 psi
• Wall Thickness: SDR-11
• Weight: 3.6 pounds
• Shipping Dimensions: 10 x 10 x 4 inches
