Wal-Rich 2882008 1-1/2 IPS Con-Stab Elbow SDR-11

Product Description

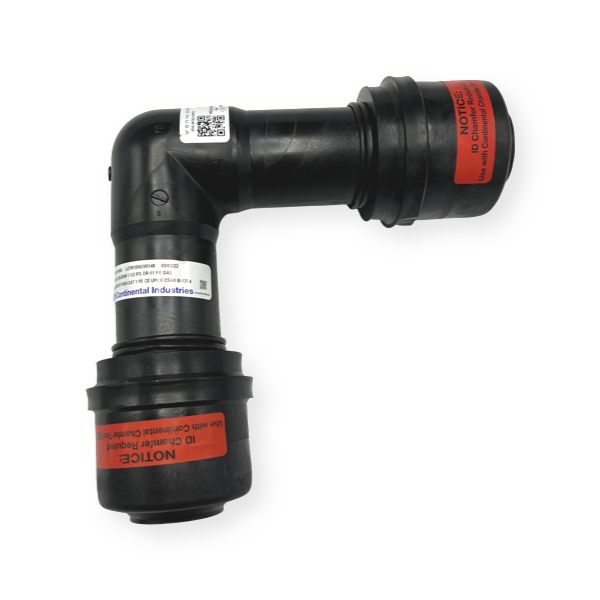

The Wal-Rich 2882008 1-1/2 IPS Con-Stab Elbow SDR-11 is a fitting designed for underground gas applications. It is made from durable materials to ensure long-lasting performance. The product requires installation by a licensed gas fitter and is suitable for outdoor use. This elbow fitting helps in connecting two segments of pipe at an angle. It has been widely used in the gas, plumbing, and propane markets since 1990.

• For underground PE pipe (ASTM D 2513) only
• Temperature range of -20 degrees to 140 degrees Fahrenheit
• Approved by IAPMO, CSA, and ICC

Product Highlights

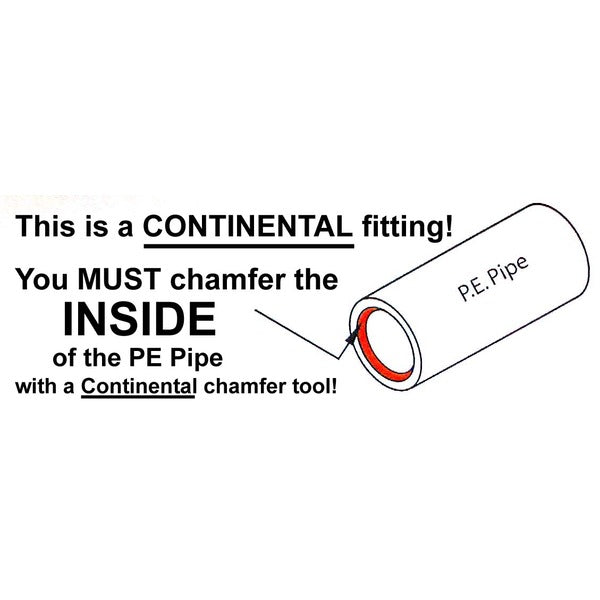

This elbow fitting features a patented ID Seal, ensuring a secure connection in underground settings. It requires the use of a chamfer tool, which is sold separately.

Product Information

Standard Information

• Brand: Wal-Rich
• MPN: 2882008

Technical Specifications

• Size: 1-1/2 inches
• Wall Thickness: SDR-11
• Max Temperature: 140 degrees Fahrenheit
• Min Temperature: -20 degrees Fahrenheit
• Max Pressure: 125 psi
• Weight: 2.9 pounds
