Wal-Rich 2864020 gas appliance 1/2 FIP x 1/2 quick connect female

Product Description

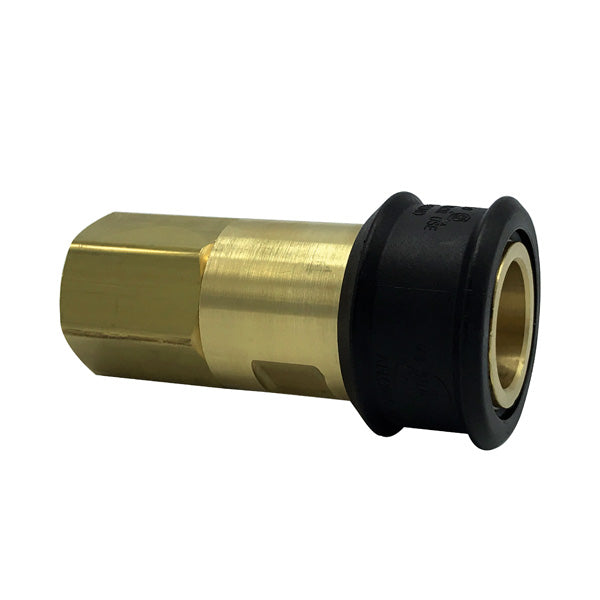

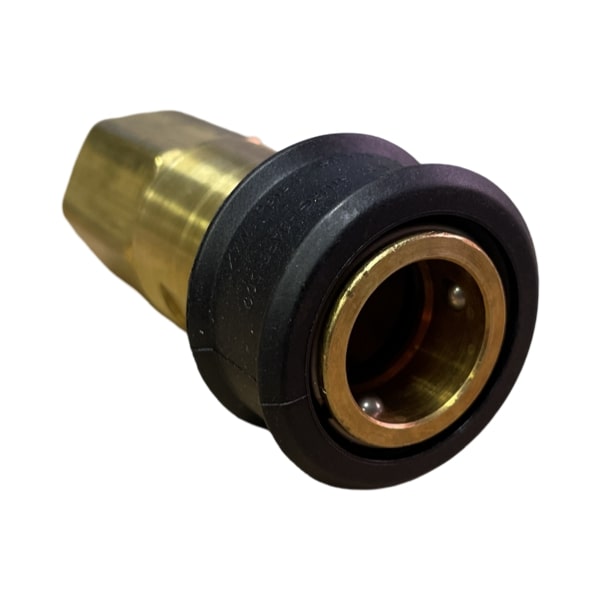

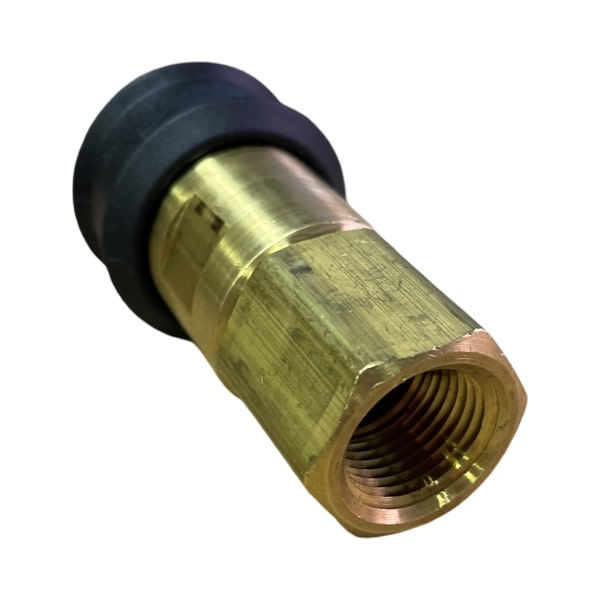

The WAL-RICH 2864020 is a gas appliance fitting designed for secure connections. This 1/2 inch FIP x 1/2 inch quick connect female fitting is suitable for various gas applications. It operates at a maximum pressure of 1/2 PSI and can withstand temperatures from -40 to 250 degrees Fahrenheit. The fitting ensures a maximum flow capacity of 60,000 BTU at a 0.3 W.C. PSI drop, providing efficient gas transfer.

• Features a 1/2 inch FIP (Female Iron Pipe) connection and a 1/2 inch quick connect female end.
• Designed for gas appliance applications with an operating pressure of 1/2 PSI.
• Withstands temperatures ranging from -40 to 250 degrees Fahrenheit.

Product Highlights

Gas appliance fitting with 1/2 inch FIP and 1/2 inch quick connect female ends, rated for 1/2 PSI and -40 to 250°F.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2864020

Technical Specifications

• Brand: WAL-RICH
• MPN: 2864020
• Operating Pressure: 1/2 PSI
• Operating Temperature: -40 to 250 Degrees Fahrenheit
• Maximum Flow Capacity: 60,000 BTU at 0.3 W.C. PSI Drop
• Connection Type: 1/2 inch FIP x 1/2 inch Quick Connect Female
