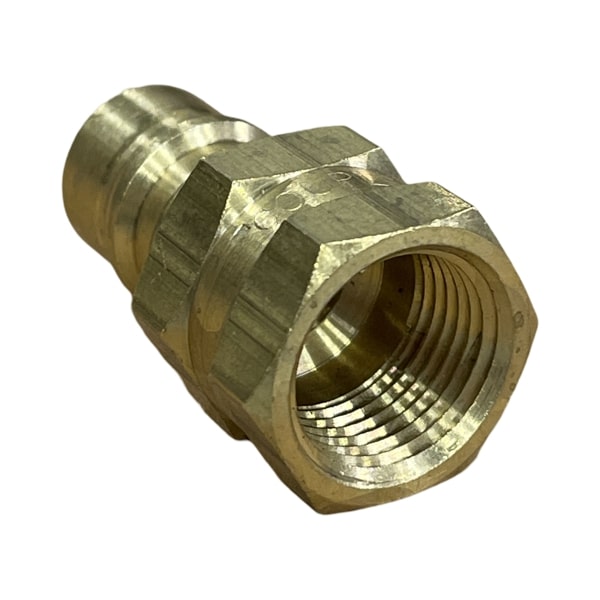

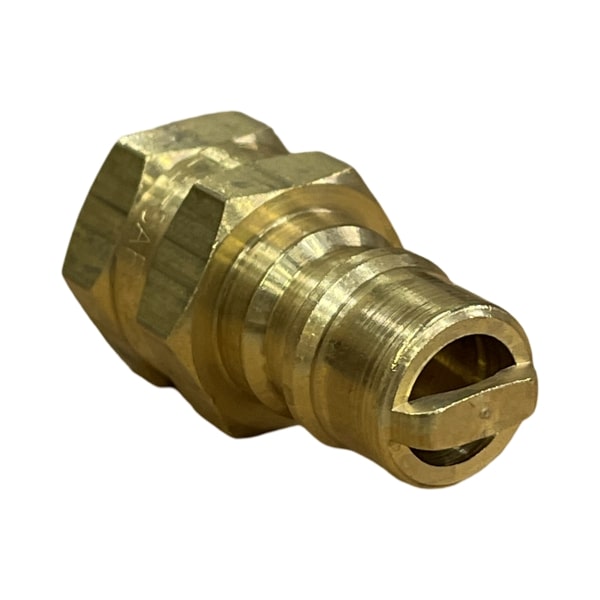

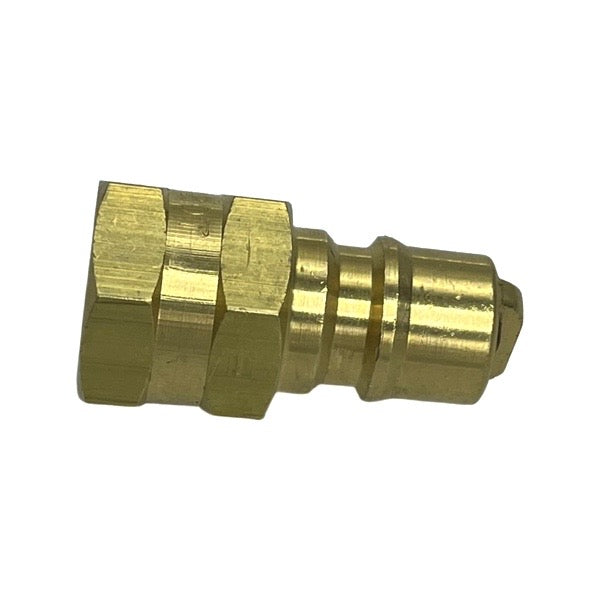

Wal-rich 2864004 Gas Appliance 3/8 Fip X 3/8 Male Quick-connect Fitting

Product Description

The WAL-RICH 2864004 is a gas appliance connector fitting designed for quick and reliable connections in residential and light commercial gas supply lines. It features a 3/8 inches female iron pipe (FIP) inlet on one end and a 3/8 inches male quick-connect outlet on the other. This type of fitting is commonly used by plumbers, gas fitters, and HVAC technicians when connecting gas appliances such as ranges, dryers, water heaters, and furnaces to existing supply lines. The male quick-connect end allows for fast tool-free attachment to compatible quick-connect shut-off valves, reducing installation time and the potential for connection errors. The FIP end threads onto standard iron pipe or compatible fittings using a wrench, creating a secure, leak-resistant joint when sealed with approved gas thread sealant. The WAL-RICH 2864004 is rated for an operating pressure of 1/2 PSI, which is standard for low-pressure natural gas and propane distribution systems found in most residential and light commercial applications. It handles temperatures ranging from -40 to 250 degrees Fahrenheit, making it suitable for both indoor and outdoor installations across a wide range of climate conditions. The maximum flow capacity is 60,000 BTU at 0.3 inches water column PSI drop, providing sufficient gas flow for most standard home appliances. At approximately 0.085 pounds, this fitting is compact and lightweight, making it easy to handle in tight spaces. It is sold individually and is a straightforward replacement or new-installation component for gas supply systems requiring a quick-connect transition from a threaded FIP connection.

• 3/8 inches FIP inlet threads onto standard iron pipe fittings for a secure, wrench-tight connection
• 3/8 inches male quick-connect outlet allows fast, tool-free attachment to compatible quick-connect gas valves
• Rated for 60,000 BTU maximum flow capacity at 0.3 inches water column PSI drop, suitable for most residential gas appliances

Product Highlights

The WAL-RICH 2864004 provides a reliable low-pressure gas connection between a threaded FIP line and a quick-connect appliance fitting, rated for temperatures from -40 to 250 degrees Fahrenheit and up to 60,000 BTU flow capacity.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2864004

Technical Specifications

• Size: 3/8 inches FIP x 3/8 inches Male Quick-Connect
• Operating Pressure: 1/2 PSI
• Temperature Range: -40 to 250 degrees Fahrenheit
• Maximum Flow Capacity: 60,000 BTU at 0.3 W.C. PSI Drop
• Weight: 0.085 pounds
• Quantity Per Package: 1
