Wal-Rich 2822204 Dresser 4 inches X 12.5 inches Style 360 Clamp for Ductile Iron Pipe

Product Description

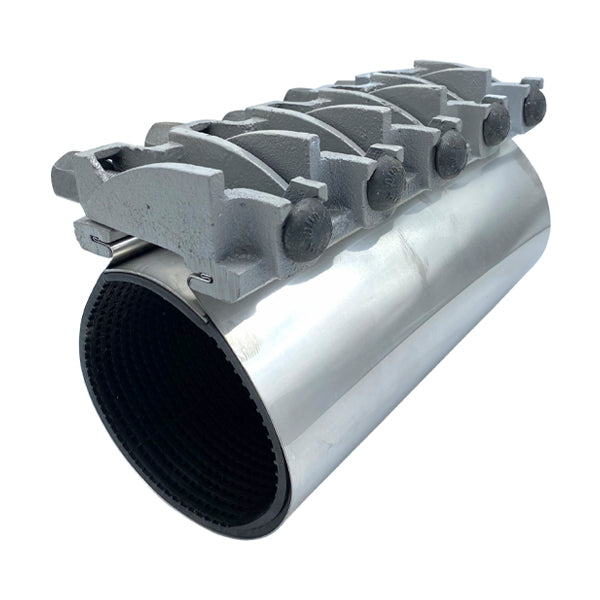

The WAL-RICH 2822204 Dresser Style 360 Clamp is designed for ductile iron pipe applications, featuring a 4-inch diameter and an overall length of 12.5 inches. This clamp provides a secure connection with a T-304 stainless steel band and E-coated ductile iron lugs. It is suitable for systems operating up to 170 PSI and temperatures up to 150 degrees F, utilizing Plain Grade 27 Gridded Gasketing for effective sealing. This clamp is ideal for pipe repair and maintenance.

• Features a T-304 stainless steel band for durability.
• Equipped with E-coated ductile iron lugs for corrosion resistance.
• Designed for ductile iron pipes, accommodating pressures up to 170 PSI.

Product Highlights

Durable clamp for ductile iron pipe repair, featuring stainless steel and E-coated components.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2822204

Technical Specifications

• Dresser Part Number: 0360-0474-210
• Overall Length: 12.5 inches
• Gasketing Type: Plain Grade 27 Gridded Gasketing
• Band Material: T-304 Stainless Steel
• Lugs Material: E-Coated Ductile Iron
• Maximum Pressure: 170 PSI
• Maximum Temperature: 150 Degrees F
