Wal-Rich 2822006 Dresser 6 in x 12.5 in Style 360 Clamp for Steel Pipe (6 in x 12.5 in) 0360-0656-210

Product Description

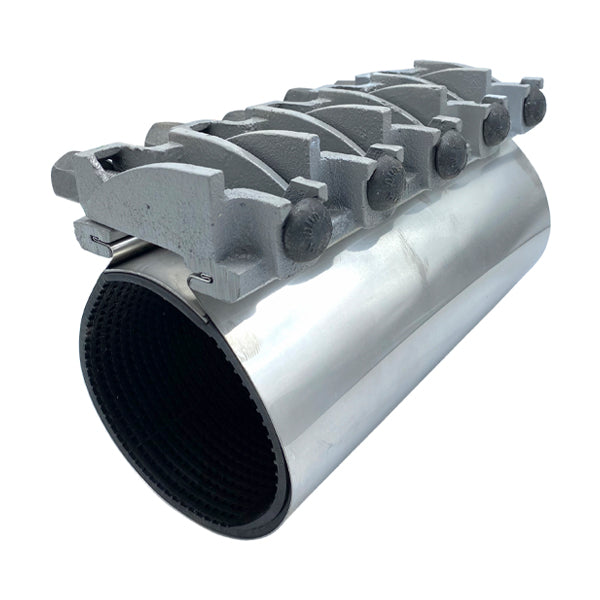

Wal-Rich 2822006 is a full-circle Style 360 repair clamp for steel pipe designed for 6-inch diameter lines with a 12.5-inch overall length. The clamp features a T-304 stainless steel band, e-coated ductile iron lugs, and plain Grade 27 gridded gasketing. It is rated to 200 PSI maximum pressure and 150 °F maximum temperature, intended for pipe repair applications and compatible with Dresser part 0360-0656-210.

• T-304 stainless steel band with e-coated ductile iron lugs and plain Grade 27 gridded gasketing
• Rated to 200 PSI maximum pressure and 150 °F maximum operating temperature for pipe repair
• Designed for 6 in pipe diameter with 12.5 in overall length; Dresser reference 0360-0656-210

Product Highlights

Full-circle Style 360 repair clamp; T-304 stainless band; 200 PSI / 150 °F rating

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2822006

Technical Specifications

• Brand: Wal-Rich
• MPN: 2822006
• Manufacturer: Dresser
• Dresser Number: 0360-0656-210
• Clamp Style: Full-circle Style 360
• Pipe Diameter: 6 inches
• Overall Length: 12.5 inches
• Band Material: T-304 stainless steel
• Lug Material/Finish: E-coated ductile iron
• Gasketing: Plain Grade 27 gridded gasketing
• Maximum Pressure: 200 PSI
• Maximum Temperature: 150 °F
• Weight: 18 lbs
