Wal-Rich 2817062 Dresser Handiband Repair Clamp 3-1/2 inches x 6 inches

Product Description

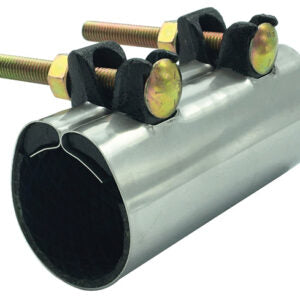

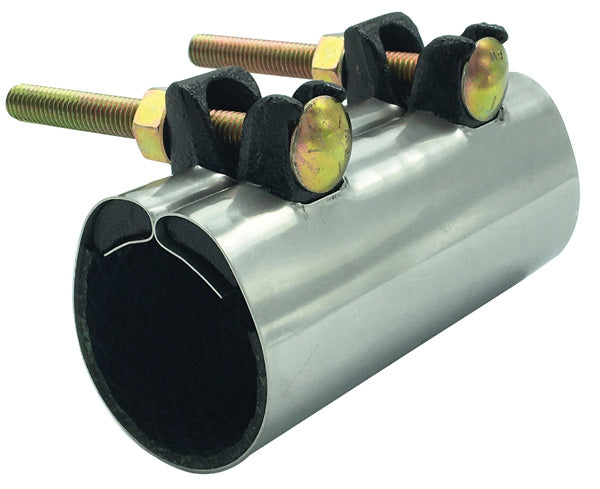

The WAL-RICH 2817062 Dresser Style 118 Handiband Clamp is a field-proven, low-cost band-type repair clamp designed for quick repair of small leaks and holes in steel piping. It features stainless steel construction for corrosion resistance and a large gasket for complete and permanent sealing. The clamp is easy to install and offers superior resistance to oils, aromatic and aliphatic hydrocarbons, gasoline, and condensates.

• Field-proven design ensures reliable performance for pipe repairs.
• Low-cost band-type clamp provides quick and effective solutions for small leaks in steel piping.
• Stainless steel construction combined with a specialized gasket offers corrosion resistance and chemical compatibility.

Product Highlights

This Dresser Style 118 Handiband Clamp provides a fast, easy, and permanent solution for repairing leaks in steel pipes, featuring durable stainless steel and a chemical-resistant gasket.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2817062

Technical Specifications

• Size: 3-1/2" x 6"
• Material: Ductile Iron, Alloy Steel, Stainless Steel
• Band Material: Stainless Steel 18-8, Type 304
• Lug Material: Ductile Iron ASTM 536
• Bolts & Nuts Material: Alloy to ANSI A21.11
• Gasket Material: Gridded to Dresser Specs
• Dresser Number: 0118-0319-009
• Overall Length: 6 inches
• Gasketing Type: Plain Grade 27 Gridded
• Max Pressure: 150 PSI
• Max Temperature: 150 Degrees F
• Type: Dresser Coupling
• Style: 118
