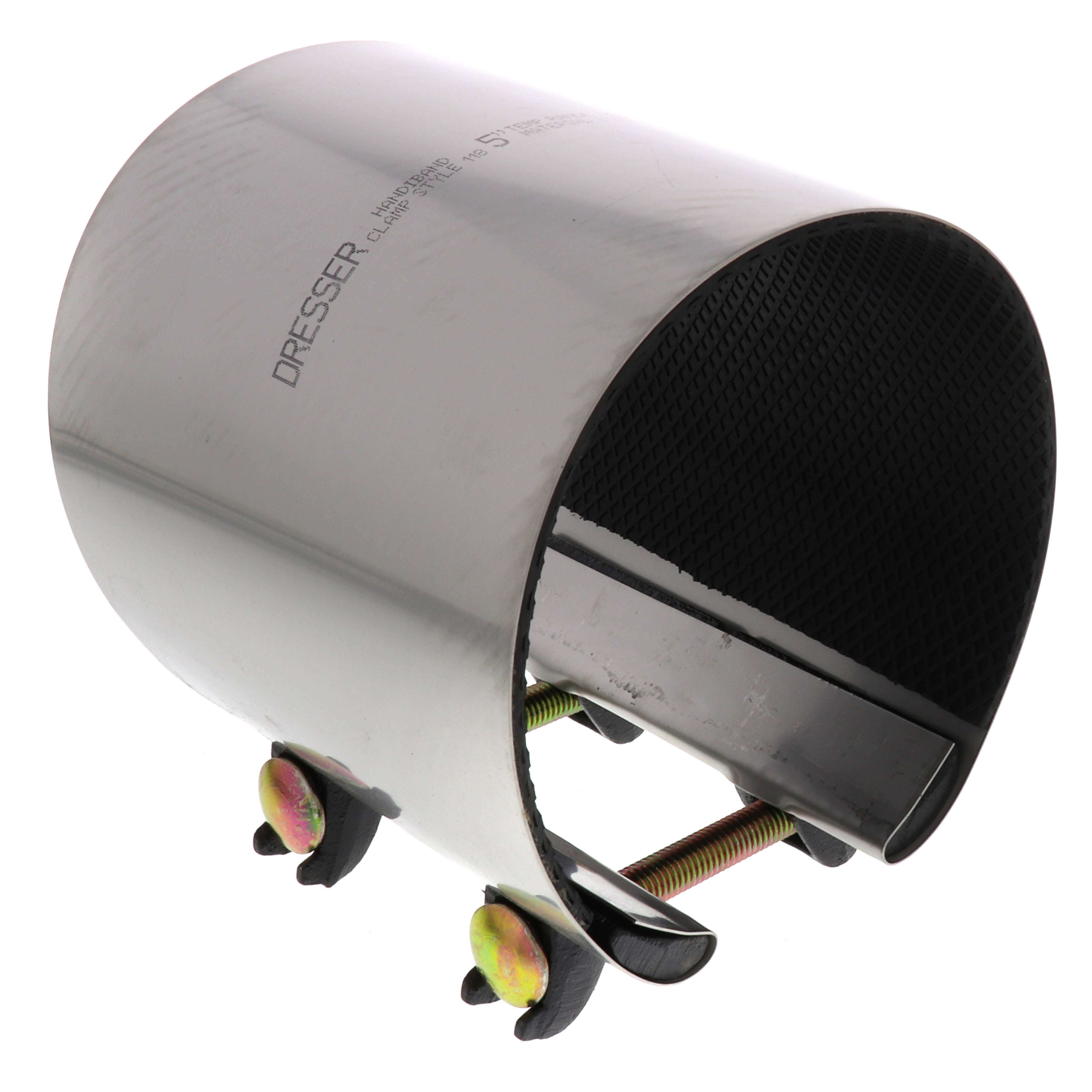

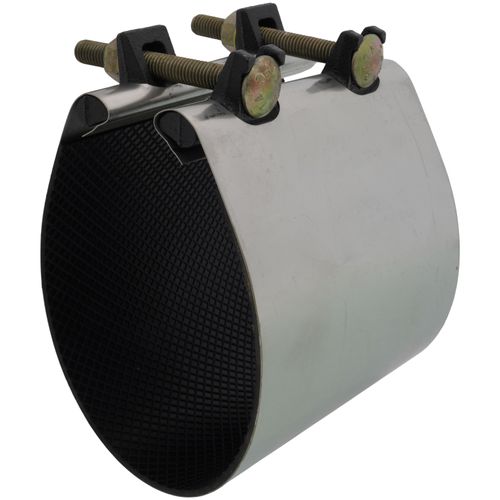

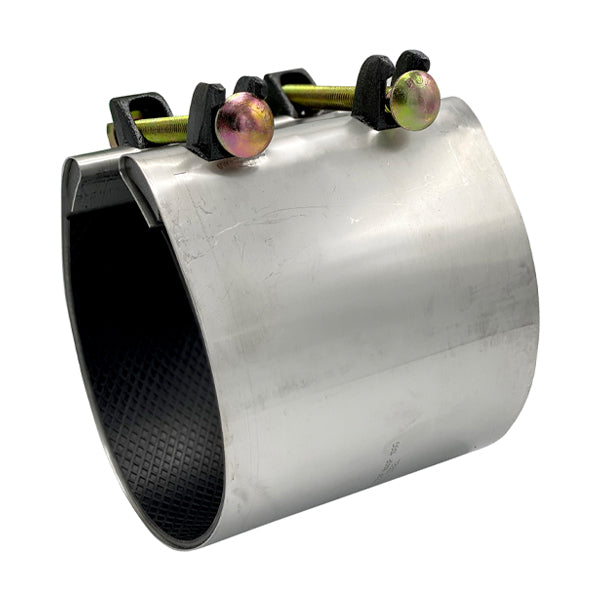

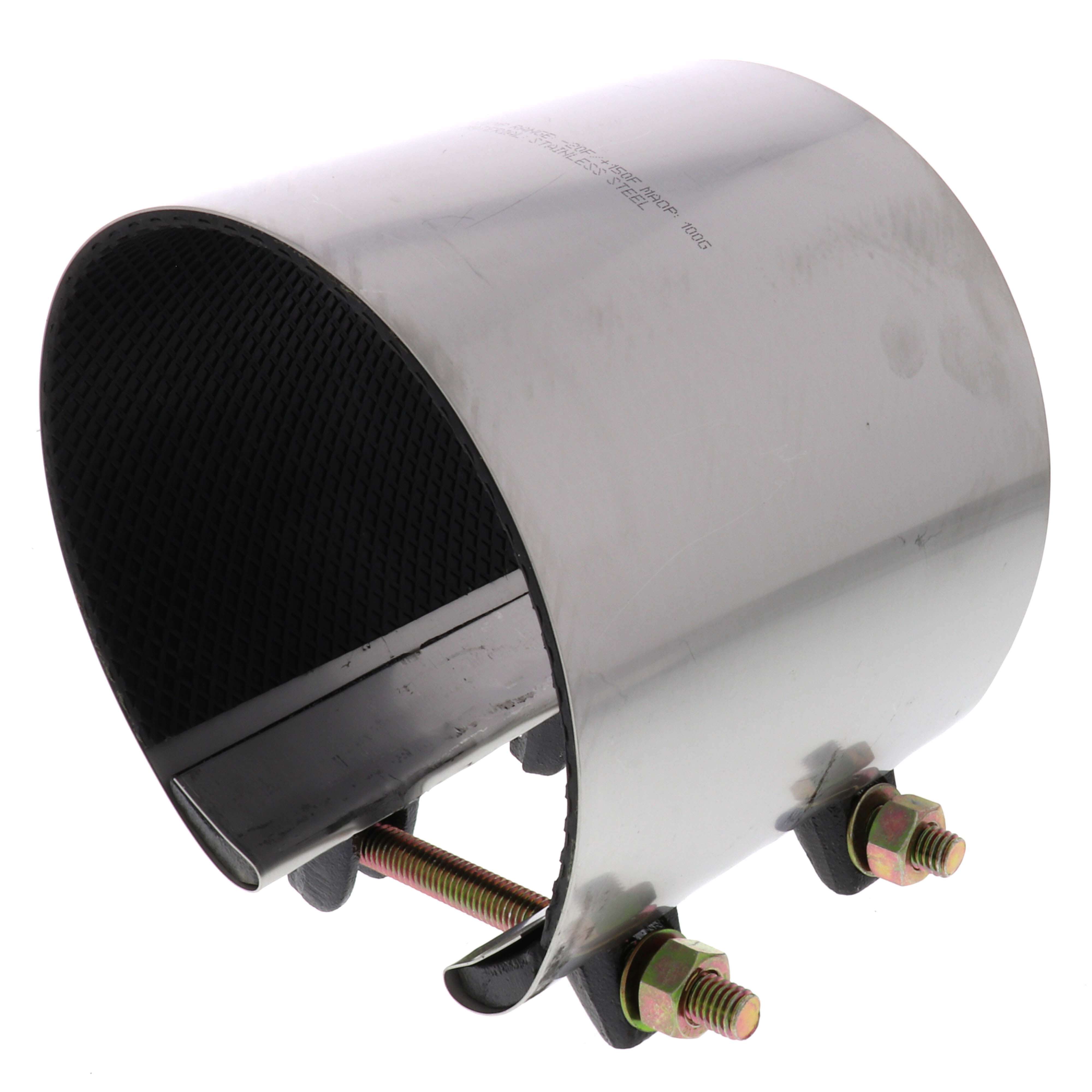

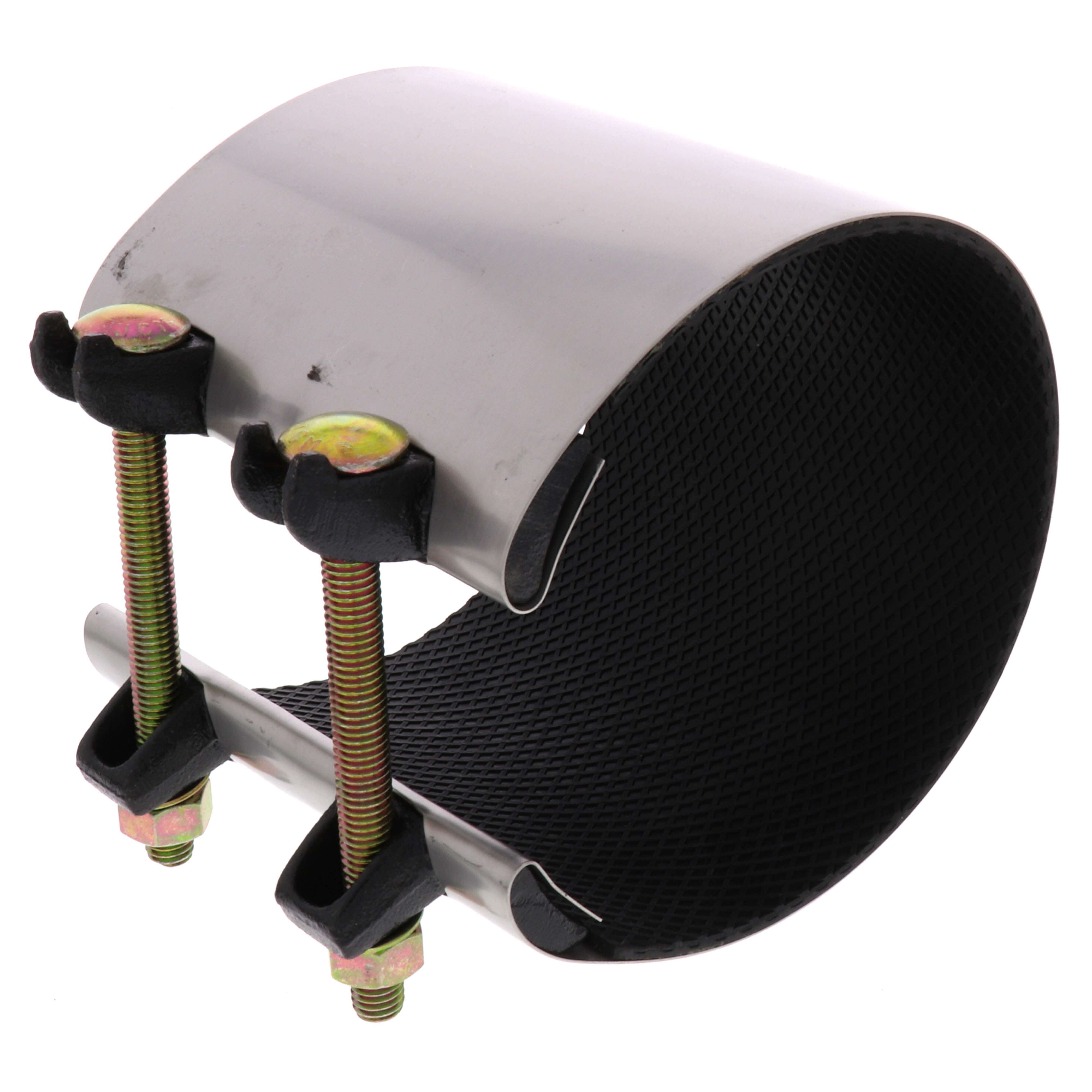

Wal-Rich 2817050 5 inches x 6 inches stainless steel dresser handiband repair clamp

Product Description

The WAL-RICH 2817050 is a field-proven, low cost band-type repair clamp designed for quick repair of small leaks and holes in steel piping. This 5" x 6" stainless steel clamp ensures fast, easy, and foolproof installation. Its large size gasket provides a complete and permanent seal. The Handiband clamp is constructed from stainless steel for corrosion resistance, and its rubber compound gasket offers superior resistance to oils, aromatic and aliphatic hydrocarbons, gasoline, and condensates.

• Dresser rubber compound gasket offers superior resistance to oils, aromatic and aliphatic hydrocarbons, gasoline and condensates
• Fast, easy and foolproof installation
• Field-proven, low cost bandtype repair clamp

Product Highlights

Quick repair of small leaks and holes in steel piping with corrosion-resistant stainless steel construction.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2817050

Technical Specifications

• Size: 5" x 6"
• Material: Stainless Steel, Alloy Steel, Ductile Iron
• Band Material: Stainless Steel 18-8, Type 304
• Lugs Material: Ductile Iron ASTM 536
• Bolts & Nuts Material: Alloy to ANSI A21.11
• Gasket Material: Gridded to Dresser Specs
• Dresser Part Number: 0118-0324-009
• Overall Length: 6"
• Gasketing: Plain Grade 27 Gridded
• Maximum Pressure: 150 PSI
• Maximum Temperature: 150 Degrees F
