Wal-Rich 2817048 Dresser Style 118 Handiband Repair Clamp (5 inches x 3 inches)

Product Description

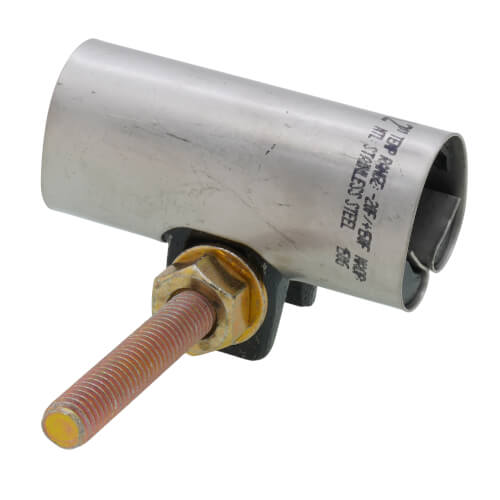

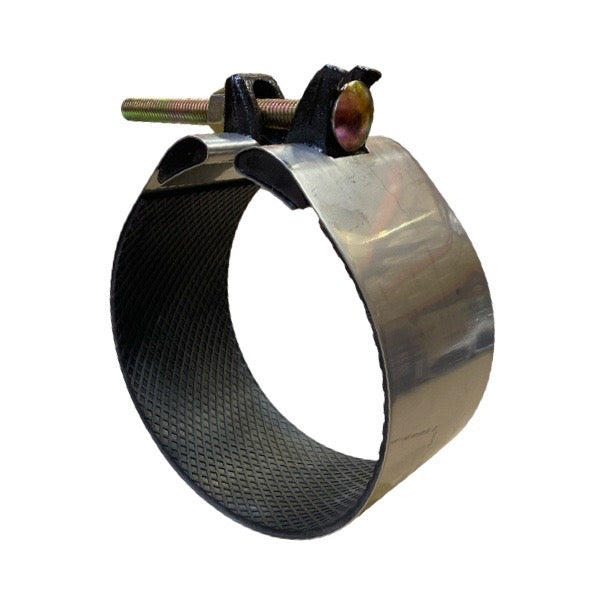

The Wal-Rich 2817048 is a Dresser Style 118 Handiband repair clamp designed for quick repair of small leaks and holes in steel piping. The stainless steel band (18-8, Type 304) and ductile iron lugs provide corrosion resistance while alloy bolts and nuts to ANSI A21.11 secure the assembly. A gridded Dresser rubber compound gasket compresses to seal against oils, hydrocarbons and gasoline. Rated to 150 PSI and 150 F.

• 5" x 3" Dresser Style 118 Handiband clamp with T-304 stainless steel band
• Ductile iron lugs and alloy bolts/nuts to ANSI A21.11 for mechanical strength
• Gridded Dresser rubber compound gasket resists oils, aromatic and aliphatic hydrocarbons and gasoline

Product Highlights

Band-type repair clamp for sealing small leaks in steel piping; stainless steel band, ductile iron lugs, gridded rubber gasket; rated 150 PSI, 150 F.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2817048

Technical Specifications

• Brand: Wal-Rich
• MPN: 2817048
• Product Type: Dresser Style 118 Handiband repair clamp
• Model / Dresser Coupling: 0118-0323-009
• Size: 5" x 3"
• Band Material: Stainless Steel 18-8, Type 304
• Lug Material: Ductile Iron (ASTM 536)
• Bolts & Nuts: Alloy to ANSI A21.11
• Gasket: Gridded Dresser rubber compound
• Materials: Stainless Steel; Ductile Iron; Alloy Steel
• Maximum Pressure: 150 PSI
• Maximum Temperature: 150 F
• Application: Repair clamp for small leaks and holes in steel piping
• Installation: Wrap band around pipe, drop bolts through slotted lugs, tighten nuts to compress gasket
