Wal-Rich 2817033 Dresser Handiband Repair Clamp 3 inches x 12 inches

Brand: WAL-RICH
SKU: 2817033
Availability: In Stock

Ships same day if ordered by 12 pm
$144.95
$144.95
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

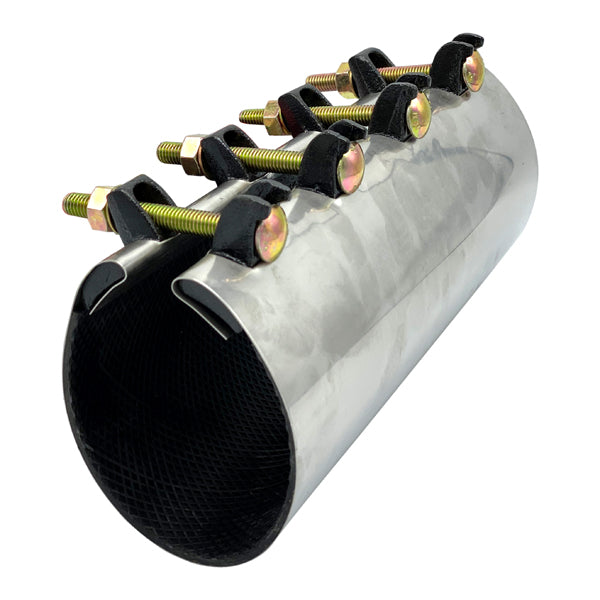

The Wal-Rich 2817033 Dresser Style 118 Handiband repair clamp is a stainless steel band-type clamp designed to seal small leaks and holes in steel piping. Installation requires wrapping the band around the pipe, inserting bolts through the slotted lugs, and tightening nuts to compress the large gridded gasket for a leak seal. The clamp uses a Type 304 stainless band, ductile iron lugs, and a Dresser rubber compound gasket.

  • Band: Stainless Steel 18-8 (Type 304); Lugs: Ductile Iron (ASTM 536); Bolts and nuts: Alloy to ANSI A21.11
  • Gasket: Gridded Dresser rubber compound (plain Grade 27) resistant to oils, aromatic and aliphatic hydrocarbons, gasoline and condensates
  • Performance: Rated to 150 PSI maximum pressure and 150 degrees F maximum temperature; size 3" x 12"

Product Highlights

Dresser Style 118 Handiband clamp, 3" x 12", Type 304 stainless band, gridded Dresser rubber gasket, rated 150 PSI/150�F

Product Information

Standard Information

  • Brand: WAL-RICH
  • Manufacturer Part Number: 2817033
Technical Specifications
Brand
Wal-Rich
MPN
2817033
Product Type
Dresser Style 118 Handiband repair clamp
Dresser Number
0118-0317-009
Size
3" x 12"
Overall Length
12"
Band Material
Stainless Steel 18-8 (Type 304)
Lugs Material
Ductile Iron (ASTM 536)
Bolts & Nuts Material
Alloy to ANSI A21.11
Gasket
Gridded Dresser rubber compound (Plain Grade 27 gridded gasketing)
Max Pressure
150 PSI
Max Temperature
150 degrees F
Weight (actual)
0.50 lb
Materials Summary
Stainless steel, ductile iron, alloy steel
Typical Application
Repair of small leaks and holes in steel piping
Installation Method
Wrap band around pipe, drop bolts through slotted lugs, tighten nuts to compress gasket
