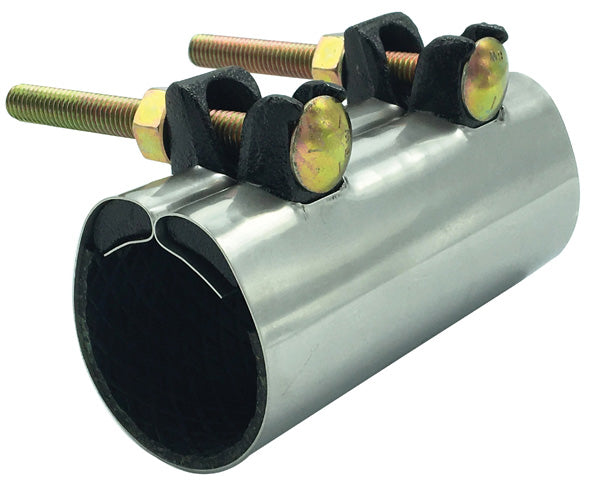

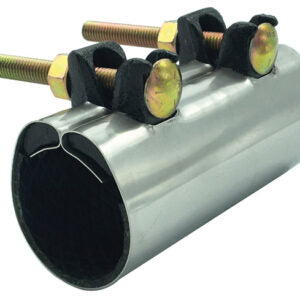

Wal-Rich 2817028 2-1/2 inches x 6 inches stainless steel dresser handiband repair clamp

Product Description

The WAL-RICH 2817028 is a field-proven, low-cost band-type repair clamp designed for quick repair of small leaks and holes in steel piping. Made of stainless steel for corrosion resistance, this clamp features a Dresser rubber compound gasket that offers superior resistance to oils, aromatic and aliphatic hydrocarbons, gasoline, and condensates. Its installation is fast, easy, and foolproof, ensuring a complete and permanent seal.

• Field-proven, low-cost band-type repair clamp for steel piping.
• Quick and foolproof installation for small leaks and holes.
• Stainless steel construction with a specialized gasket for corrosion and chemical resistance.

Product Highlights

Durable stainless steel repair clamp with chemical-resistant gasket for efficient pipe leak repair.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2817028

Technical Specifications

• MPN: 2817028
• Brand: WAL-RICH
• Size: 2-1/2" x 6"
• Material: Stainless Steel, Alloy Steel, Ductile Iron
• Accessories: 2817026, 2817032, 465096
• Dresser Part Number: 0118-0314-009
• Overall Length: 6"
• Gasketing Type: Plain Grade 27 Gridded Gasketing
• Band Material: T-304 Stainless Steel Band
• Lug Material: E-Coated Ductile Iron Lugs
• Max Pressure: 150 PSI
• Max Temperature: 150 Degrees F
• Bolts & Nuts Material: Alloy to ANSI A21.11
• Gasket Material: Gridded to Dresser Specs
