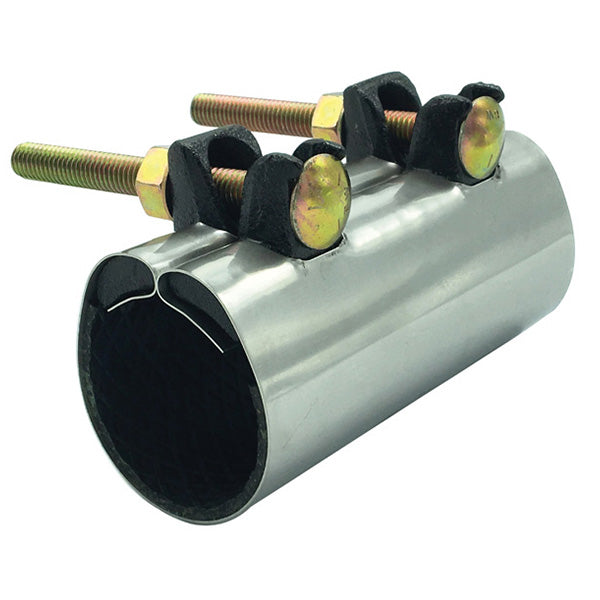

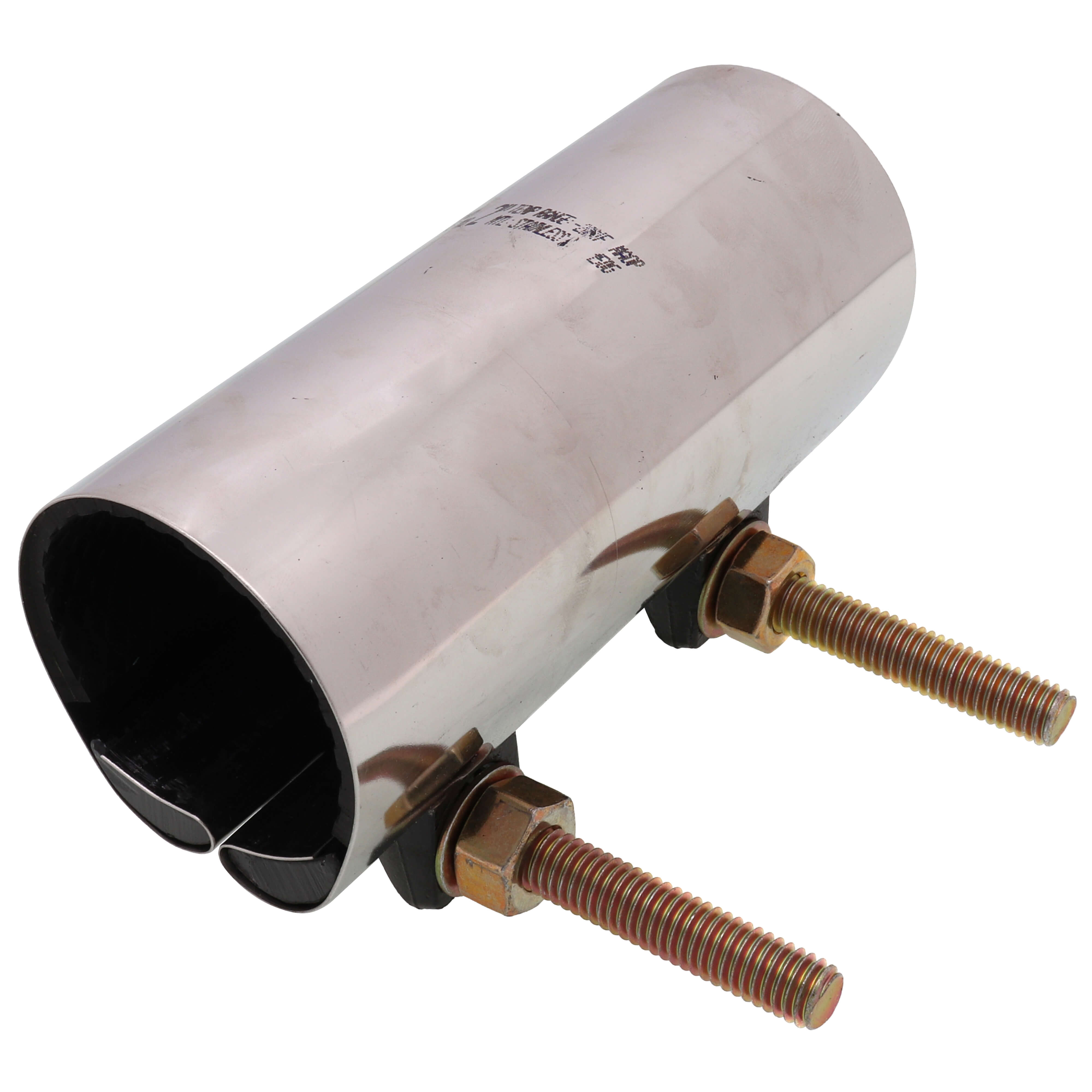

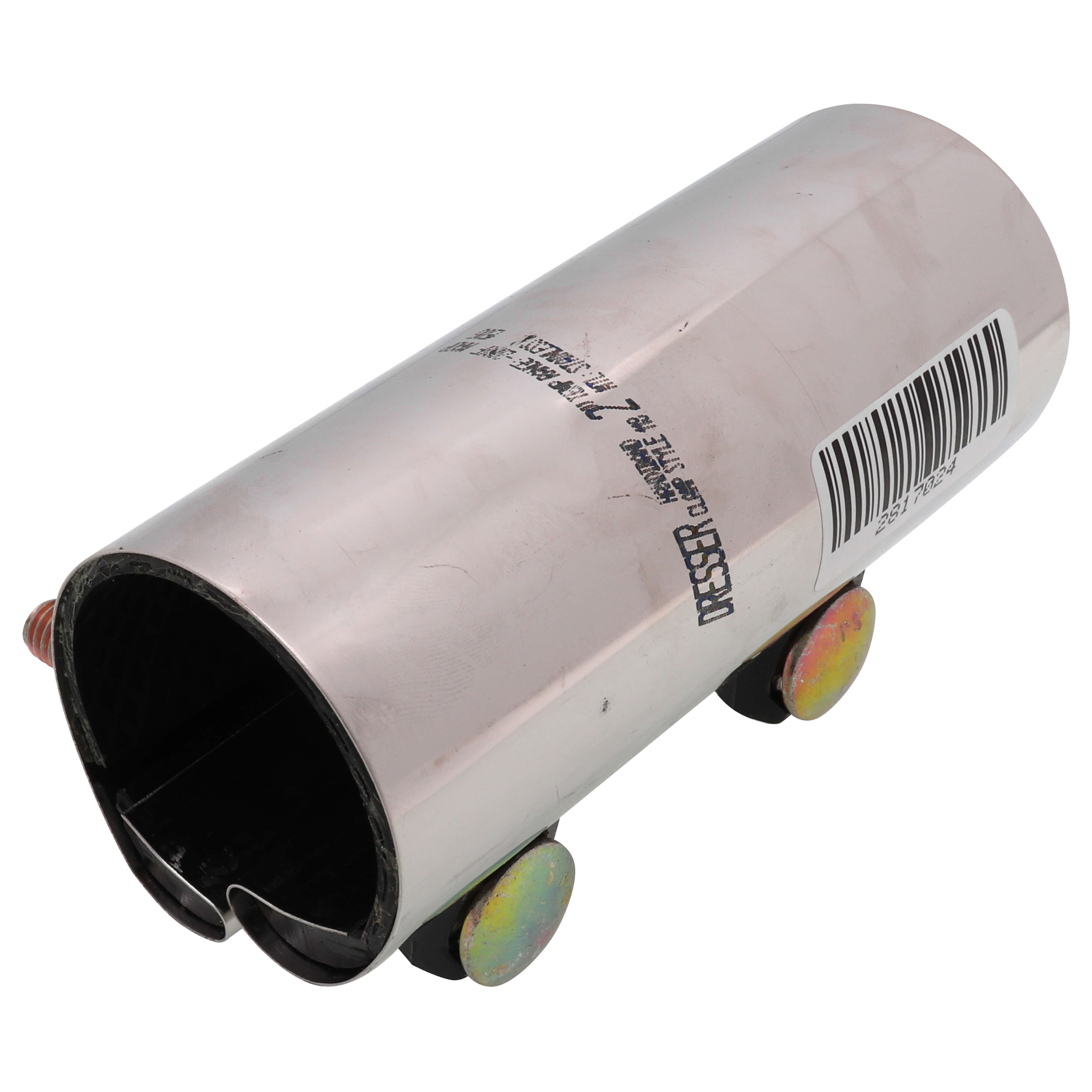

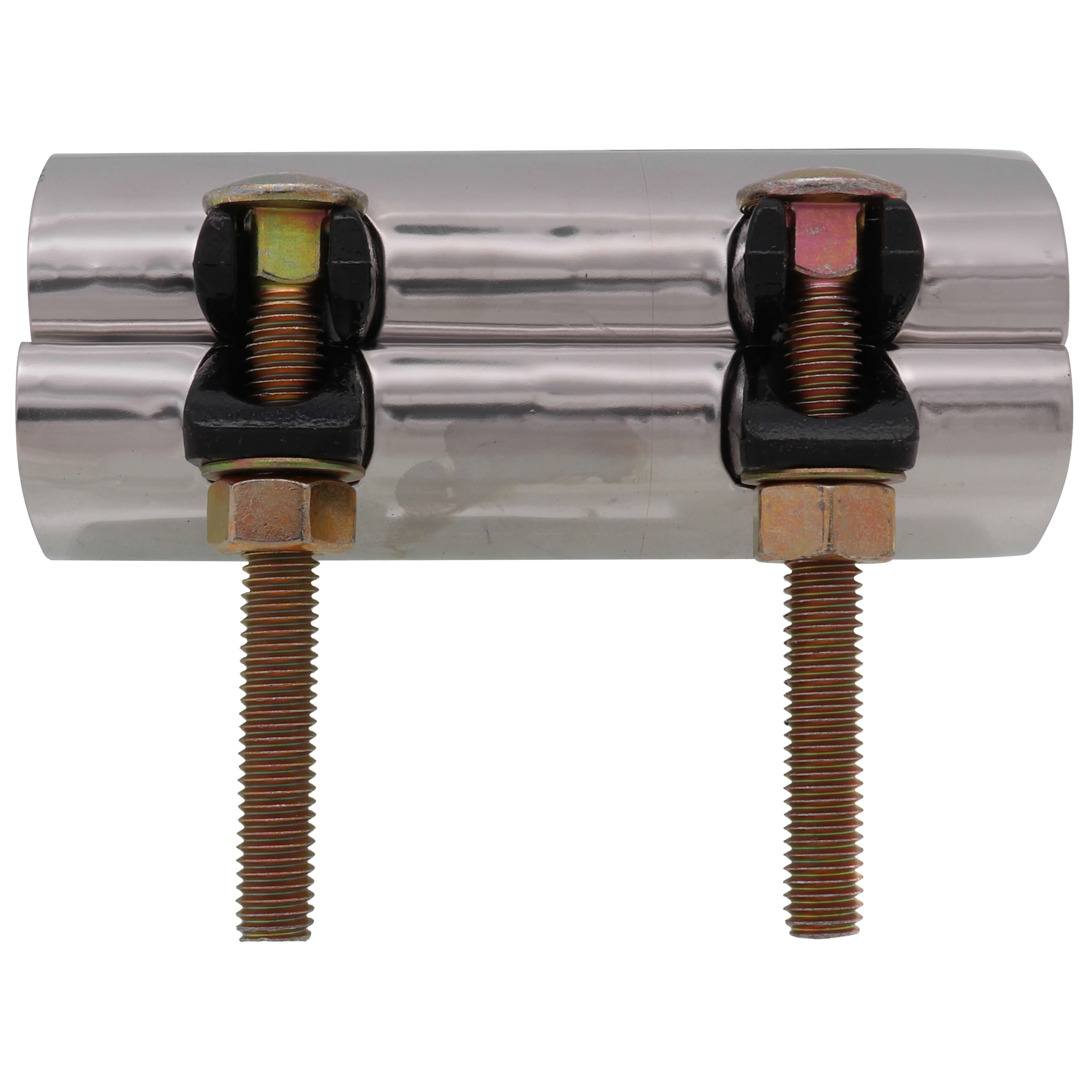

Wal-Rich 2817024 2 inches x 6 inches Stainless Steel Dresser Handiband Repair Clamp

Product Description

The WAL-RICH 2817024 is a 2" x 6" Dresser Style 118 Handiband repair clamp designed for quick and permanent sealing of small leaks and holes in steel piping. Constructed from Stainless Steel 18-8, Type 304 for the band and Ductile Iron ASTM 536 for the lugs, it offers corrosion resistance. The gridded gasket, resistant to oils, hydrocarbons, gasoline, and condensates, ensures a complete seal. Installation is fast and straightforward.

• Field-proven, low-cost band-type repair clamp for steel piping.
• Fast, easy, and foolproof installation process.
• Stainless Steel 18-8, Type 304 band and specialized gasket for corrosion and chemical resistance.

Product Highlights

Durable 2" x 6" stainless steel repair clamp with a chemical-resistant gasket, ideal for quick and permanent pipe leak repairs up to 150 PSI and 150 Degrees F.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2817024

Technical Specifications

• Brand: WAL-RICH
• MPN: 2817024
• Band Material: Stainless Steel 18-8, Type 304
• Lug Material: Ductile Iron ASTM 536
• Bolt and Nut Material: Alloy to ANSI A21.11
• Gasket Type: Gridded to Dresser Specs
• Dresser Model Number: 0118-0311-009
• Maximum Temperature: 150 Degrees F
• Maximum Pressure: 150 PSI
• Overall Length: 6"
• Size: 2" x 6"
