Wal-Rich 2817022 2 inches x 3 inches Stainless Steel Dresser Handiband Repair Clamp (2 inches x 3 inches) 0118-0310-009

Product Description

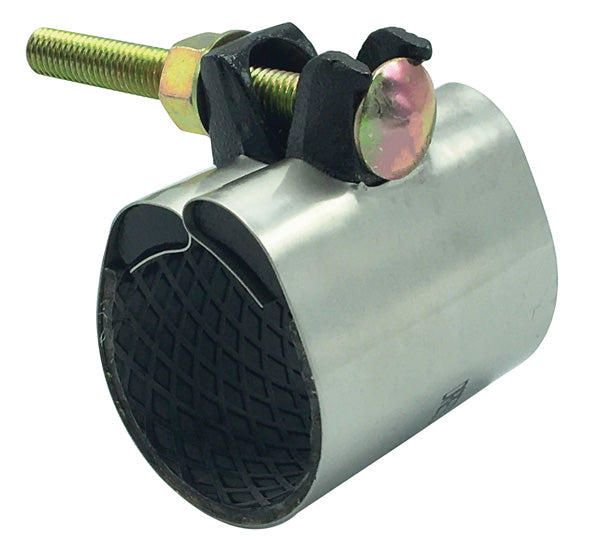

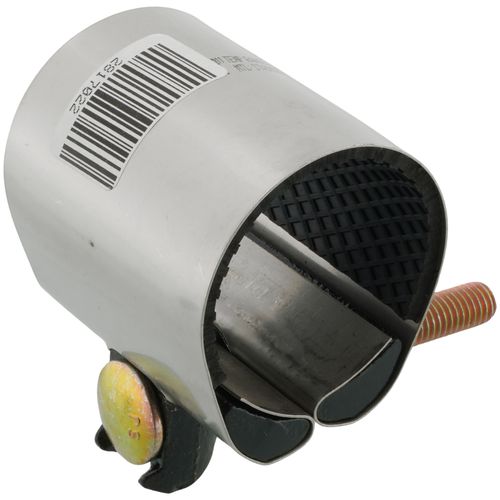

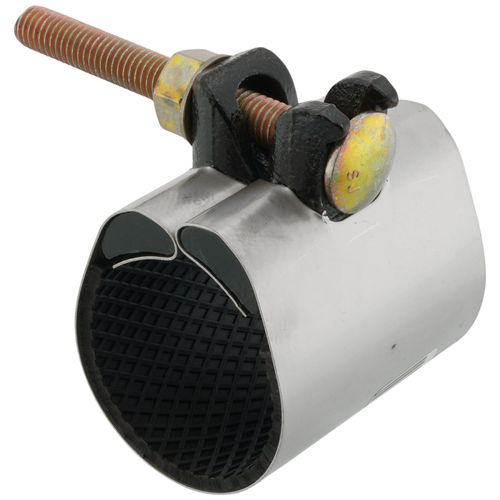

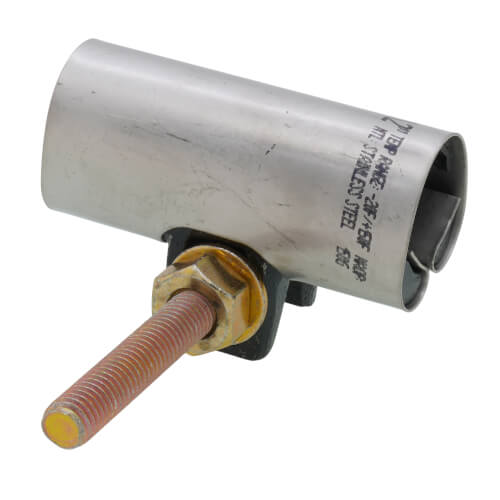

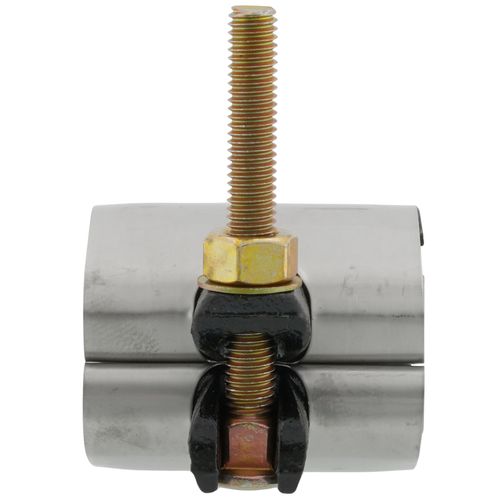

Wal-rich 2817022 is a 2" x 3" Dresser Style 118 Handiband repair clamp designed to seal small leaks and holes in steel piping. The clamp uses a T-304 stainless steel band, ductile iron lugs and alloy bolts with a gridded rubber gasket to compress and permanently seal the leak. Overall length is 3" and the assembly is rated to 150 PSI and 150 F for field repair and patch applications.

• T-304 stainless steel band with ductile iron ASTM 536 lugs and alloy bolts per ANSI A21.11
• Gridded rubber gasket resistant to oils, aromatic and aliphatic hydrocarbons, gasoline and condensates
• Rated for maximum working pressure of 150 PSI and maximum temperature of 150 F; overall length 3"

Product Highlights

Field-proven band-type pipe repair clamp with T-304 band, gridded gasketing, and 150 PSI/150 F rating.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2817022

Technical Specifications

• Brand: Wal-rich
• MPN: 2817022
• Alternate Part Number: 0118-0310-009
• Size: 2" x 3"
• Overall Length: 3"
• Category: Pipe Repair Clamps
• Band Material: Stainless Steel 18-8, Type 304 (T-304)
• Lugs Material: Ductile Iron ASTM 536
• Bolts and Nuts Material: Alloy to ANSI A21.11
• Gasket: Gridded rubber gasketing to Dresser specifications; resistant to oils, aromatic and aliphatic hydrocarbons, gasoline and condensates
• Maximum Pressure: 150 PSI
• Maximum Temperature: 150 F
• Weight: 1.1 lbs
• Materials: Ductile Iron, Alloy Steel, Stainless Steel
• Dresser Reference: Dresser coupling #0118-0310-009
