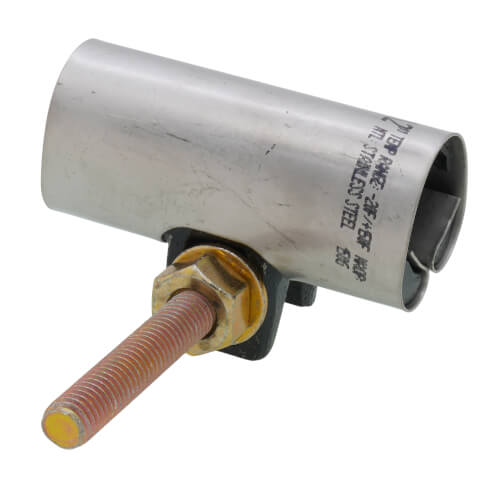

Wal-Rich 2817016 Dresser Handiband Repair Clamp 1-1/4 inches x 6 inches

Product Description

The WAL-RICH 2817016 is a Dresser Style 118 Handiband repair clamp designed for quick and permanent repair of small leaks and holes in steel piping. This 1-1/4" x 6" clamp features a Stainless Steel 18-8, Type 304 band, Ductile Iron ASTM 536 lugs, and Alloy to ANSI A21.11 bolts and nuts. Its gridded gasket, made to Dresser specifications, offers superior resistance to oils, aromatic and aliphatic hydrocarbons, gasoline, and condensates, ensuring a reliable seal.

• Field-proven, low cost band-type repair clamp for steel piping
• Fast, easy, and foolproof installation process
• Stainless steel construction provides corrosion resistance

Product Highlights

Effectively seals leaks and holes in steel piping with a durable, chemical-resistant gasket.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2817016

Technical Specifications

• Band Material: Stainless Steel 18-8, Type 304
• Lugs Material: Ductile Iron ASTM 536
• Bolts & Nuts Material: Alloy to ANSI A21.11
• Gasket Material: Gridded to Dresser Specs
• Size: 1-1/4" x 6"
• Dresser Part Number: 0118-0307-009
• Overall Length: 6"
• Max Pressure: 150 PSI
• Max Temperature: 150 Degrees F
