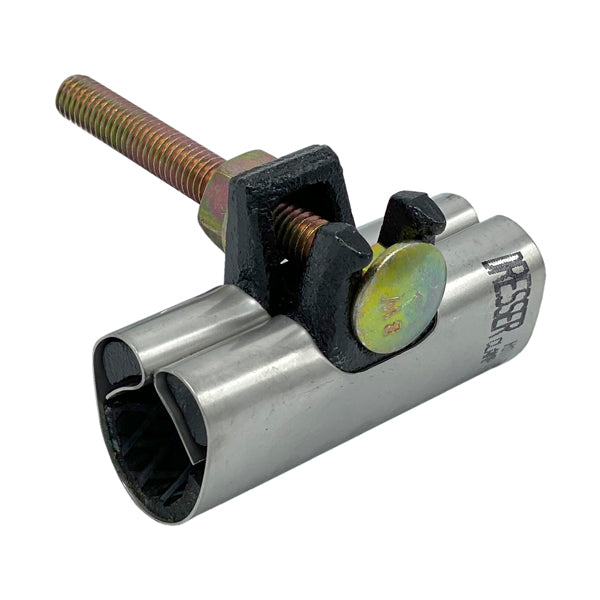

Wal-Rich 2817014 Dresser handiband repair clamp 1-1/4 inches x 3 inches

Product Description

The WAL-RICH 2817014 Dresser Handiband Repair Clamp is a field-proven, low-cost band-type solution for repairing small leaks and holes in steel piping. Constructed from stainless steel for corrosion resistance, it features a large gasket for complete and permanent sealing. The Dresser rubber compound gasket provides superior resistance to oils, hydrocarbons, gasoline, and condensates, ensuring durability in various applications.

• Field-proven, low cost band-type repair clamp for steel piping.
• Fast, easy, and foolproof installation process.
• Stainless steel construction ensures corrosion resistance.

Product Highlights

This WAL-RICH 2817014 clamp offers a durable, corrosion-resistant solution for quick and permanent pipe repairs.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2817014

Technical Specifications

• Band Material: Stainless Steel 18-8, Type 304
• Lugs Material: Ductile Iron ASTM 536
• Bolts & Nuts Material: Alloy to ANSI A21.11
• Gasket Material: Gridded to Dresser Specs
• Size: 1-1/4" x 3"
• Material: Stainless Steel, Ductile Iron, Alloy Steel
• Dresser Part Number: 0118-0306-009
• Overall Length: 3 inches
• Gasketing Type: Plain Grade 27 Gridded
• Maximum Pressure: 150 PSI
• Maximum Temperature: 150 Degrees F
