Wal-Rich 2817012 Stainless Steel Dresser Handiband Repair Clamp 1 inches x 6 inches

Product Description

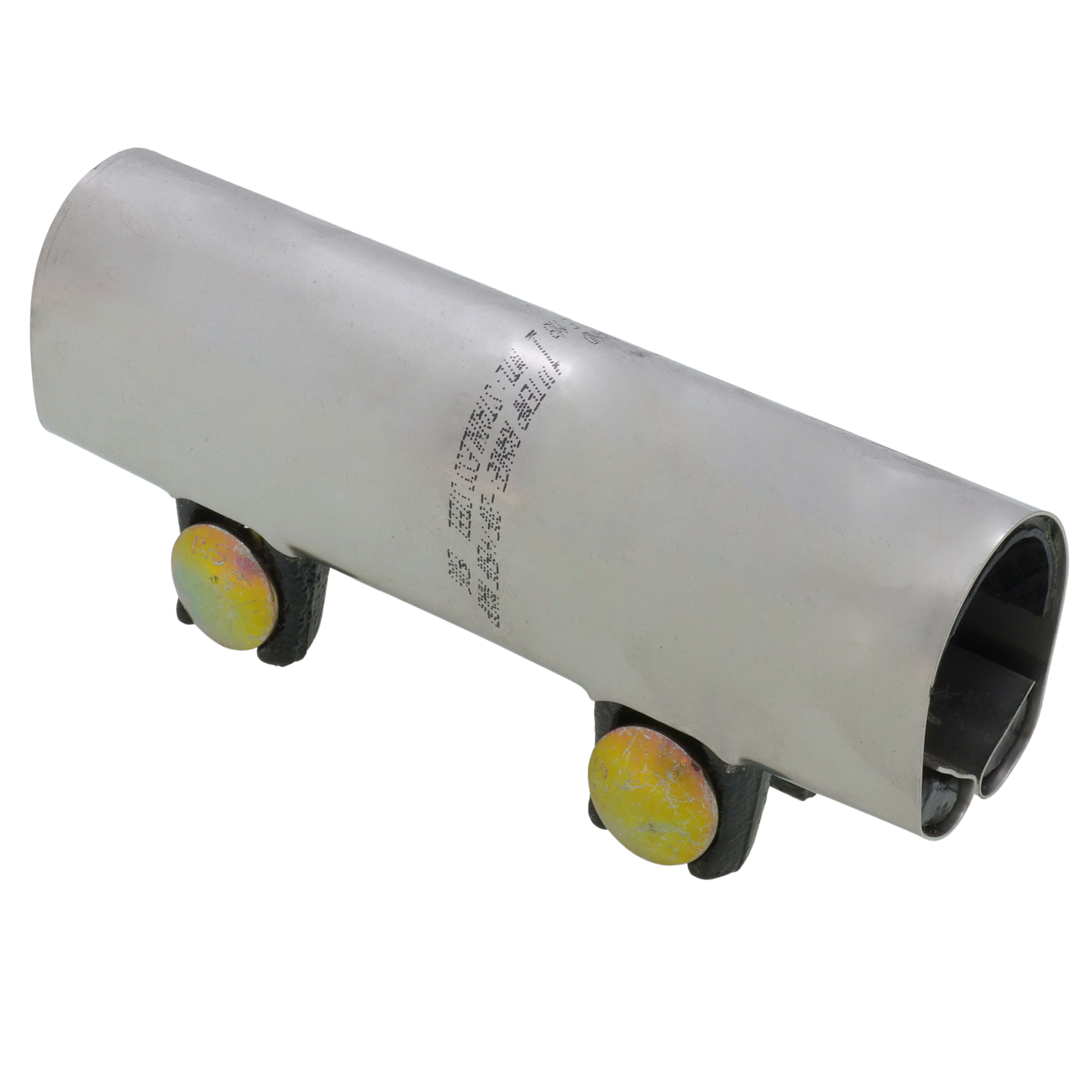

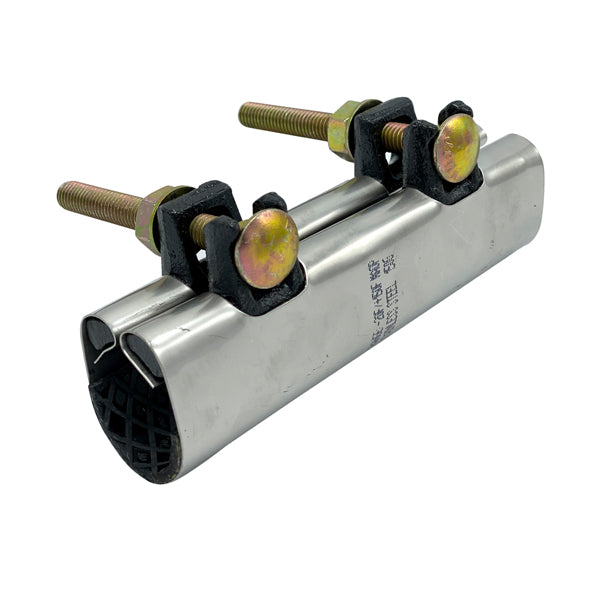

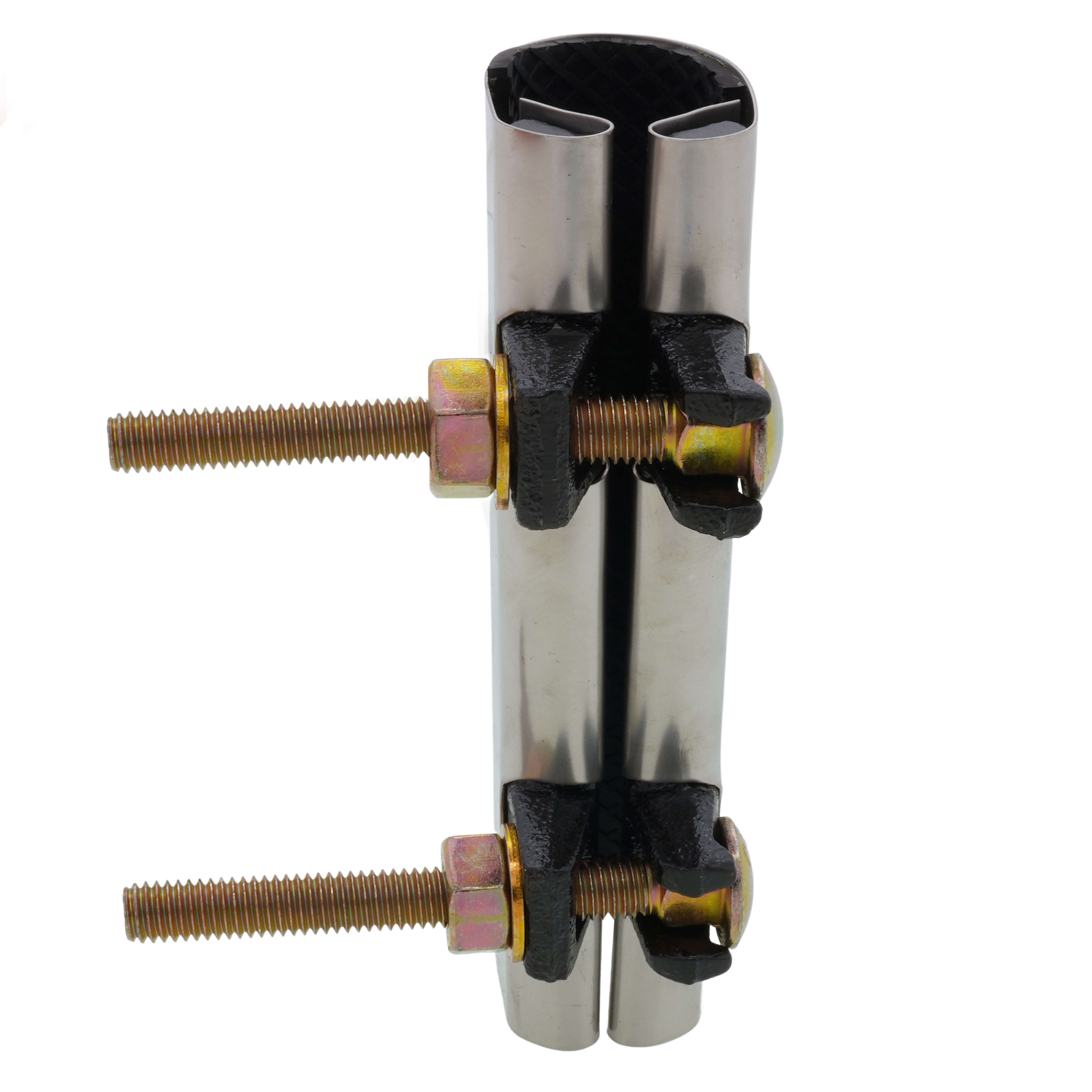

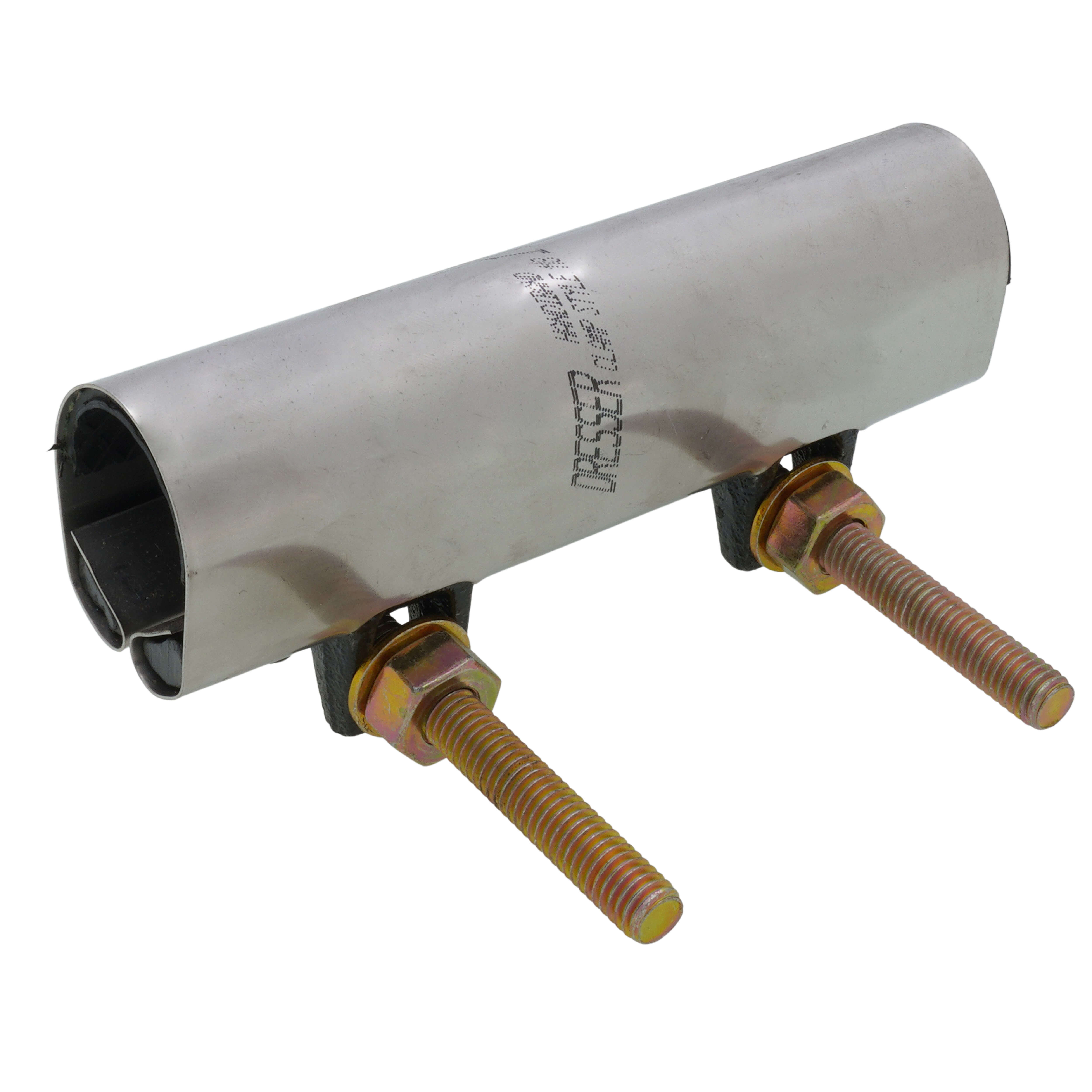

The WAL-RICH 2817012 is a Dresser Style 118 Handiband Clamp, 1" x 6", designed for quick and permanent repair of small leaks and holes in steel piping. This field-proven, low-cost band-type repair clamp features stainless steel 18-8, Type 304 construction for corrosion resistance and a specialized gasket for superior resistance to oils, aromatic and aliphatic hydrocarbons, gasoline, and condensates. Installation is fast and easy, requiring only wrapping the clamp around the pipe, dropping bolts through slotted lugs, and tightening nuts to compress the gasket and seal the leak.

• Field-proven, low cost bandtype repair clamp for steel piping.
• Quick repair of small leaks and holes in steel piping.
• Fast, easy and foolproof installation process.

Product Highlights

Stainless steel repair clamp for quick, permanent sealing of leaks in steel pipes, resistant to various chemicals and operating up to 150 PSI and 150 degrees F.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2817012

Technical Specifications

• MPN: 2817012
• Brand: WAL-RICH
• Accessories: 2817020, 2817016, 2817024
• Size: 1" x 6"
• Material: Alloy Steel, Stainless Steel, Ductile Iron
• Band Material: Stainless Steel 18-8, Type 304
• Lug Material: Ductile Iron ASTM 536
• Bolts & Nuts Material: Alloy to ANSI A21.11
• Gasket Material: Gridded to Dresser Specs
• Dresser Number: 0118-0305-009
• Overall Length: 6 inches
• Gasketing: Plain Grade 27 Gridded
• Max Pressure: 150 PSI
• Max Temperature: 150 Degrees F
