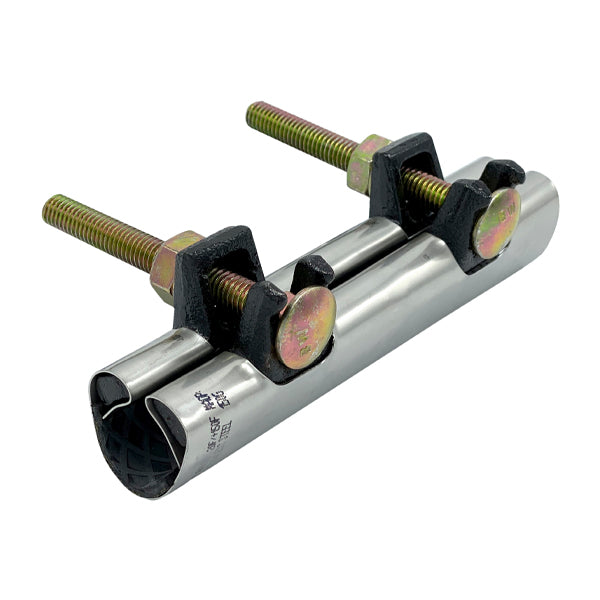

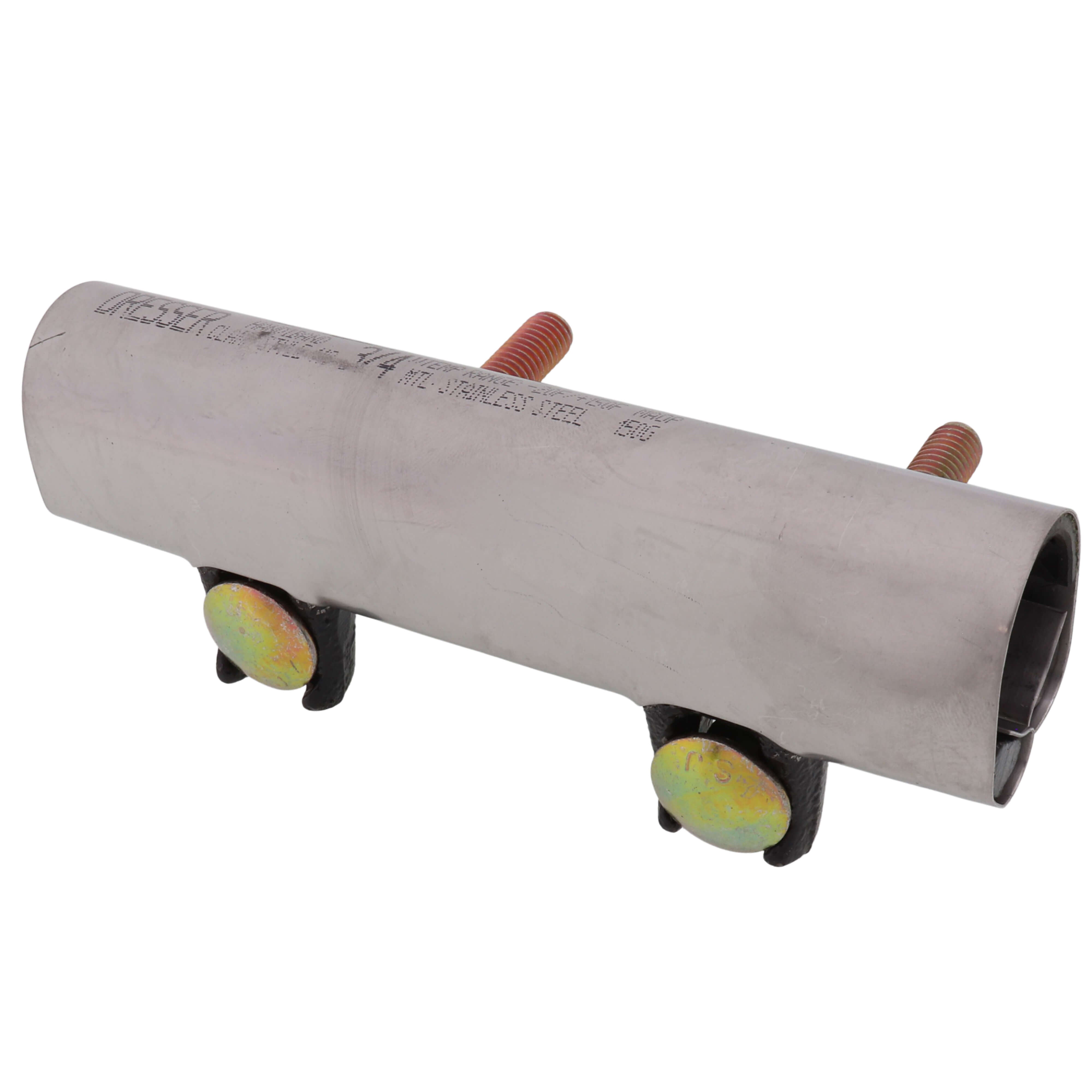

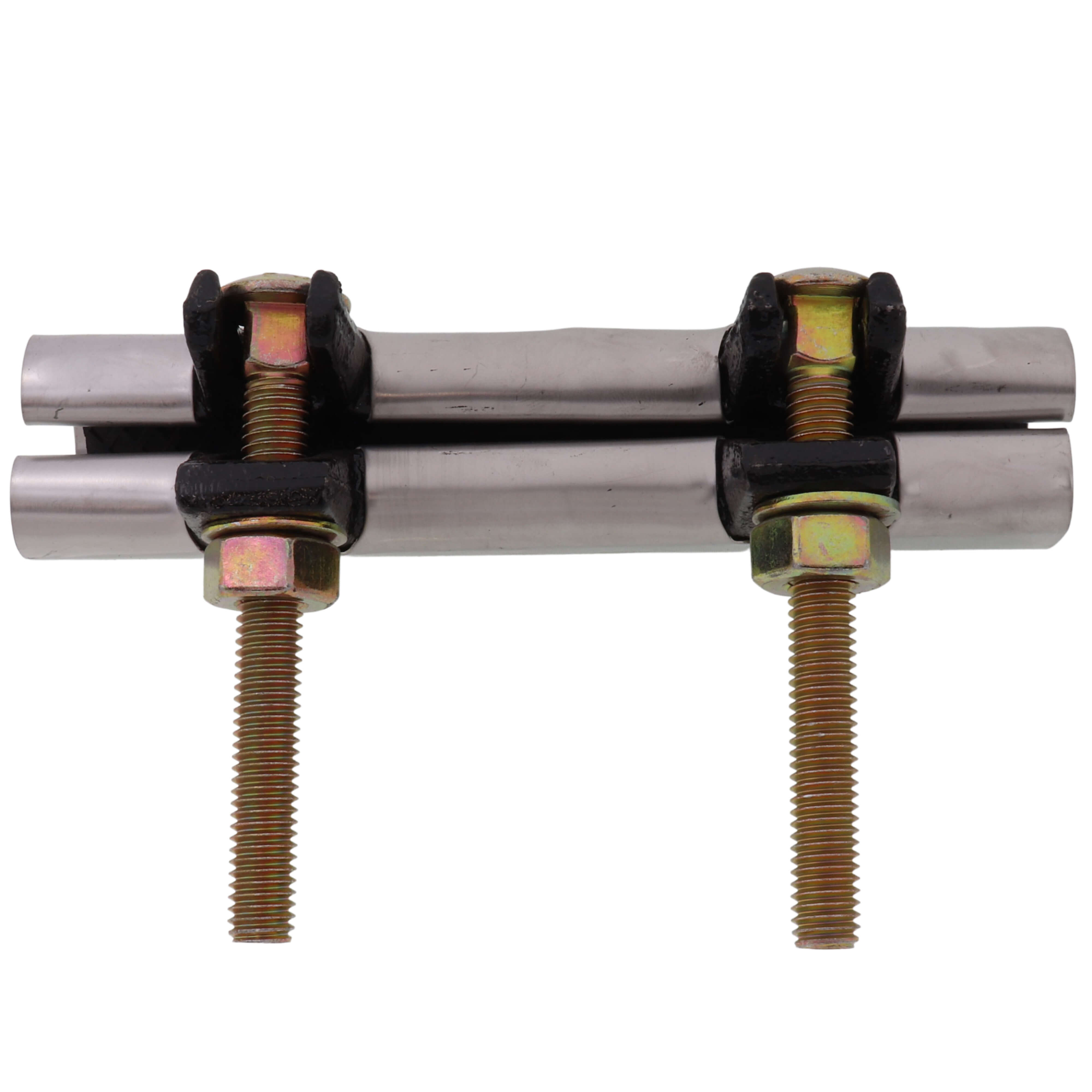

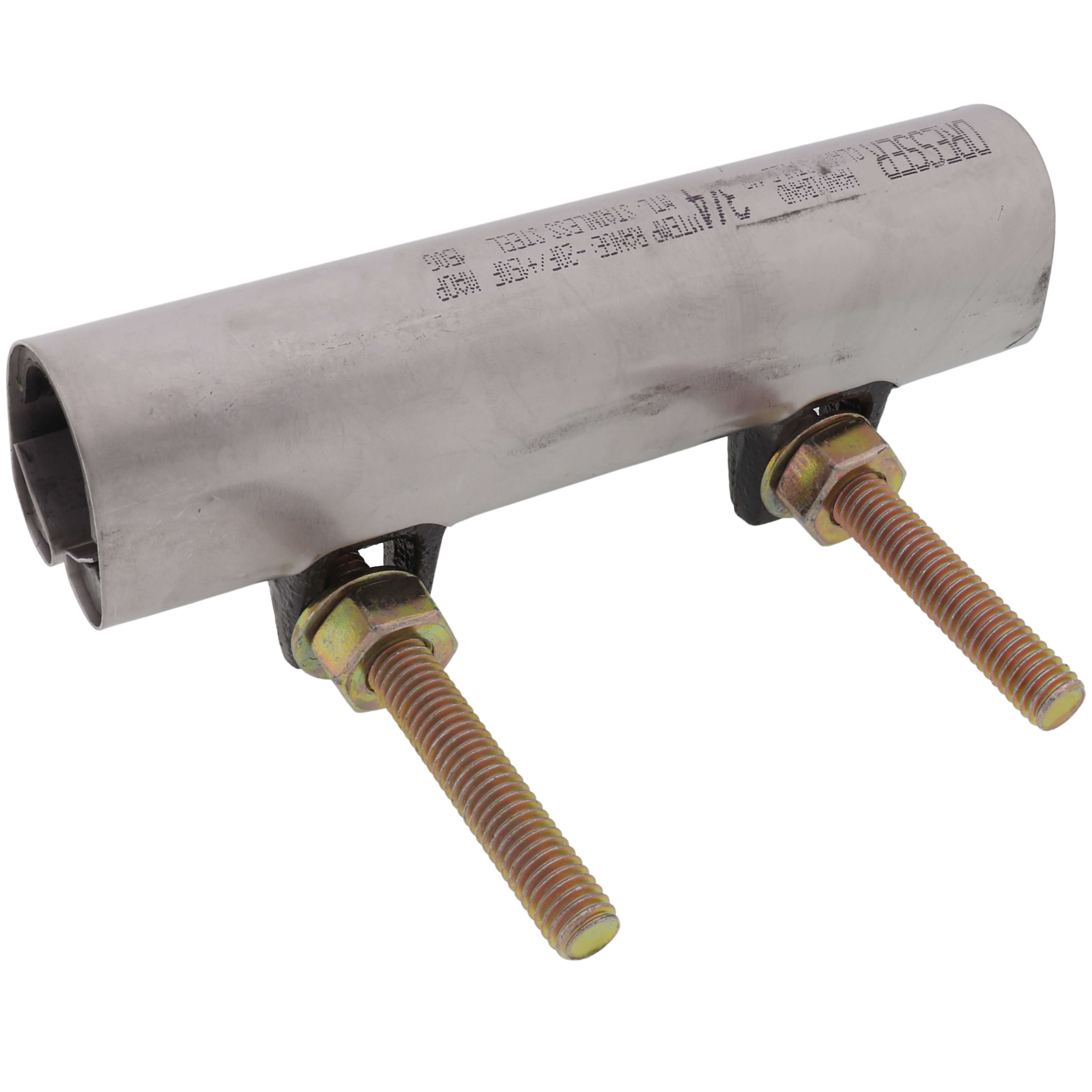

Wal-Rich 2817008 Stainless Steel Dresser Handiband Repair Clamp 3/4 inches x 6 inches

Product Description

The WAL-RICH 2817008 Dresser Style 118 Handiband Clamp is a field-proven, low-cost band-type repair clamp designed for quick repair of small leaks and holes in steel piping. Installation is fast and easy, involving wrapping the clamp around the pipe, dropping bolts through slotted lugs, and tightening nuts. The large gasket compression seals leaks completely and permanently. Constructed from stainless steel for corrosion resistance, it features a Dresser rubber compound gasket offering superior resistance to oils, hydrocarbons, gasoline, and condensates.

• Field-proven, low cost band-type repair clamp
• Quick repair of small leaks and holes in steel piping
• Fast, easy, and foolproof installation

Product Highlights

Stainless steel construction with a specialized gasket for durable, corrosion-resistant pipe repair.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2817008

Technical Specifications

• MPN: 2817008
• Brand: WAL-RICH
• Size: 3/4" x 6"
• Material: Ductile Iron, Alloy Steel, Stainless Steel
• Band: Stainless Steel 18-8, Type 304
• Lugs: Ductile Iron ASTM 536
• Bolts & Nuts: Alloy to ANSI A21.11
• Gasket: Gridded to Dresser Specs
• Dresser Part Number: 0118-0303-009
• Max Pressure: 150 PSI
• Max Temperature: 150 Degrees F
