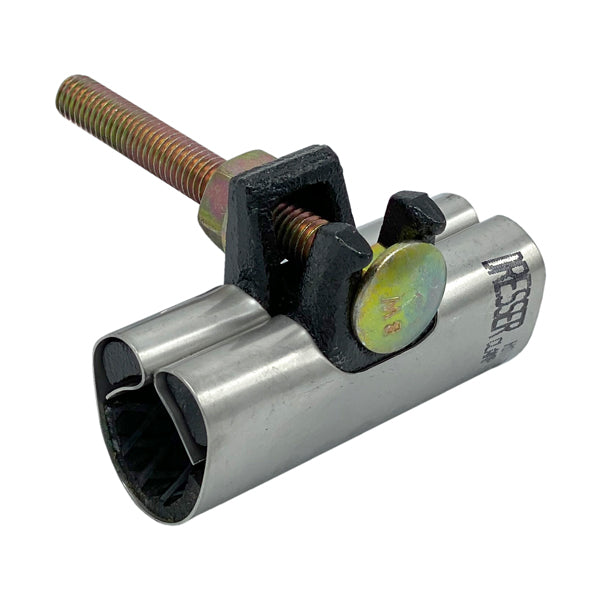

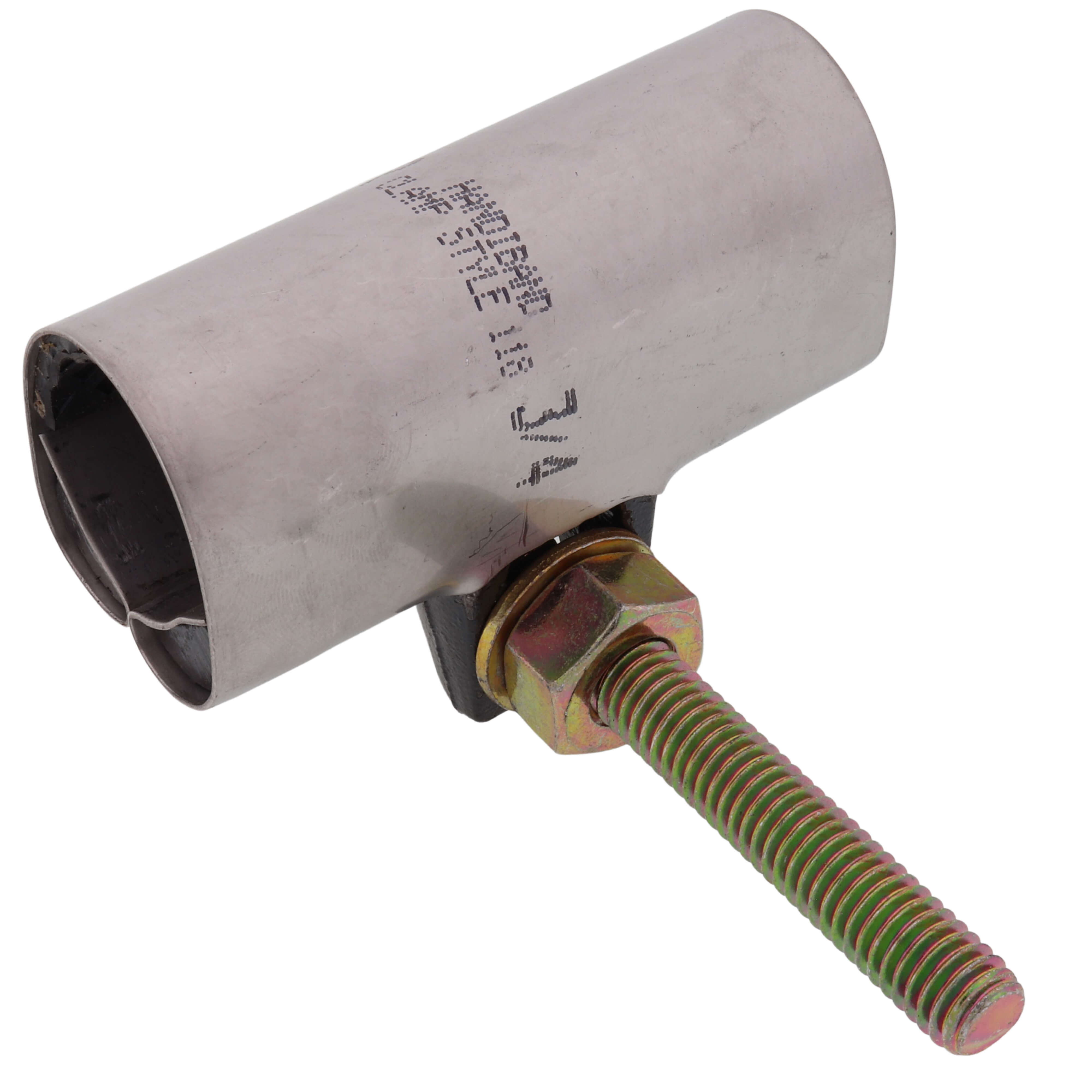

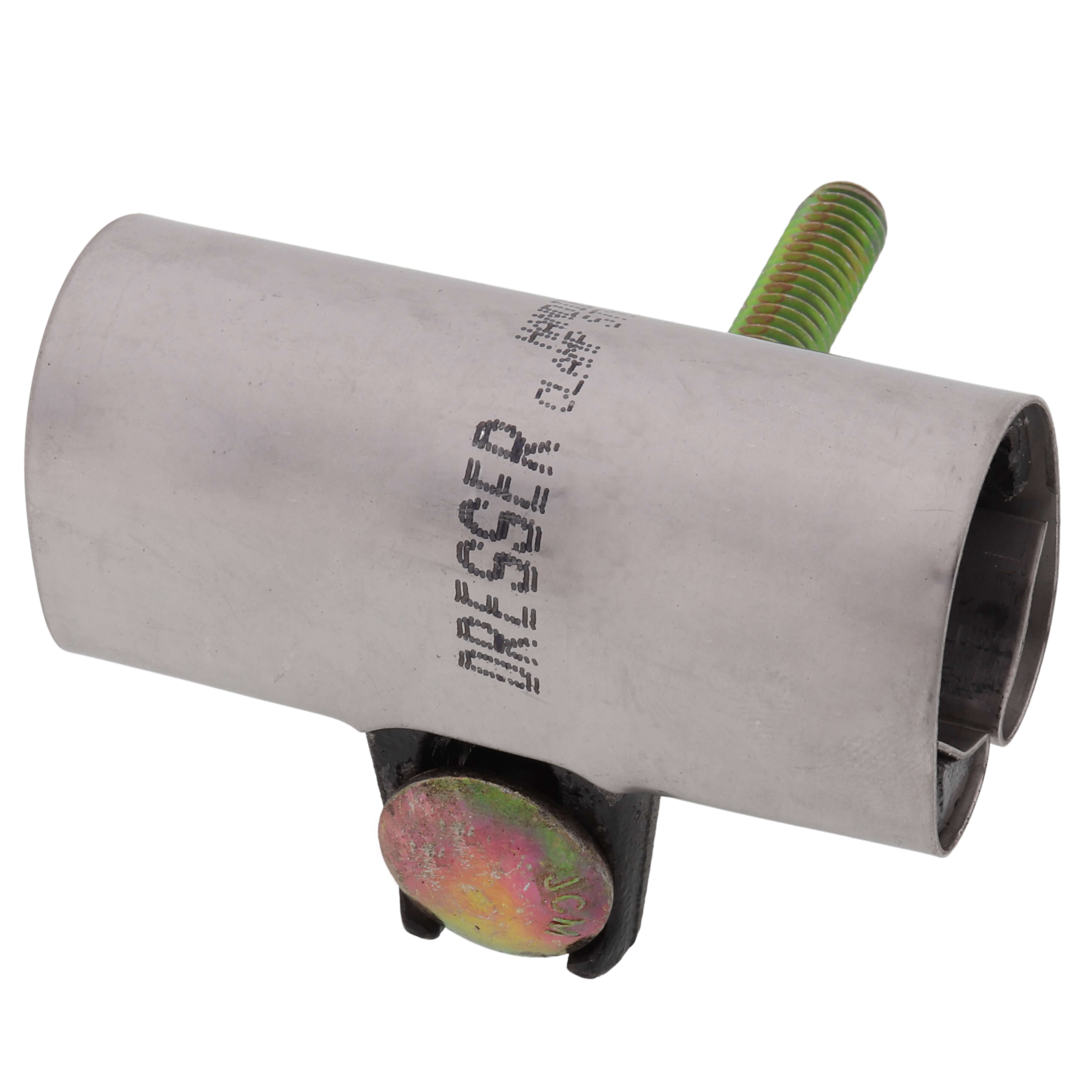

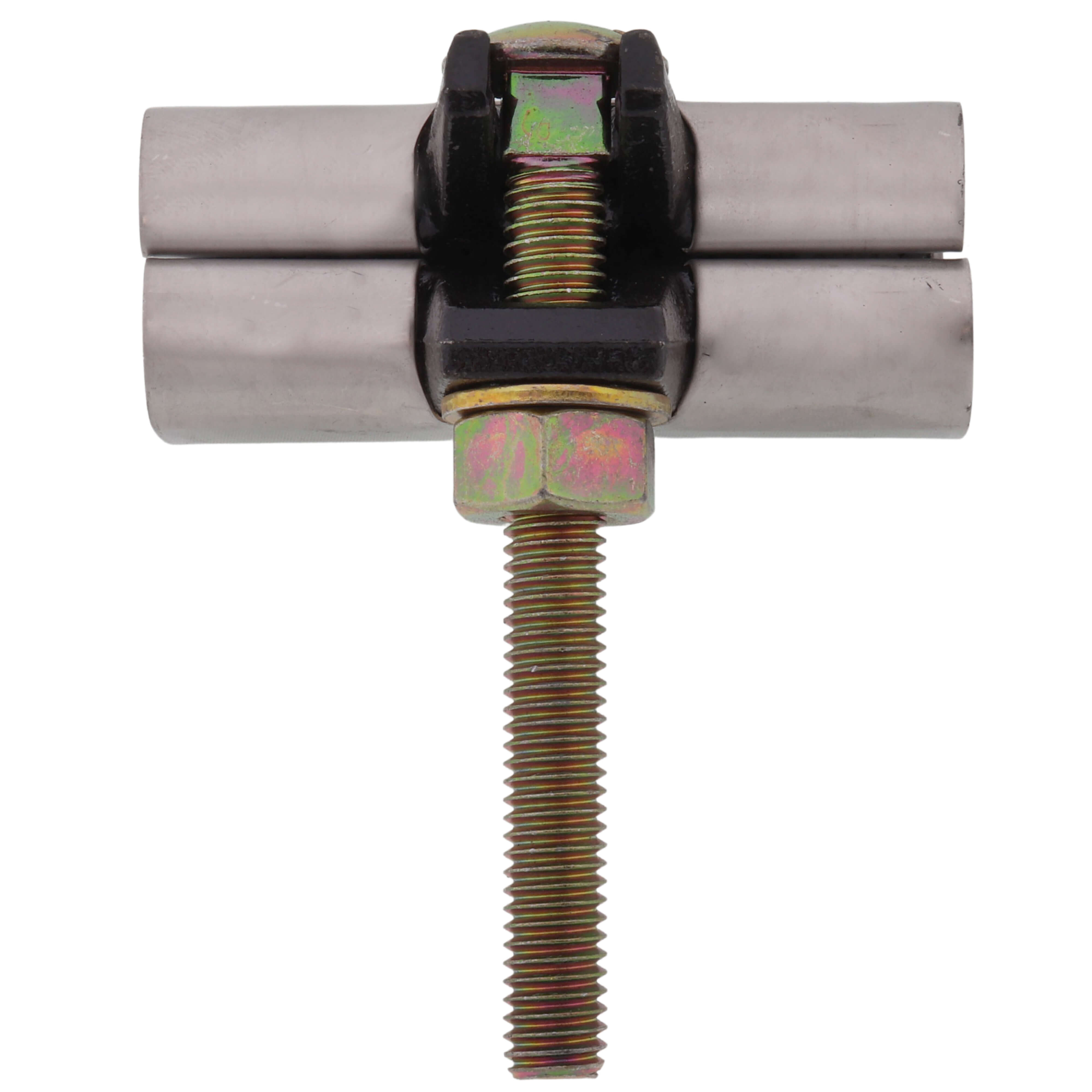

Wal-Rich 2817006 Dresser Handiband Repair Clamp 3/4 inch X 3 inch

Product Description

The WAL-RICH 2817006 Dresser Style 118 Handiband Clamp is a field-proven, low-cost band-type repair clamp designed for quick repair of small leaks and holes in steel piping. This 3/4 inch x 3 inch clamp features stainless steel construction for corrosion resistance and a Dresser rubber compound gasket, offering superior resistance to oils, hydrocarbons, gasoline, and condensates. It is suitable for water service applications with a maximum temperature of 150 degrees F and a maximum pressure of 150 PSI.

• Field-proven, low-cost band-type repair clamp for steel piping.
• Fast, easy, and foolproof installation for small leaks and holes.
• Stainless steel construction with a Dresser rubber compound gasket for corrosion and chemical resistance.

Product Highlights

Quick and permanent repair for steel pipes, featuring durable stainless steel and chemical-resistant gasketing.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2817006

Technical Specifications

• Brand: WAL-RICH
• MPN: 2817006
• Accessories: 2817002, 2817010
• Size: 3/4 inch x 3 inch
• Band Material: Stainless Steel 18-8, Type 304
• Lugs Material: Ductile Iron ASTM 536
• Bolts & Nuts Material: Alloy to ANSI A21.11
• Gasket Type: Plain Grade 27 Gridded Gasketing
• Dresser Number: 0118-0302-009
• Overall Length: 3 inch
• Max Pressure: 150 PSI
• Max Temperature: 150 Degrees F
• Series: Style 118
• Application Type: Water Service
