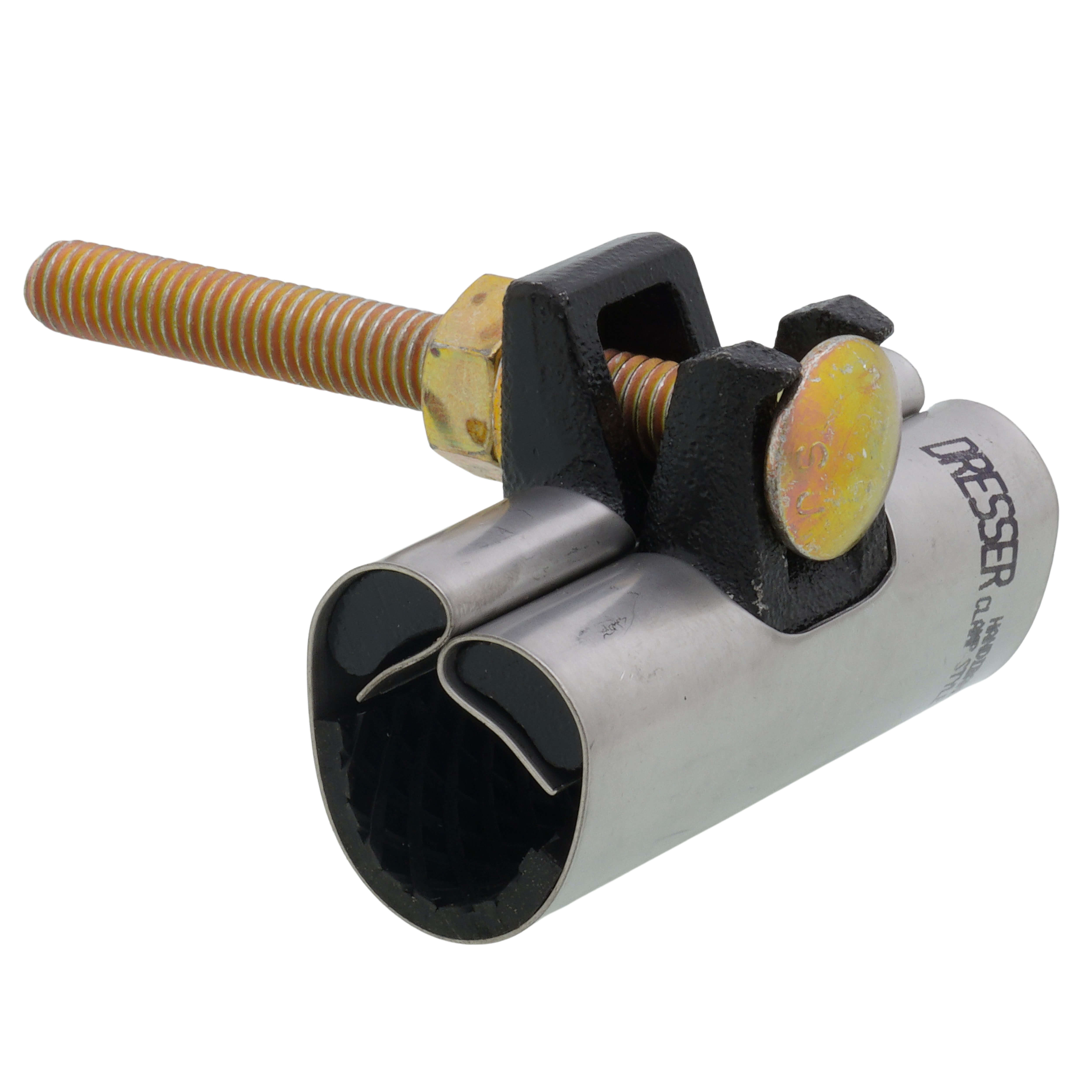

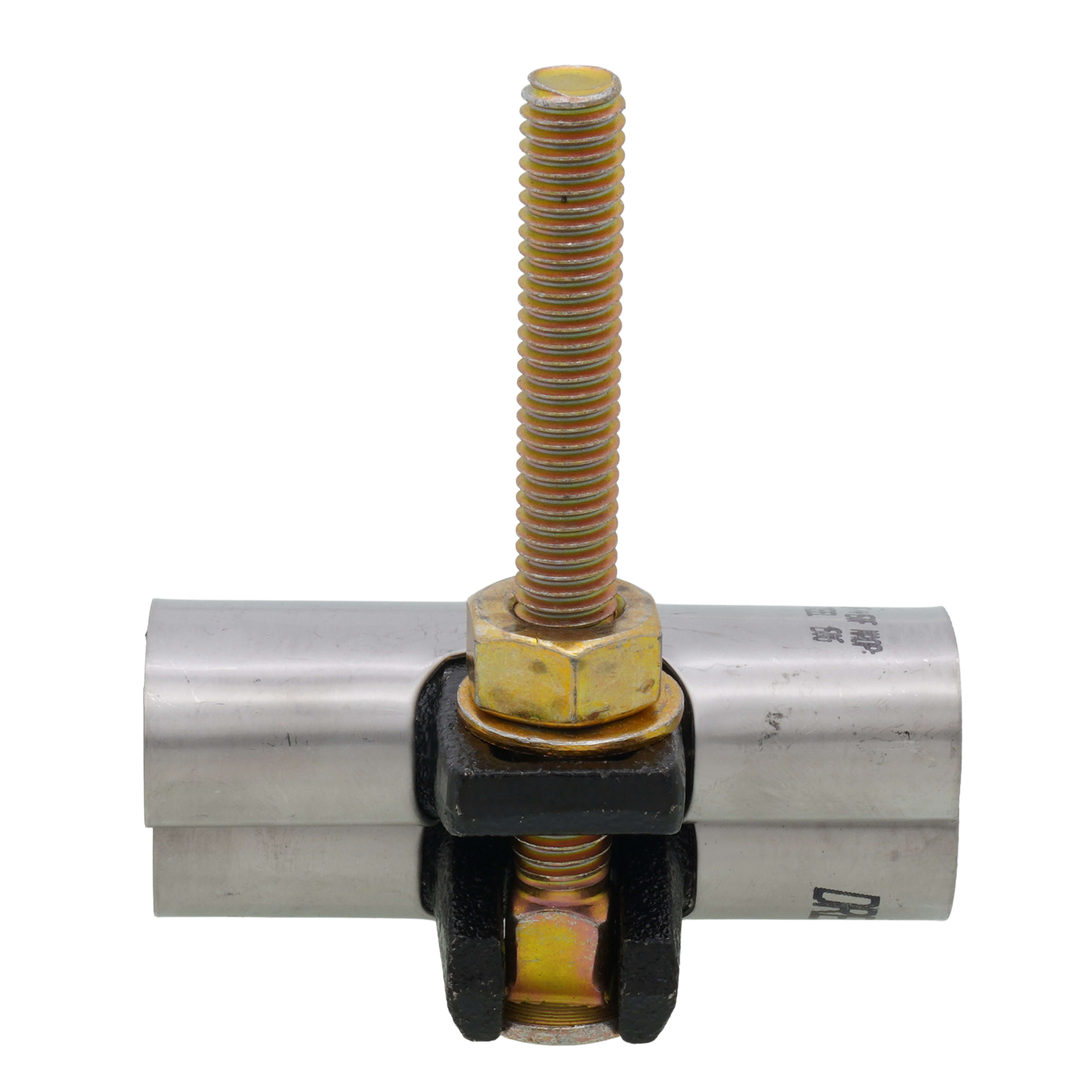

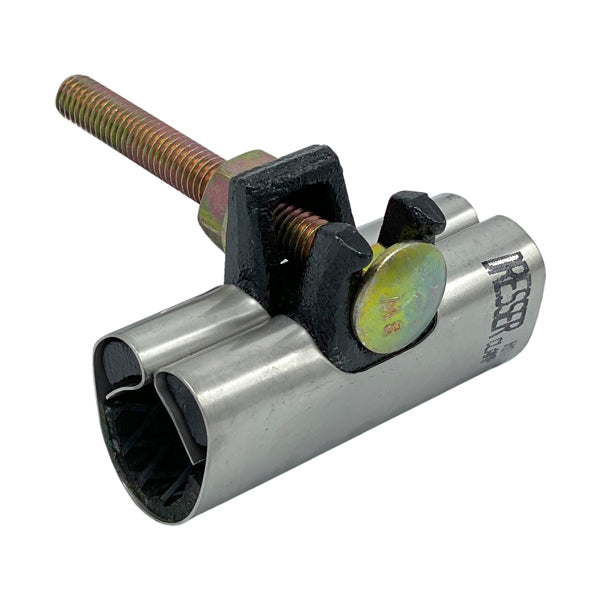

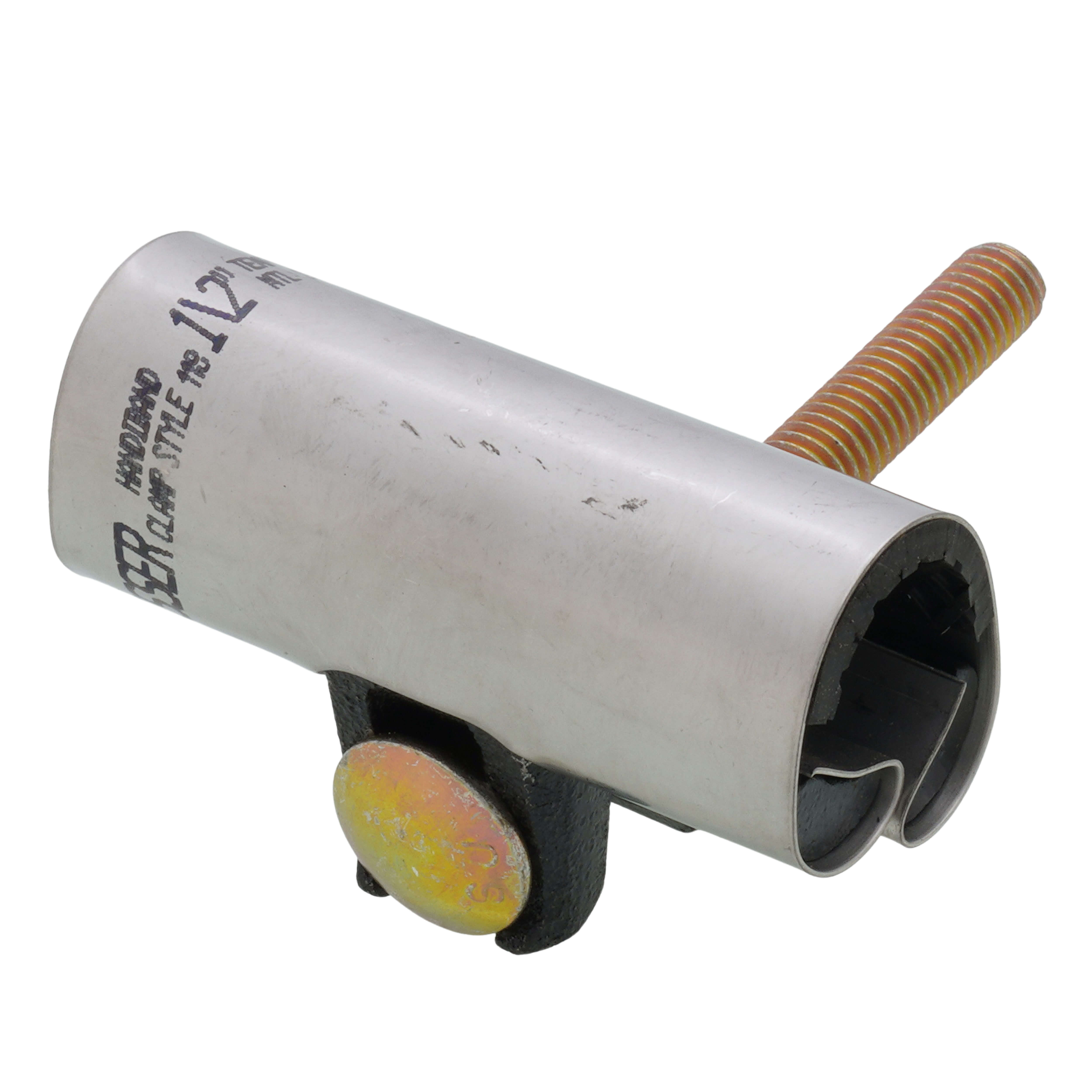

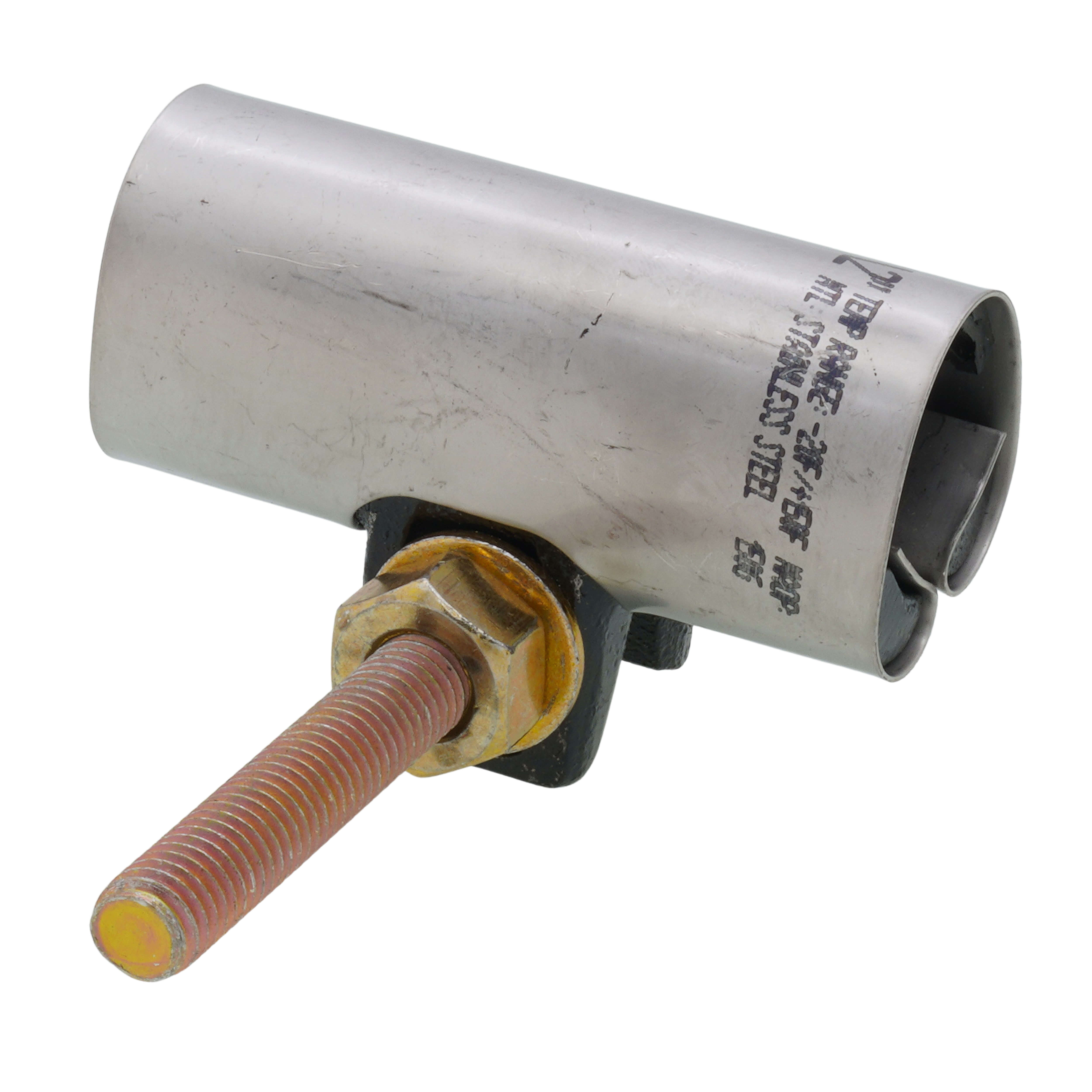

Wal-Rich 2817002 1/2 inches x 3 inches stainless steel dresser handiband repair clamp

Product Description

The WAL-RICH 2817002 is a Dresser Style 118 Handiband clamp designed for quick repair of small leaks and holes in steel piping. This band-type repair clamp features a stainless steel construction for corrosion resistance. Its installation is fast and easy, involving wrapping the clamp around the pipe, dropping bolts through slotted lugs, and tightening nuts. The large gasket ensures a complete and permanent seal, offering superior resistance to oils, hydrocarbons, gasoline, and condensates.

• Field-proven band-type repair clamp for steel piping.
• Quick and easy installation for small leaks and holes.
• Stainless steel construction with a rubber compound gasket for corrosion and chemical resistance.

Product Highlights

Durable stainless steel clamp with chemical-resistant gasket for fast, permanent pipe leak repair up to 150 PSI and 150°F.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2817002

Technical Specifications

• Size: 1/2" x 3"
• Band Material: Stainless Steel 18-8, Type 304
• Lug Material: Ductile Iron ASTM 536
• Bolts & Nuts Material: Alloy to ANSI A21.11
• Gasket Type: Gridded to Dresser Specs
• Dresser Part Number: 0118-0300-009
• Overall Length: 3 inches
• Max Pressure: 150 PSI
• Max Temperature: 150 Degrees F
