Wal-Rich 2815802 3/4 inch IPS Style 90 Gas Meter Compression Dresser Coupling for Steel Pipe

Product Description

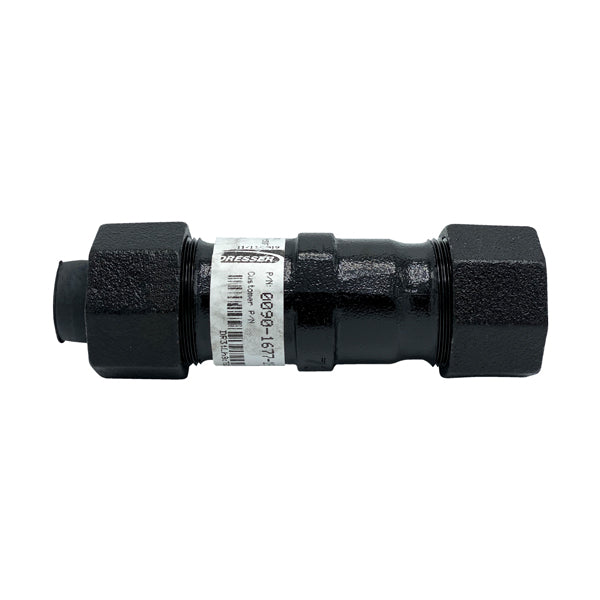

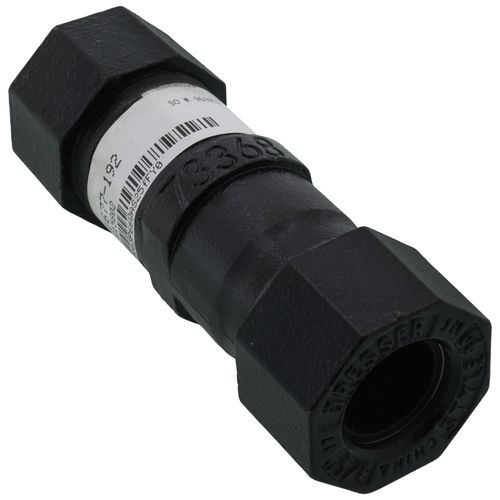

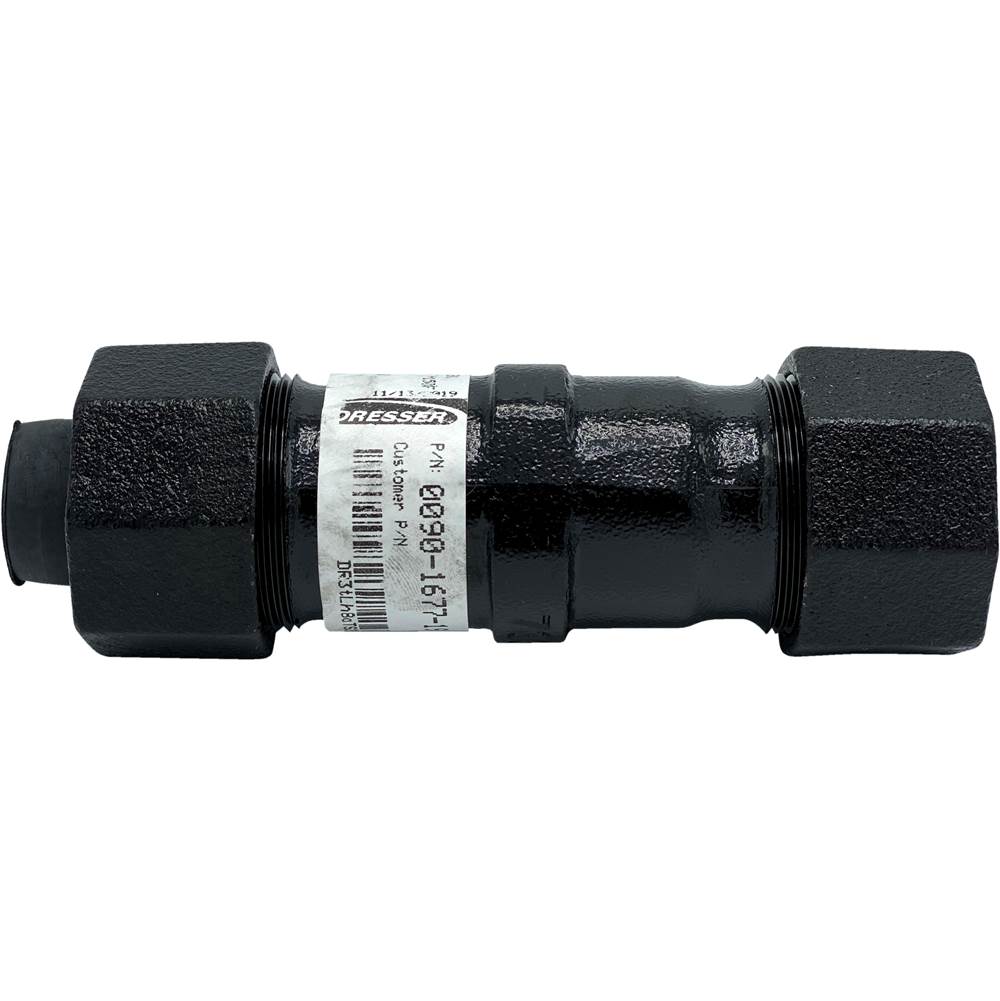

The WAL-RICH 2815802 is a 3/4 inch IPS Style 90 Gas Meter Compression Dresser Coupling for steel pipe applications. This insulated coupling features an insulating sleeve and spacer to conform to local codes, providing a seal only without restraint. Constructed from E-Coated Cast Iron, it has a 5-inch overall length and can withstand a maximum pressure of 150 PSI and a maximum temperature of 212 degrees F.

• Insulating sleeve and spacer to conform to local codes
• Seal Only--no restraint
• For Gas Service - Steel Only Fitting For Steel Pipe

Product Highlights

Insulated dresser coupling for gas meter applications on steel pipes, featuring a code-compliant insulating sleeve and spacer.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2815802

Technical Specifications

• MPN: 2815802
• Reference ID: WALRICH2815802
• Size: 3/4" IPS
• Type: Style 90
• Application: Gas
• Dresser Number: 0090-1677-192
• Overall Length: 5 inches

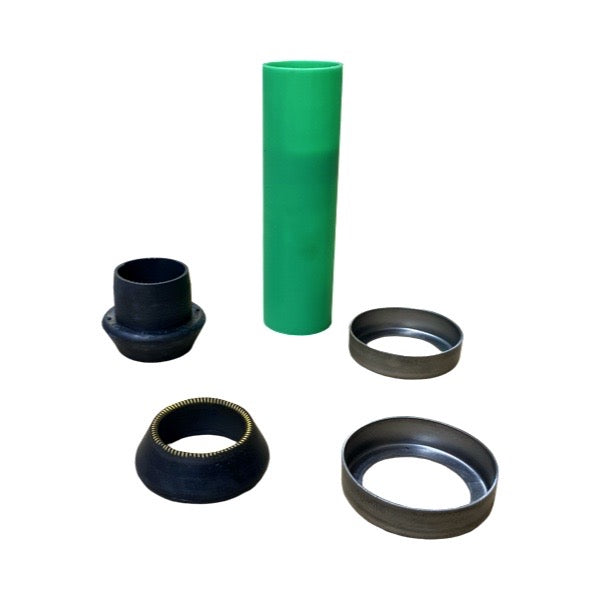

• Components: Sleeve, Armored Grade 27 Gasket, Insulating Boot, Spacer
• Material: Cast Iron
• Coating: E-Coated
• Max Pressure: 150 PSI
• Max Temperature: 212 Degrees F
• UPC / GTIN: 730284068228
• SKU: DRE90LC07
• Product Type: Coupling
• Online Product ID: 7710962
