Wal-Rich 2814410 Style 90 Steam Dresser Coupling (1-1/2)

Product Description

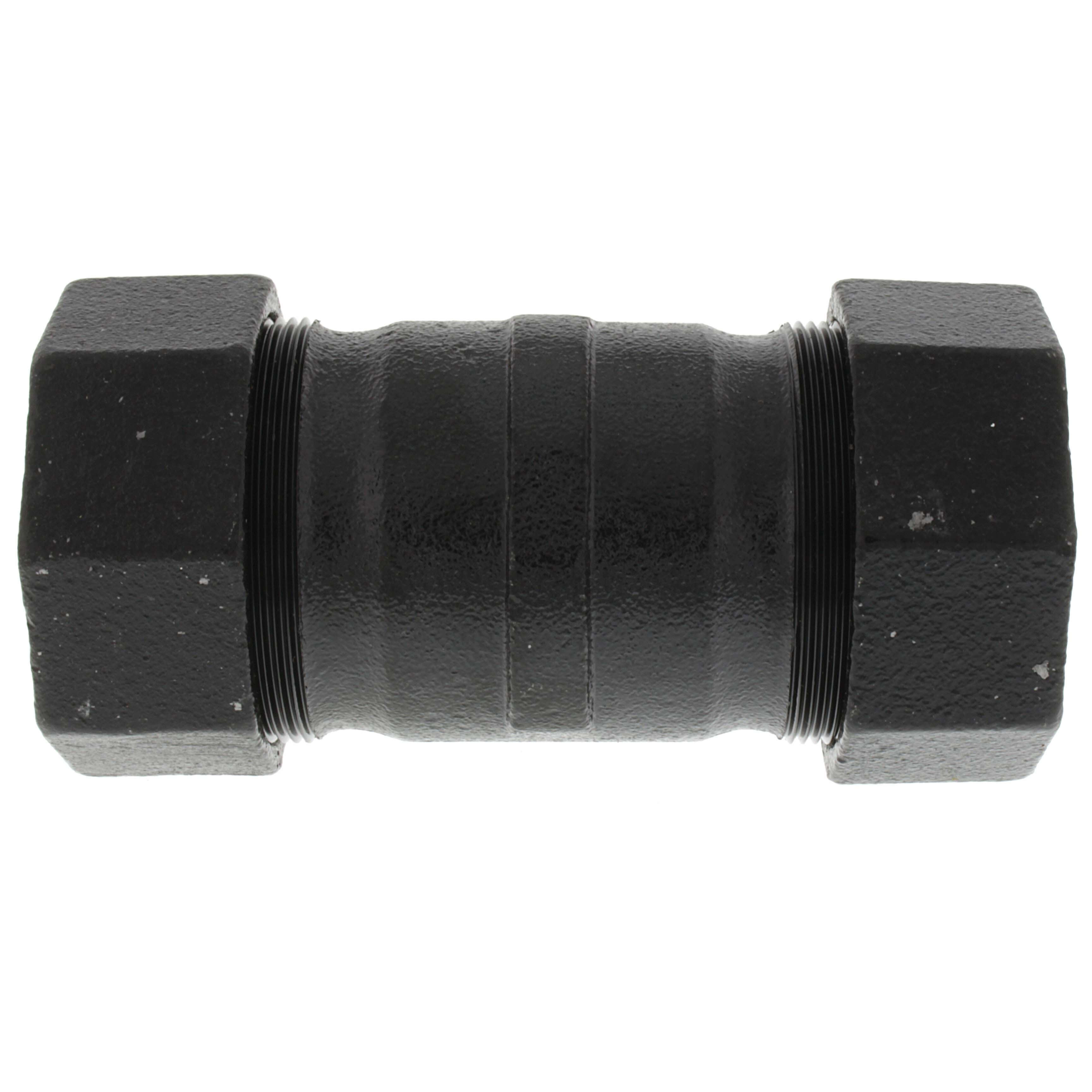

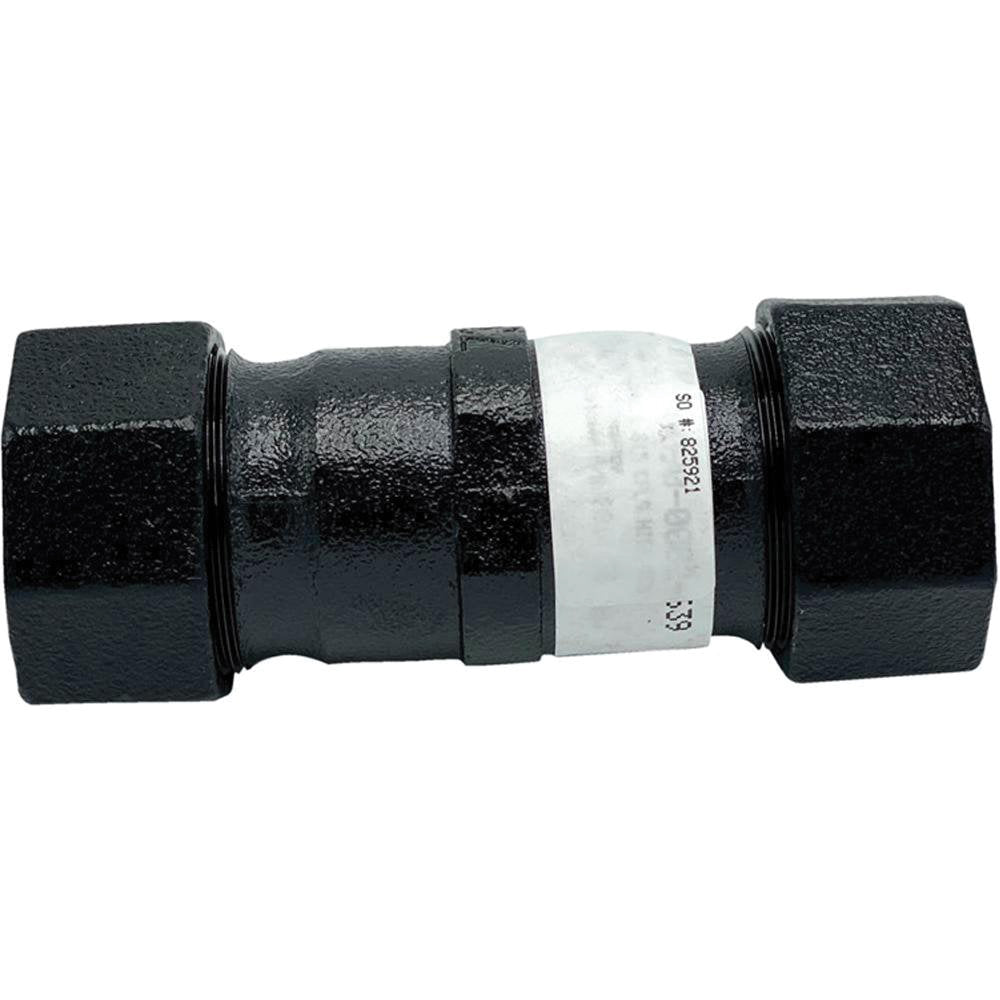

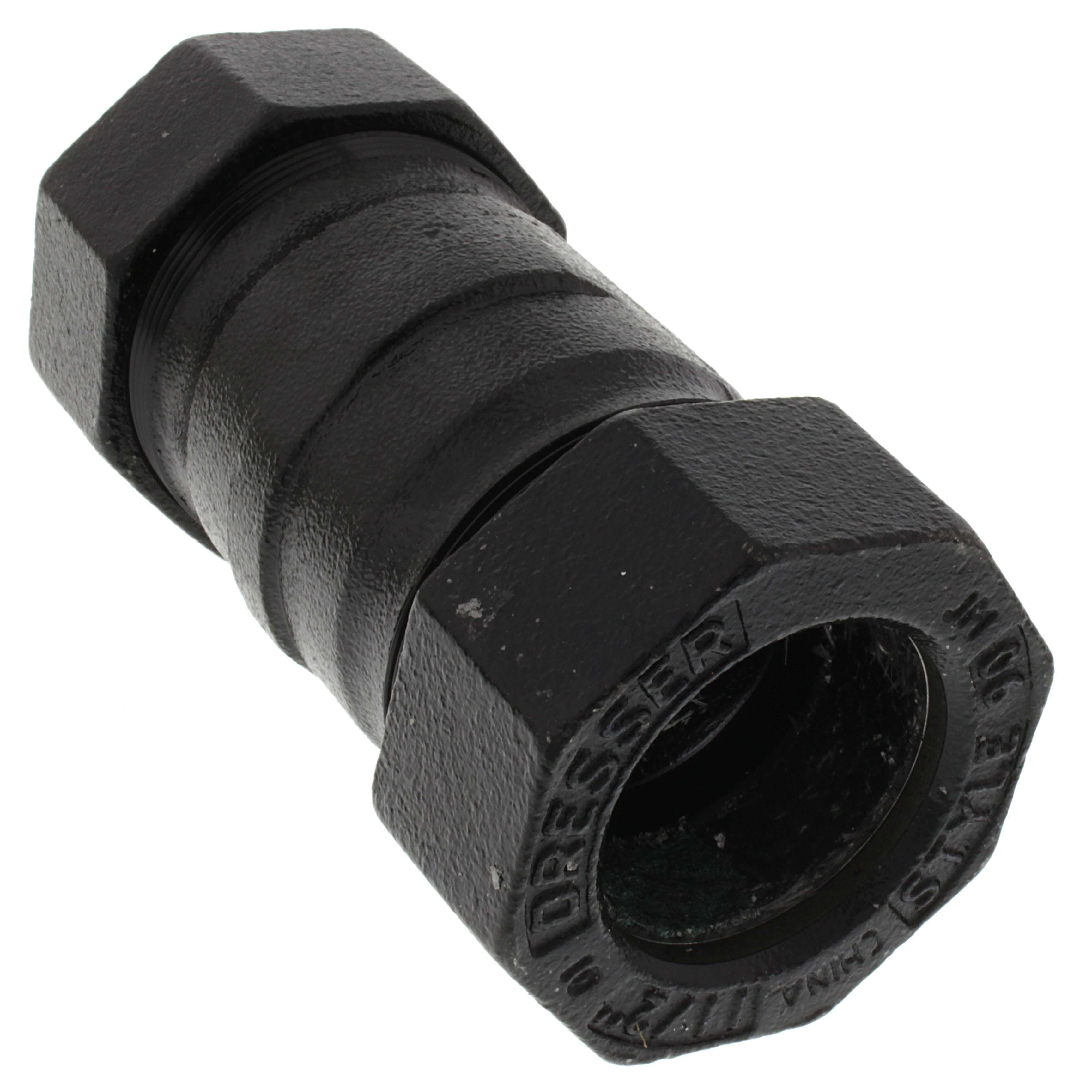

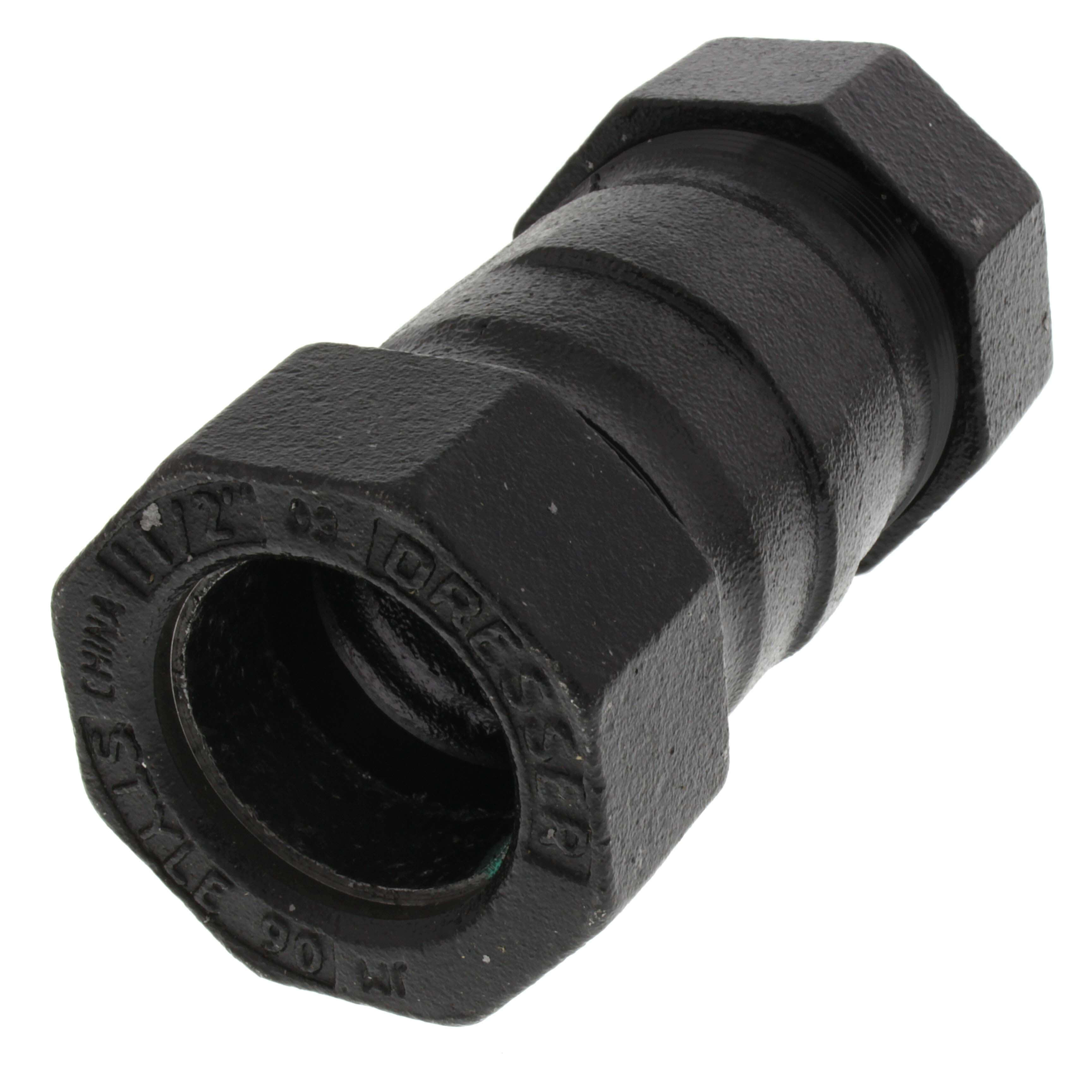

The Wal-Rich 2814410 is a 1-1/2-inch Style 90 steam dresser coupling intended for low-pressure steam applications. It uses carded fiberglass gaskets that withstand temperatures up to 1200°F and fits 1-1/2 IPS steel pipe. The coupling has a cast iron body with an E-coated finish, an overall length of 5 inches, and a nominal weight of approximately 4.6 pounds.

• 1-1/2 in IPS Style 90 compression coupling for low-pressure steam
• Carded fiberglass (carded glass hi-temp) gaskets rated to 1200°F
• Cast iron body with E-coated finish; overall length 5 in; maximum pressure 50 PSI

Product Highlights

1-1/2 in Style 90 steam coupling with carded fiberglass gaskets, 1200°F temperature rating, cast iron E-coated body

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2814410

Technical Specifications

• Brand: Wal-Rich
• Manufacturer Part Number: 2814410
• Dresser Part Number: 0090-0004-639
• Size: 1-1/2 in (1-1/2 IPS)
• Connection Type: IPS compression
• Gasket Type: Carded fiberglass (carded glass hi-temp)
• Material: Cast iron
• Finish: E-coated
• Overall Length: 5 in
• Maximum Pressure: 50 PSI
• Maximum Temperature: 1200 °F
• Application: Low pressure steam
• Weight: 4.6 lbs
