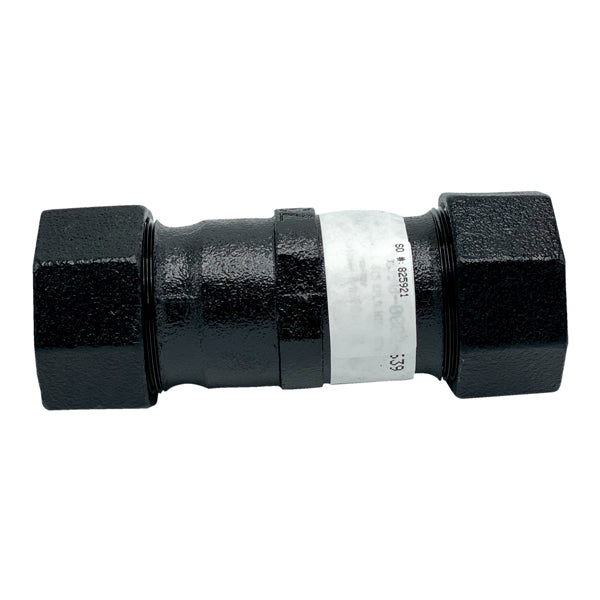

Wal-rich 2814408 Dresser Style 90 Pipe Coupling 1-1/4 in

Product Description

The WAL-RICH 2814408 is a Dresser Style 90 pipe coupling designed for joining plain-end pipe sections in demanding service environments. Built from cast iron with an E-coat finish, this coupling provides corrosion resistance and mechanical durability for both above-ground and underground piping applications. It ships with carded glass high-temperature gaskets rated to 1200 degrees F, making it suitable for high-heat service where standard rubber gaskets would fail. The coupling is rated to 50 PSI maximum working pressure and measures 5 inches in overall length. Licensed plumbers and pipefitters are the primary installers of this type of mechanical pipe coupling.

The Style 90 coupling is used in residential and commercial piping systems where a reliable mechanical joint is required on plain-end pipe. It is particularly applicable in gas distribution, steam, or high-temperature fluid lines where conventional elastomeric gaskets are not appropriate. The cast iron construction and E-coat finish hold up in harsh service conditions. The included carded glass gaskets eliminate the need to source separate high-temperature sealing components, making this a ready-to-install assembly.

Key Features

• Cast iron body with E-coat finish for corrosion resistance
• Carded glass high-temperature gaskets rated to 1200 degrees F included
• 50 PSI maximum working pressure
• 5-inch overall length for a secure mechanical joint on plain-end pipe
• Dresser Style 90 design for standardized field replacement and compatibility
• Weighs 3.625 pounds — compact and manageable for field installation

Compatibility

Designed as an OEM-style mechanical coupling for 1-1/4 inch plain-end pipe in high-temperature piping systems. The Dresser part number for this coupling is 0090-0003-639.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code or International Fuel Gas Code as relevant to the service. Shut off and depressurize the line completely before disassembling any existing joint or installing this coupling. Inspect pipe ends for burrs, scale, and out-of-round conditions before seating the coupling. Do not exceed the rated 50 PSI working pressure or 1200 degrees F temperature limit for this assembly.

Technical Specifications

• Pipe Size: 1-1/4 inches
• Overall Length: 5 inches
• Maximum Working Pressure: 50 psi
• Maximum Temperature: 1200 degrees F
• Body Material: Cast Iron
• Finish: E-Coated
• Gasket Type: Carded Glass High-Temperature
• Dresser Part Number: 0090-0003-639
• Weight: 3.625 pounds

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2814408
