Wal-Rich 2814406 1 inches IPS Style 90 Low Pressure Steam Compression Dresser Coupling for Steel Pipe 0090-0002-639

Product Description

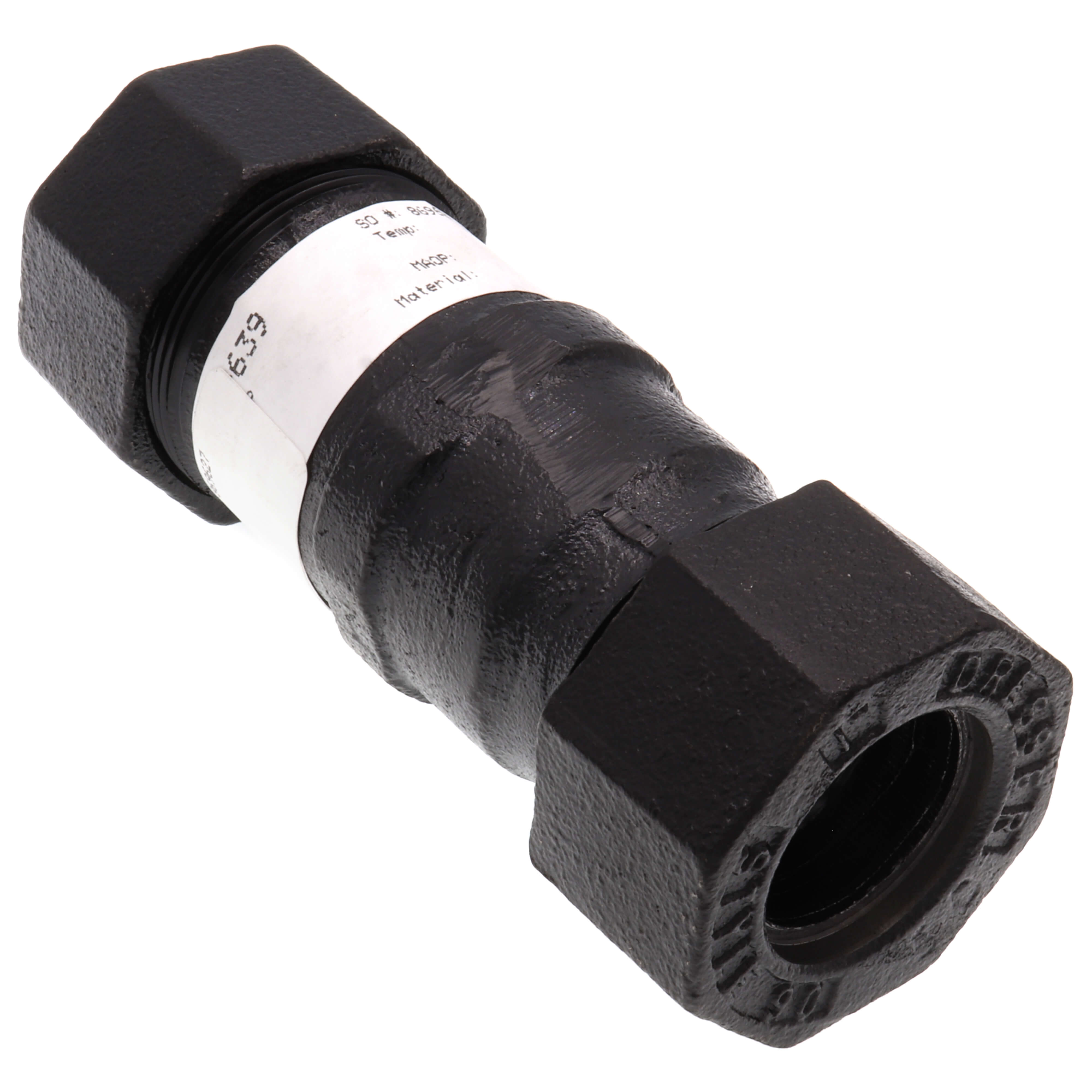

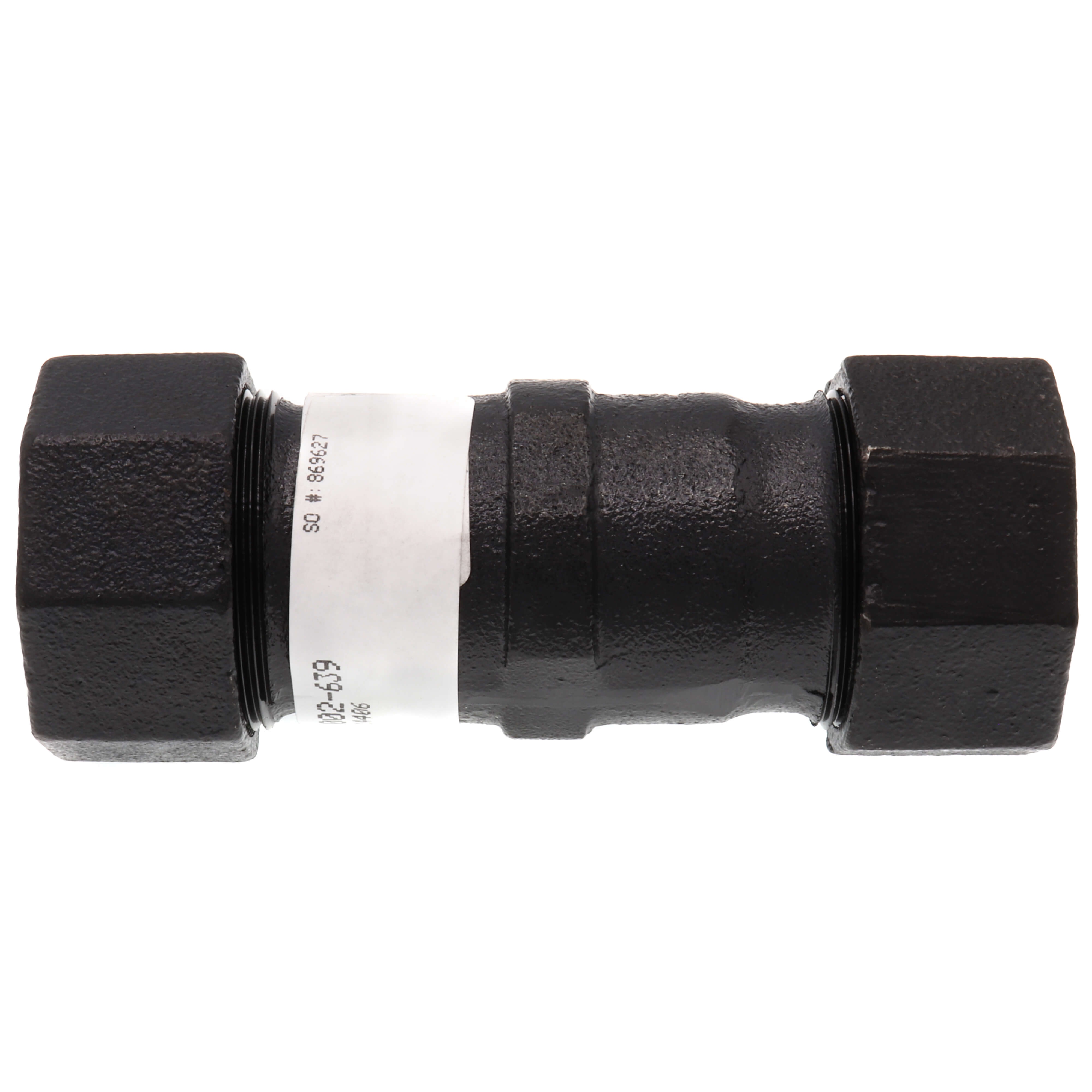

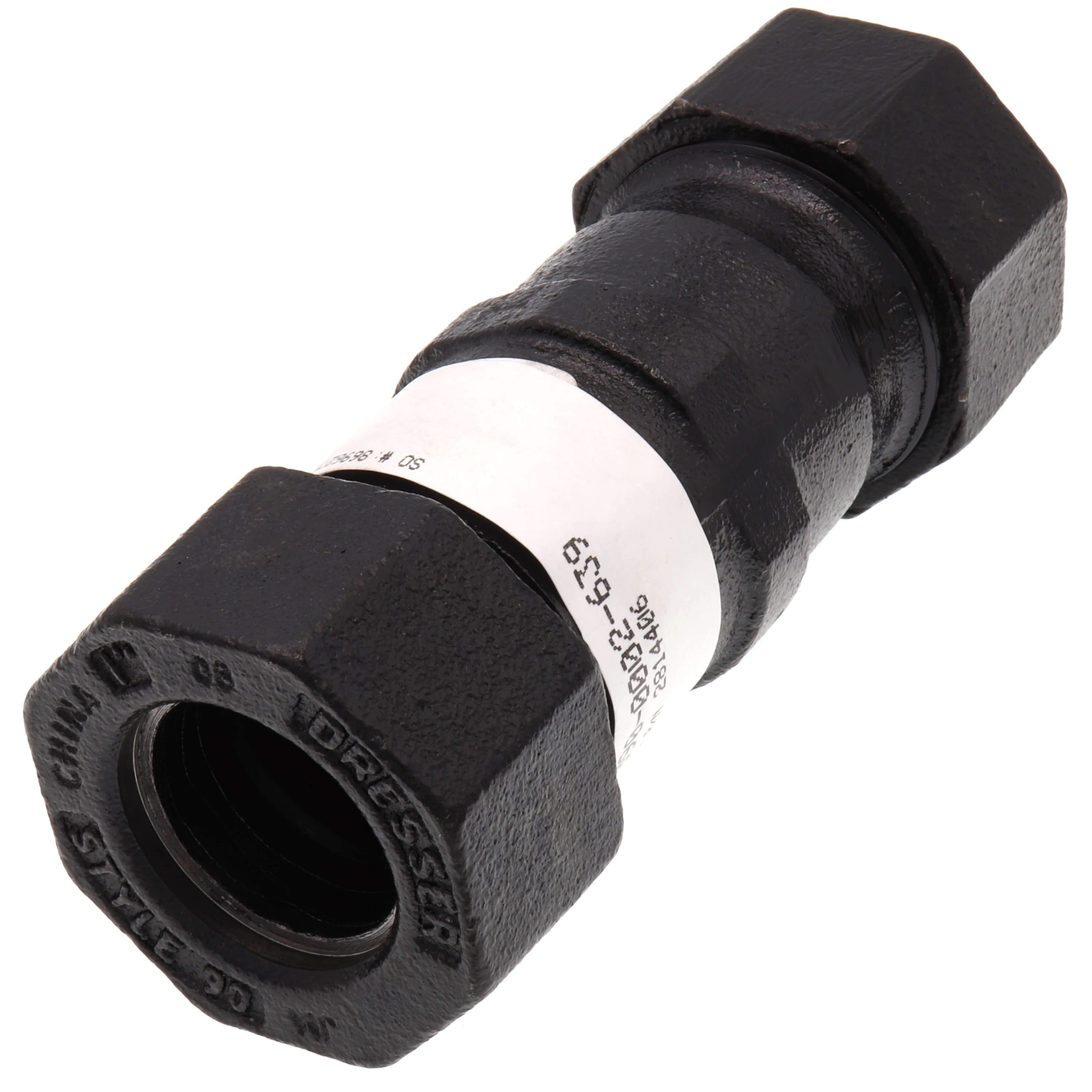

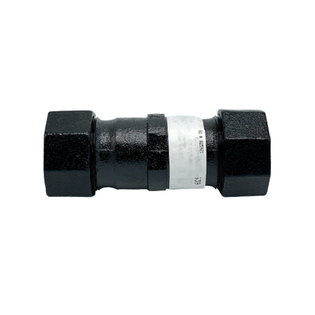

The WAL-RICH 2814406 is a 1" IPS Style 90 Low Pressure Steam Compression Dresser Coupling designed for steel pipe applications. This coupling features carded fiberglass gaskets, allowing it to withstand temperatures up to 1200°F. It is suitable for high-temperature environments, providing a secure connection. The non-resilient nature of the carded fiberglass gaskets should be noted as it may affect the seal.

• Features carded fiberglass gaskets for high-temperature applications.
• Withstands operating temperatures up to 1200°F.
• Designed as a 1" IPS Style 90 compression coupling for low pressure steam and steel pipe.

Product Highlights

This coupling is designed for low pressure steam applications with steel pipes, featuring high-temperature carded fiberglass gaskets.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2814406

Technical Specifications

• Size: 1" IPS
• Type: Style 90
• Application: Low Pressure Steam
• Dresser Part Number: 0090-0002-639
• Overall Length: 5 inches
• Gasket Type: Carded Glass Hi-Temp
• Material: Cast Iron
• Coating: E-Coated
• Maximum Pressure: 50 PSI
• Maximum Temperature: 1200 Degrees F
• APR Part Number: 1618076
