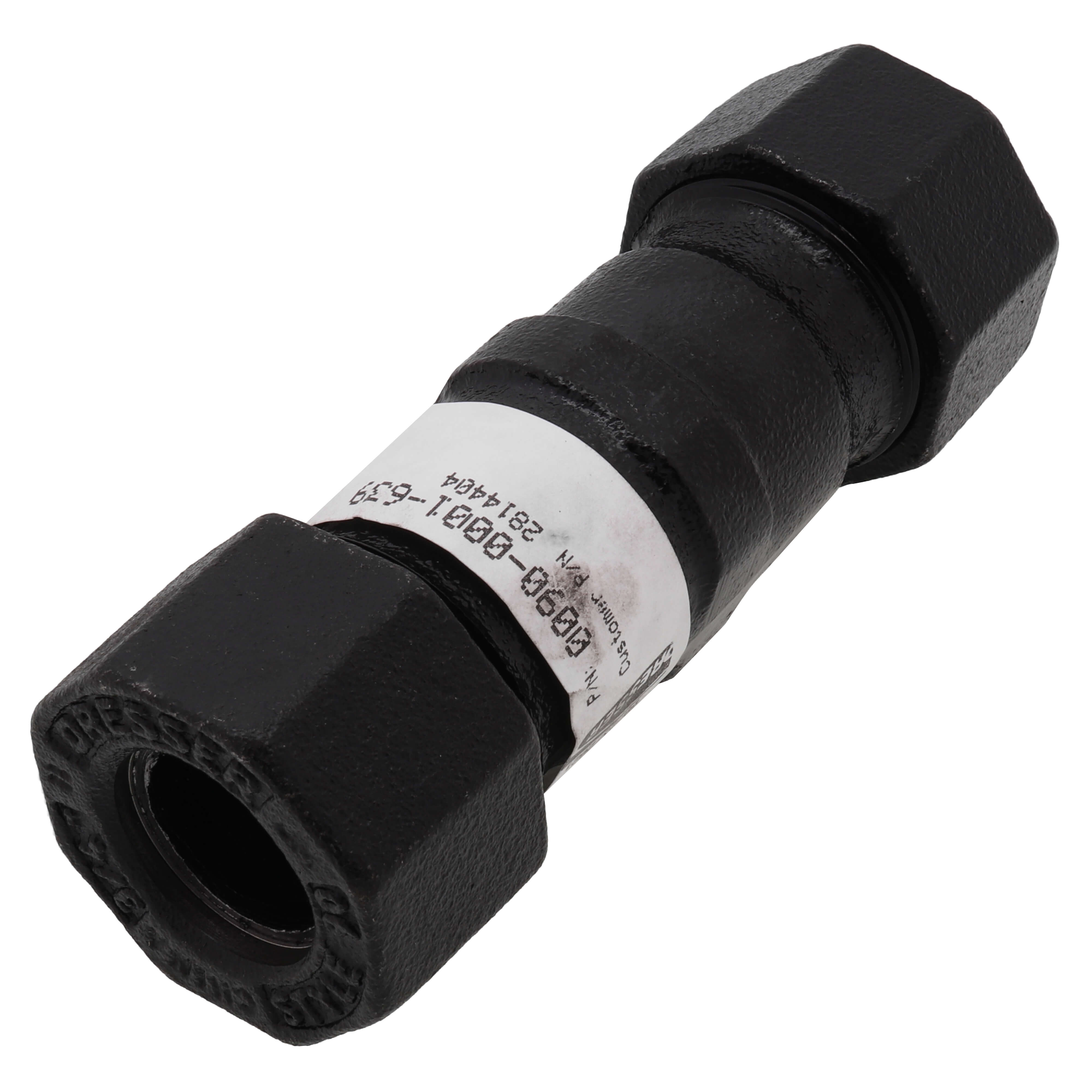

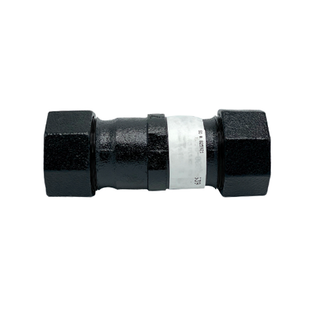

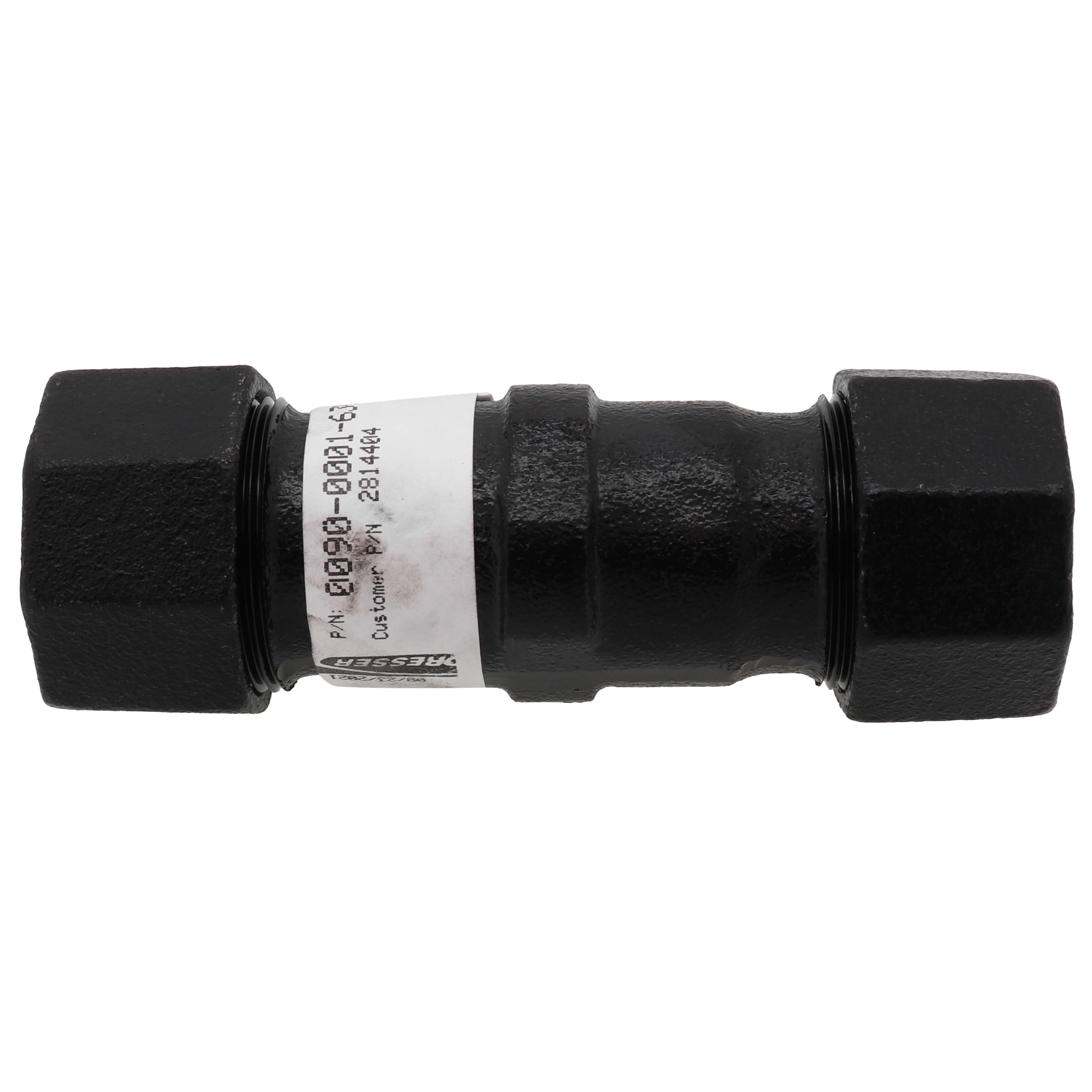

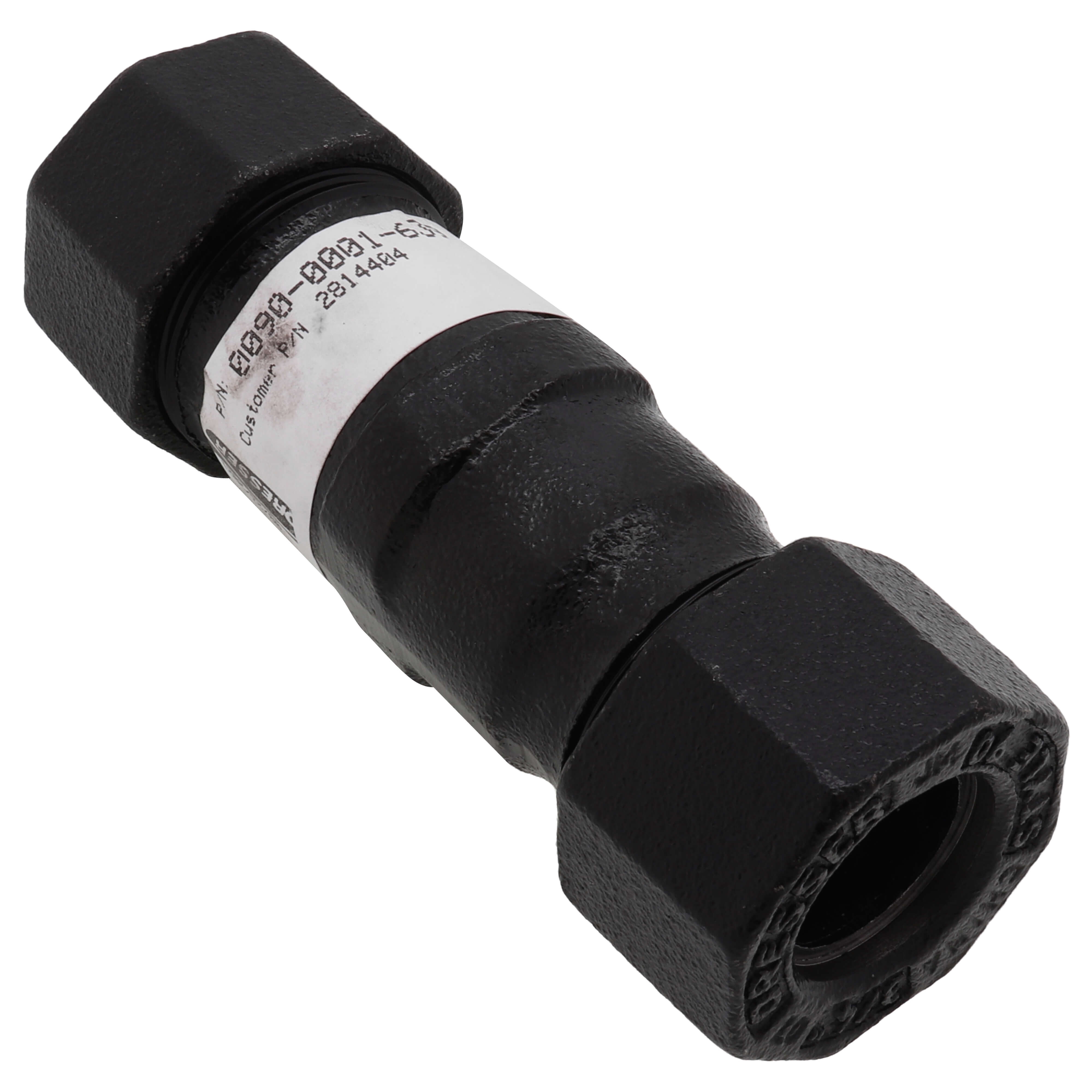

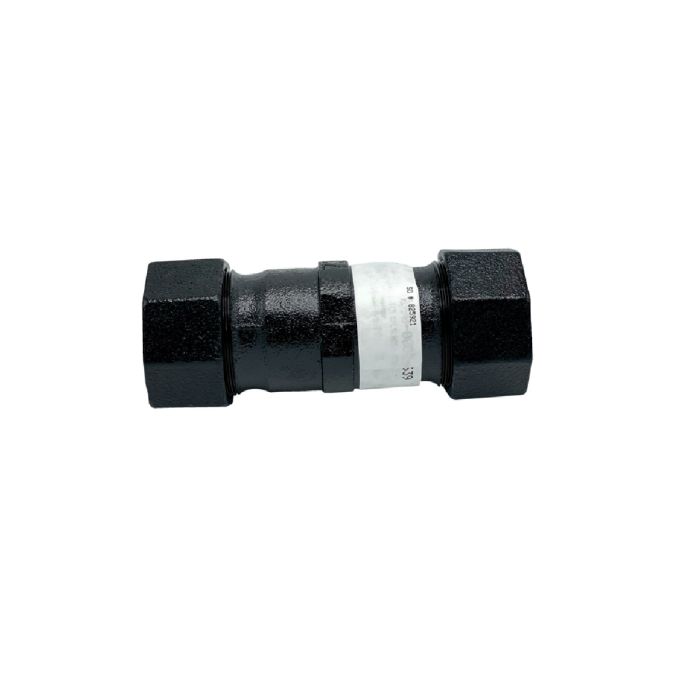

Wal-Rich 2814404 style 90 steam dresser coupling 3/4^

Product Description

The WAL-RICH 2814404 is a 3/4-inch IPS Style 90 steam dresser coupling designed for low-pressure steam applications with steel pipes. It features carded fiberglass gaskets capable of withstanding temperatures up to 1200 degrees Fahrenheit. This cast iron coupling is E-coated for durability and has an overall length of 5 inches, making it suitable for high-temperature environments. It is rated for a maximum pressure of 50 PSI.

• Designed for low-pressure steam applications with steel pipes.
• Features carded fiberglass gaskets, withstanding temperatures up to 1200 degrees Fahrenheit.
• Constructed from E-coated cast iron for durability.

Product Highlights

Durable cast iron Style 90 coupling with high-temperature carded glass gaskets for low-pressure steam applications.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2814404

Technical Specifications

• Gasket Type: Carded Glass Hi-Temp Gaskets
• Material: Cast Iron
• Coating: E-Coated
• Maximum Pressure: 50 PSI
• Maximum Temperature: 1200 Degrees F
• Connection Size: 3/4"
• Fitting Connection Type: IPS
• Product Type: Coupling
• Style: Style 90
