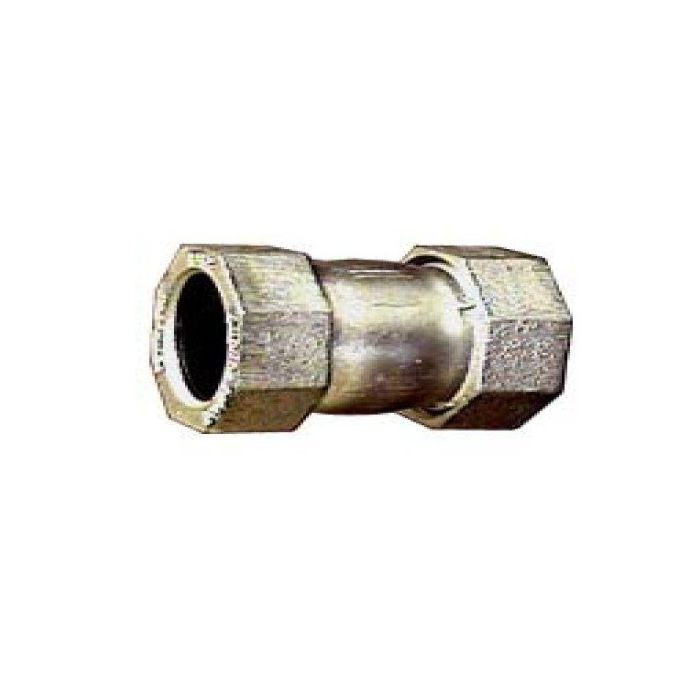

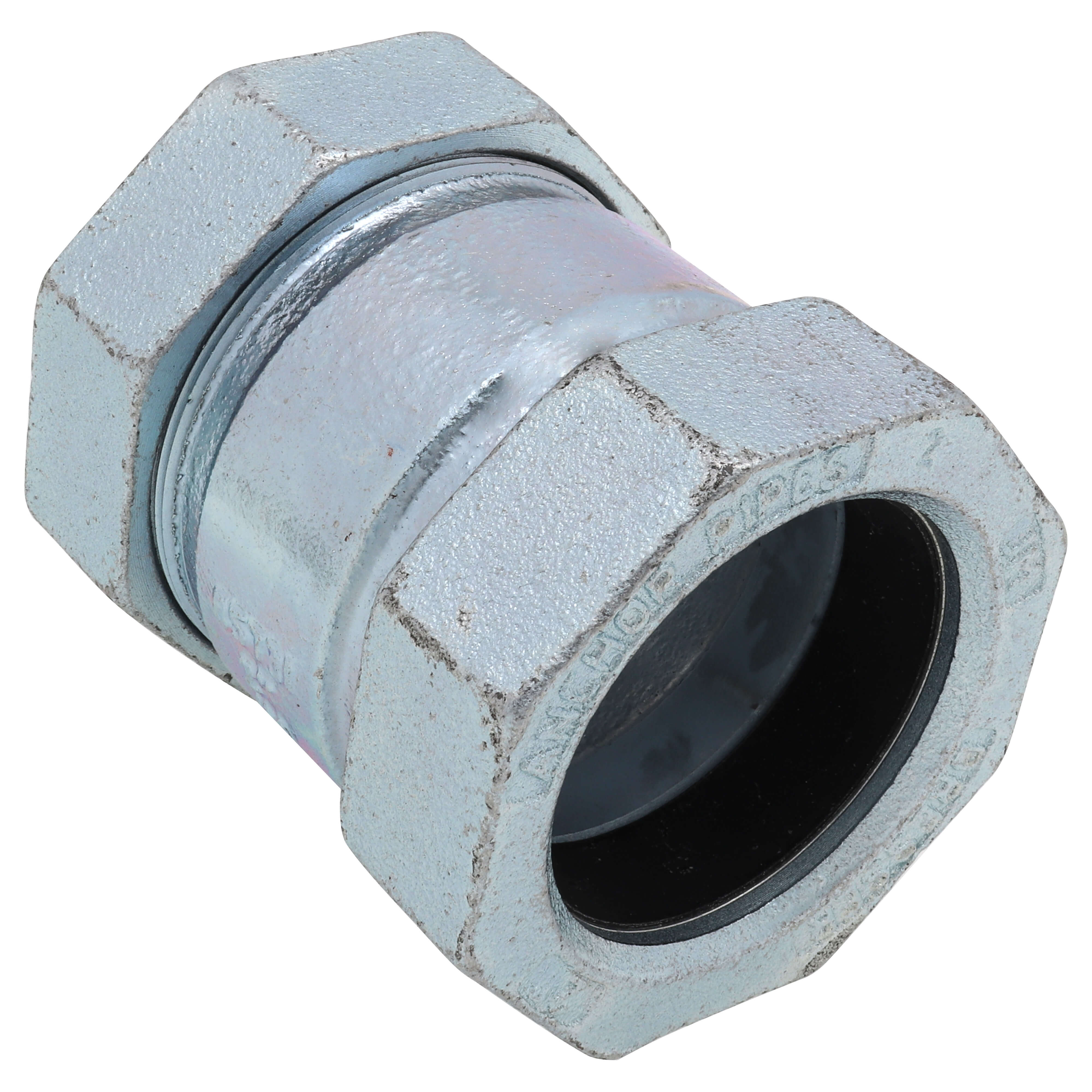

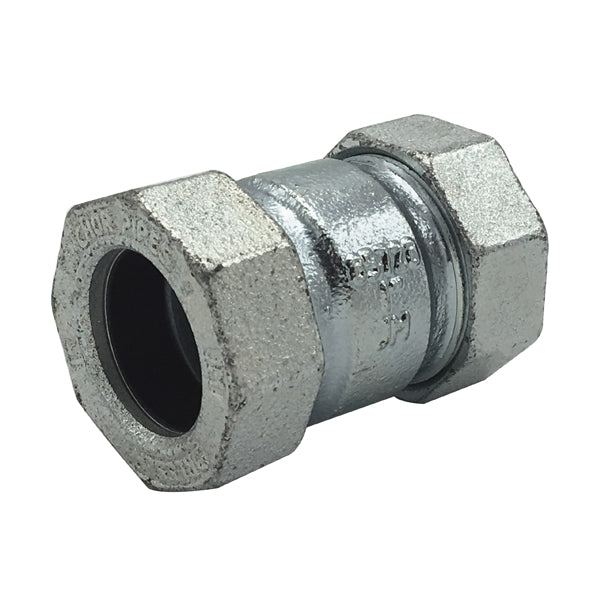

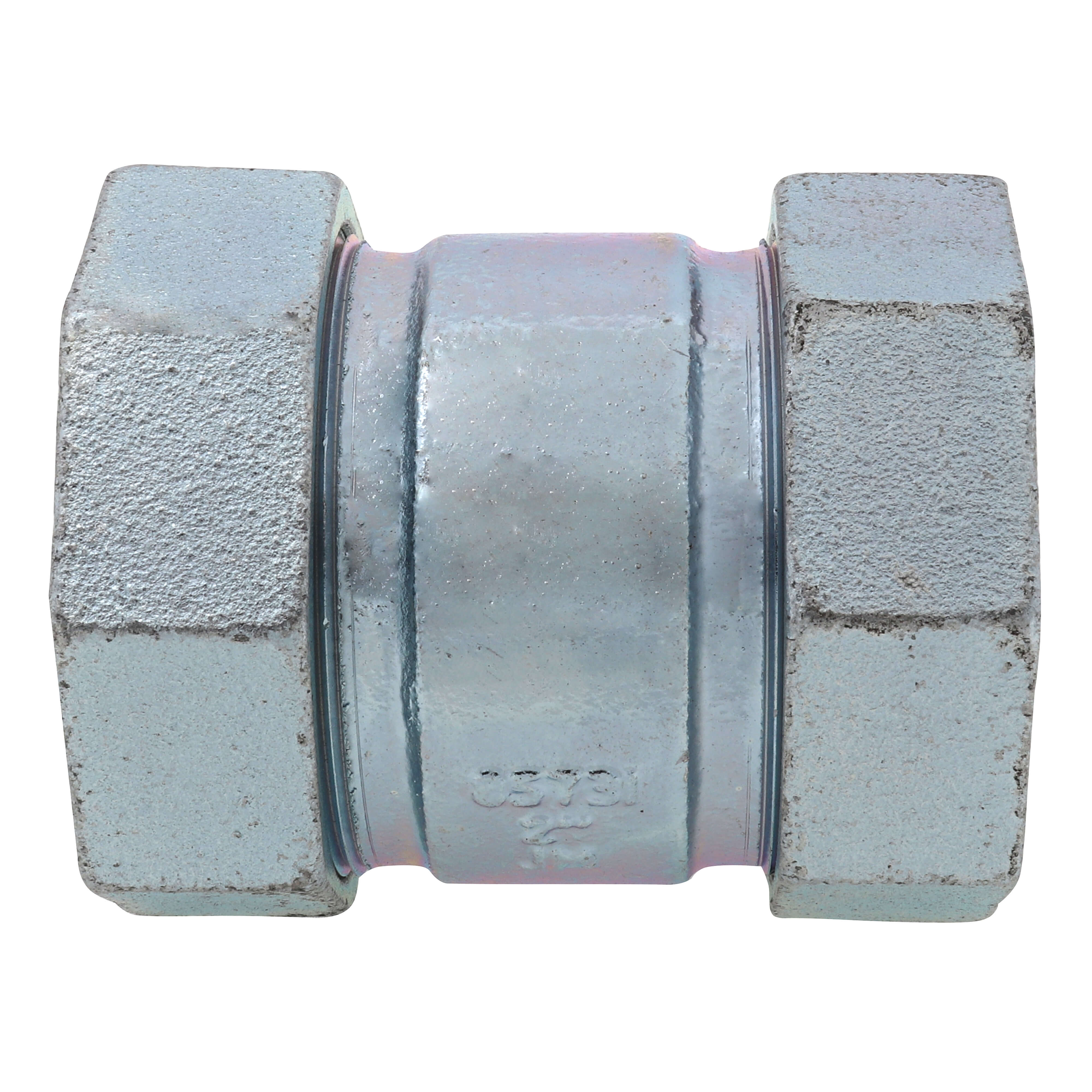

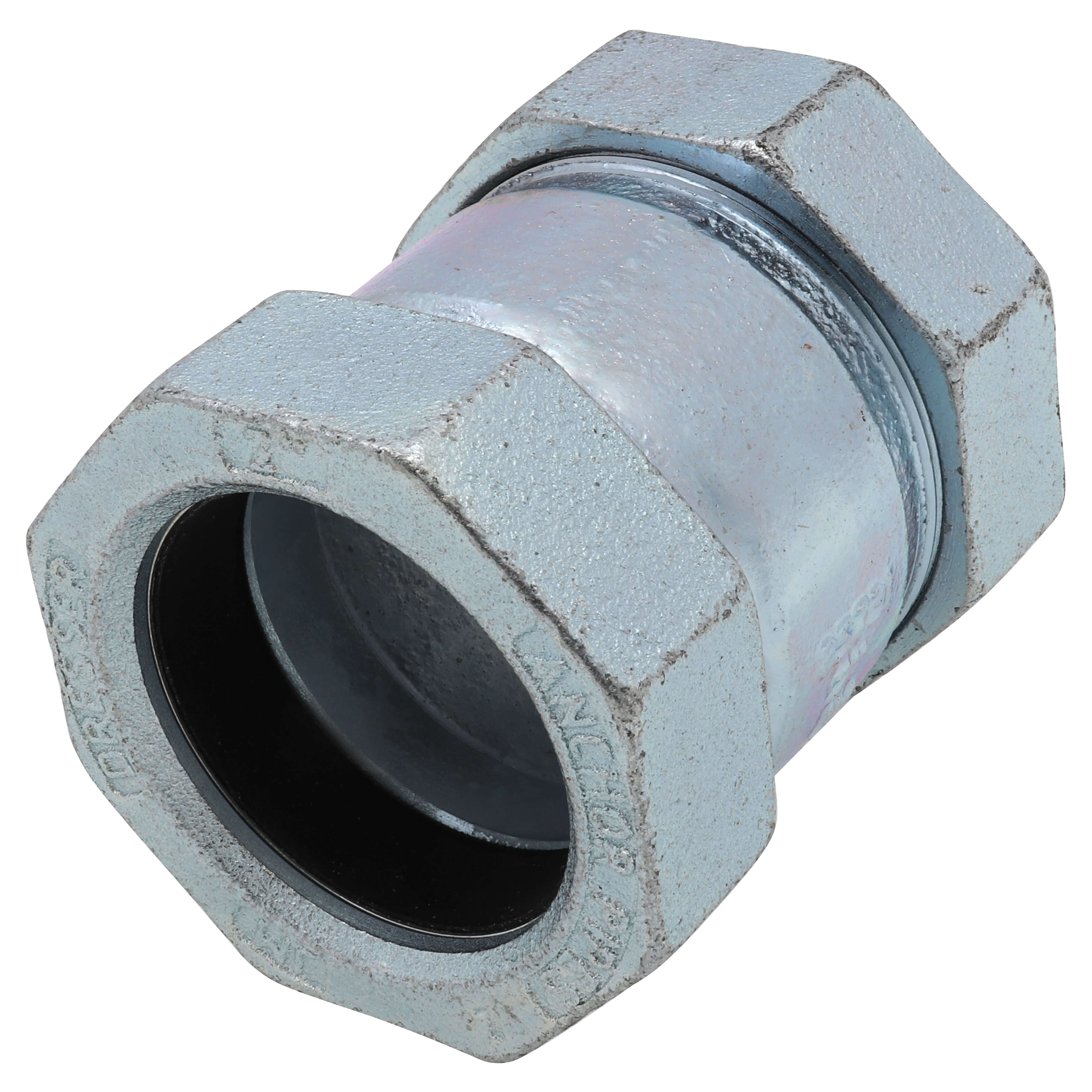

Wal-Rich 2804212 2 inches IPS Style 65 Water Service Compression Dresser Coupling for Steel Pipe Short

Product Description

The WAL-RICH 2804212 is a 2" IPS Style 65 Water Service Compression Dresser Coupling designed for steel pipe. This short coupling facilitates quick installation onto plain-end pipe or tubing for water service applications. It features a malleable iron construction with an electro-galvanized finish and Armored Grade 27 Gaskets. The coupling is rated for a maximum pressure of 150 PSI and a maximum temperature of 150 Degrees F, providing a flexible and uniform joint.

• Designed for quick installation on plain-end pipe or tubing in water service applications.
• Features a flexible union with resilient gasket sealing to absorb expansion, contraction, and vibration.
• Constructed from malleable iron with an electro-galvanized finish and Armored Grade 27 Gaskets.

Product Highlights

Quick-install compression fitting for steel pipe, ensuring a uniform and flexible joint without threading.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2804212

Technical Specifications

• Size: 2" IPS
• Type: Short, Style 65
• Application: Water
• Dresser Number: 0065-0007-003
• Overall Length: 3 inches
• Gaskets: Armored Grade 27
• Material: Malleable Iron
• Finish: Electro-galvanized
• Max Pressure: 150 PSI
• Max Temperature: 150 Degrees F
• GTIN: 730284066385
