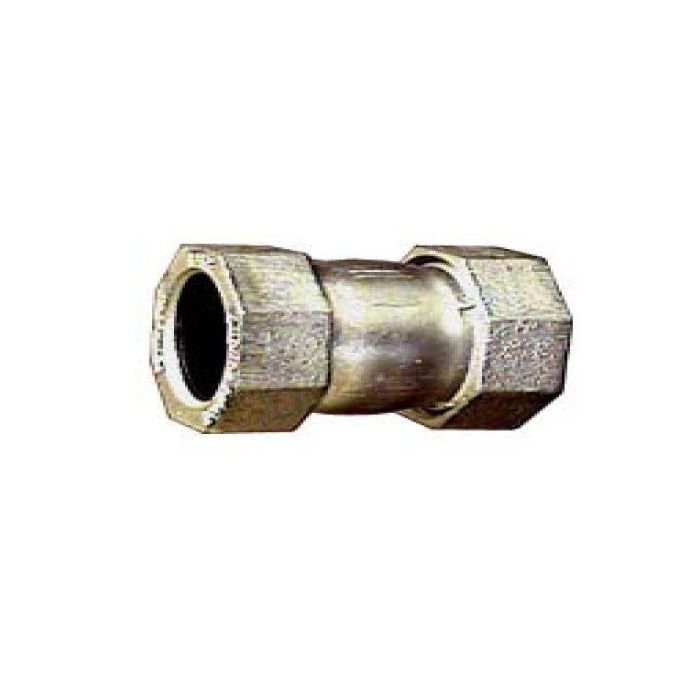

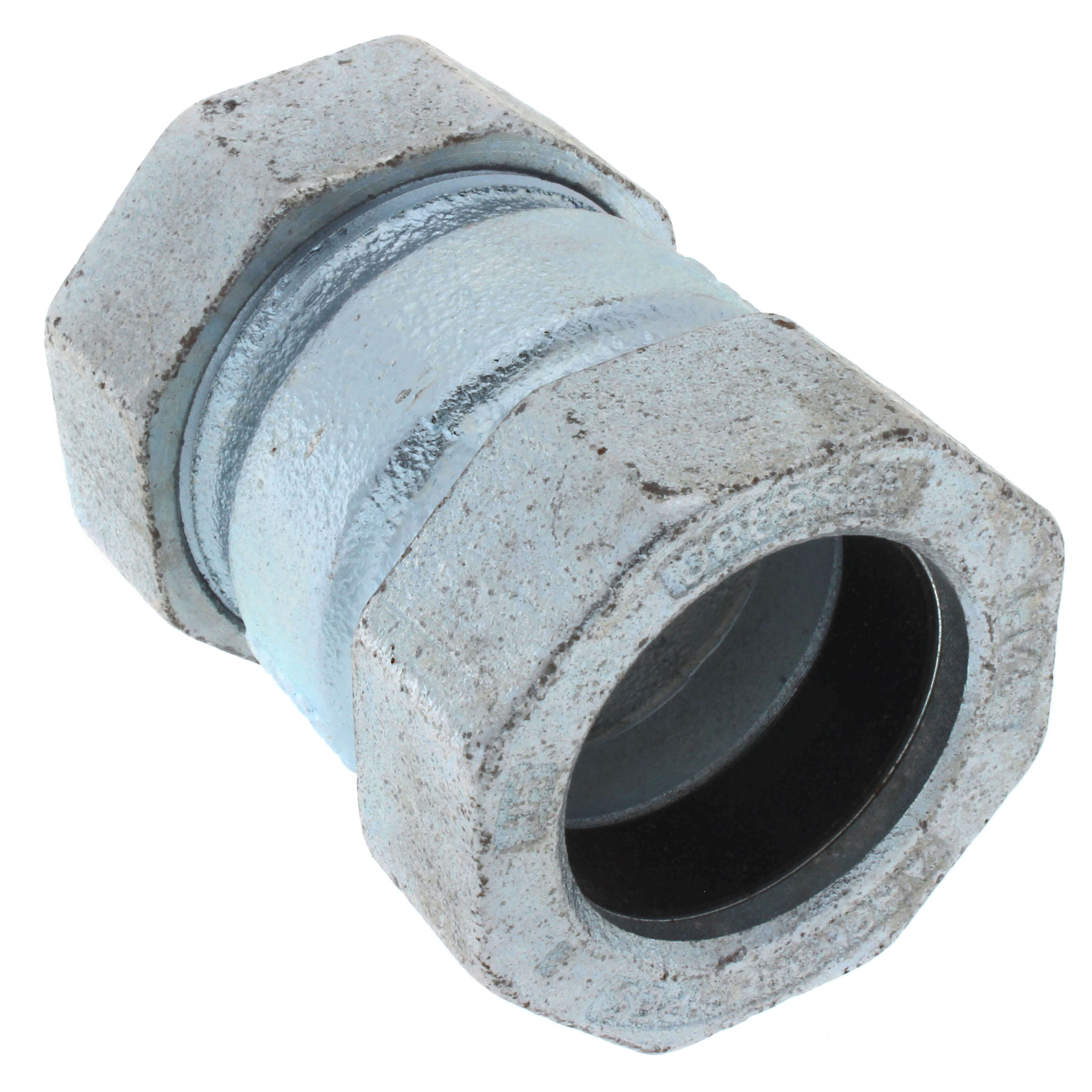

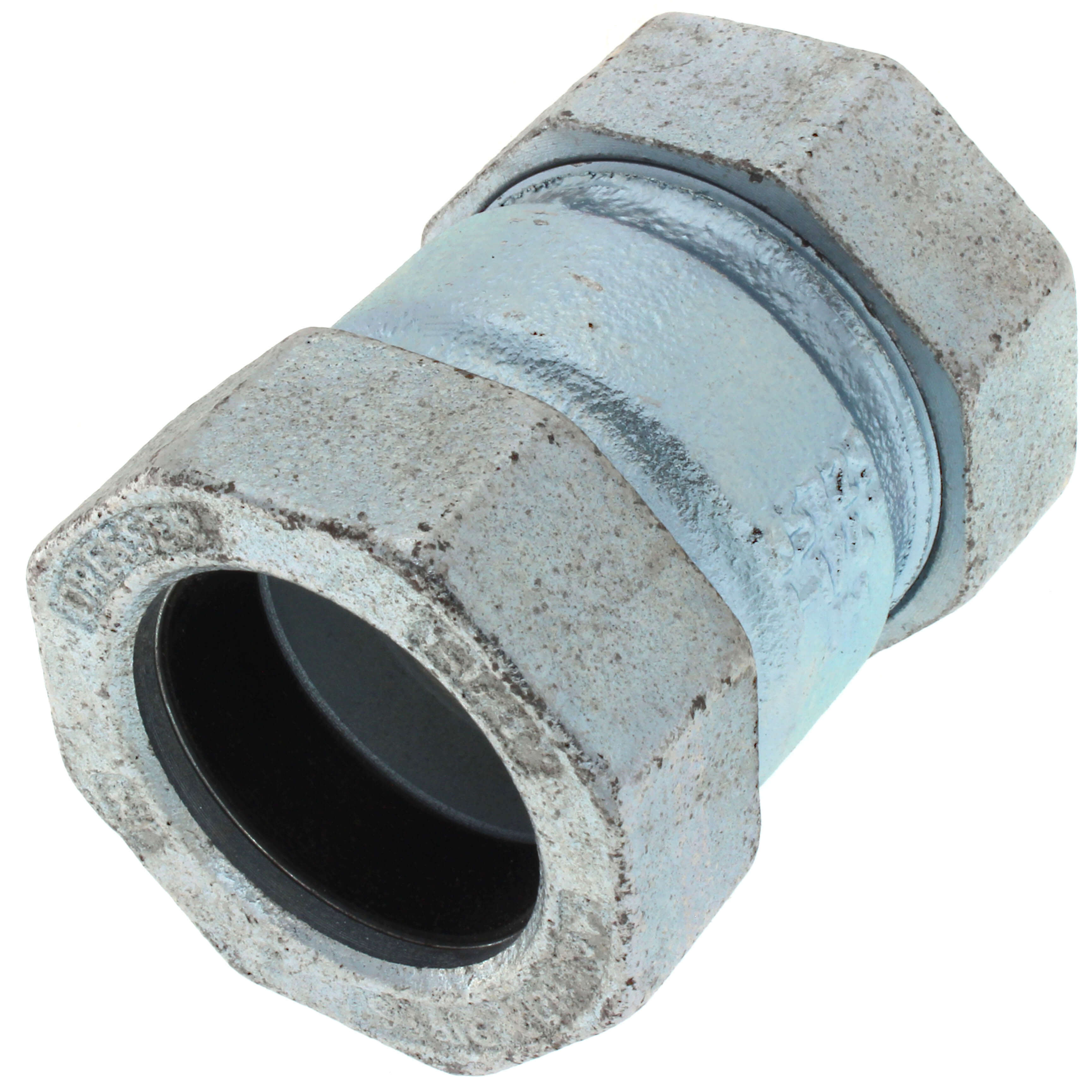

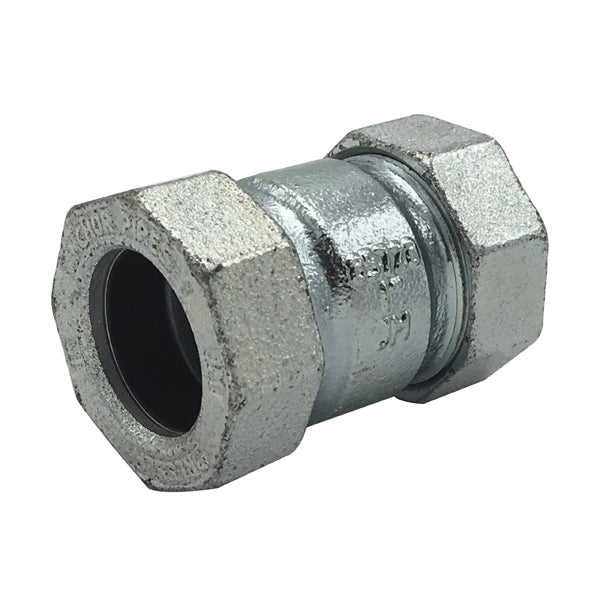

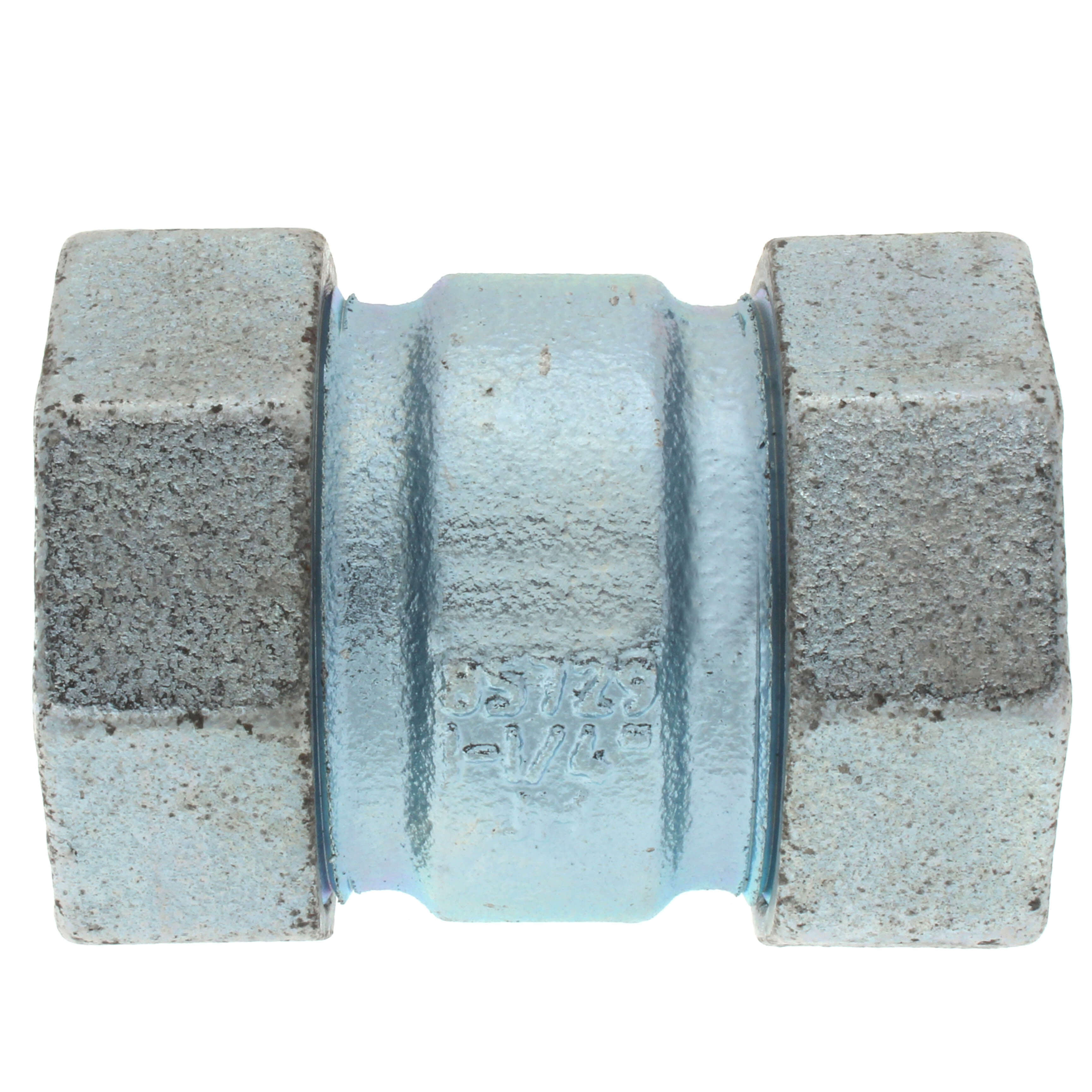

Wal-Rich 2804208 1-1/4 inches ips style 65 water service compression dresser coupling for steel pipe (short)

Product Description

The WAL-RICH 2804208 is a 1-1/4" IPS Style 65 Water Service Compression Dresser Coupling for steel pipe. This short coupling, made from electro-galvanized malleable iron, installs quickly onto plain-end pipe without threading. It features a flexible union with resilient gaskets, absorbing expansion and vibration. The design creates a uniform joint, maintaining pipe wall thickness. Rated for 150 PSI maximum pressure and 150 degrees F maximum temperature, it is suitable for water service applications.

• For water service applications.
• Quick installation on plain-end pipe or tubing without threading or flaring.
• Flexible union design absorbs expansion, contraction, and vibration.

Product Highlights

This short, electro-galvanized malleable iron coupling offers tool-free installation, easy disassembly, and creates a uniform joint, rated for 150 PSI and 150 degrees F.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2804208

Technical Specifications

• MPN: 2804208
• Brand: WAL-RICH
• Size: 1-1/4" IPS
• Type: Short, Style 65
• Application: Water
• Dresser Number: 0065-0005-003
• Gasket Type: Armored Grade 27 Gaskets
• Material: Malleable Iron
• Finish: Electro-galvanized
• Max Pressure: 150 PSI Max
• Max Temperature: 150 Degrees F Max Temp
