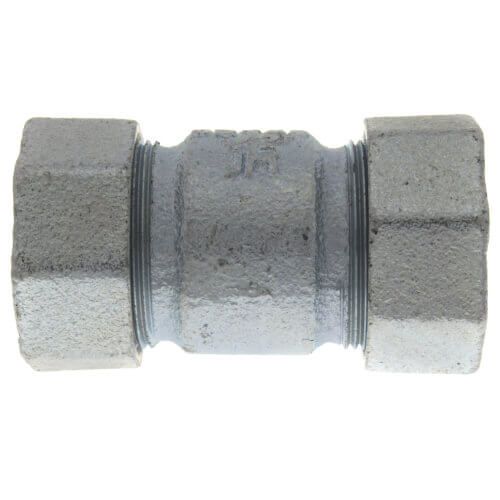

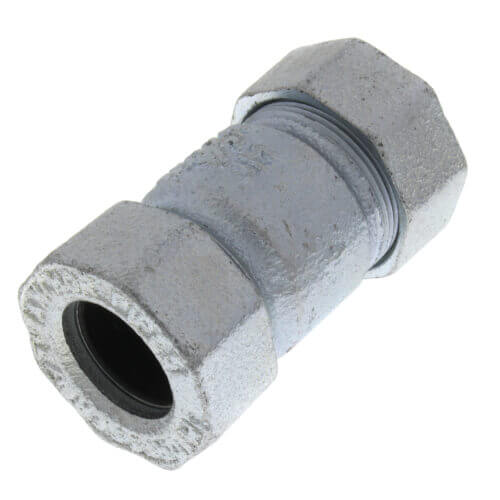

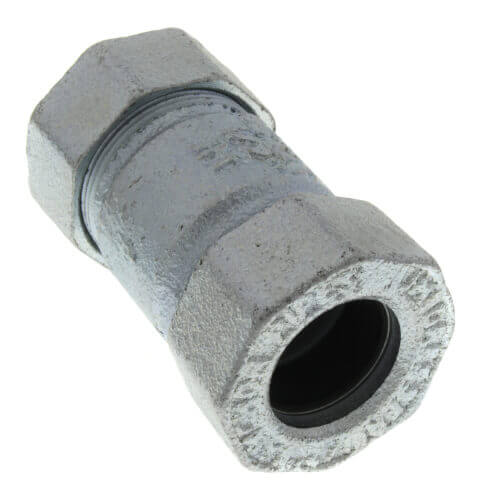

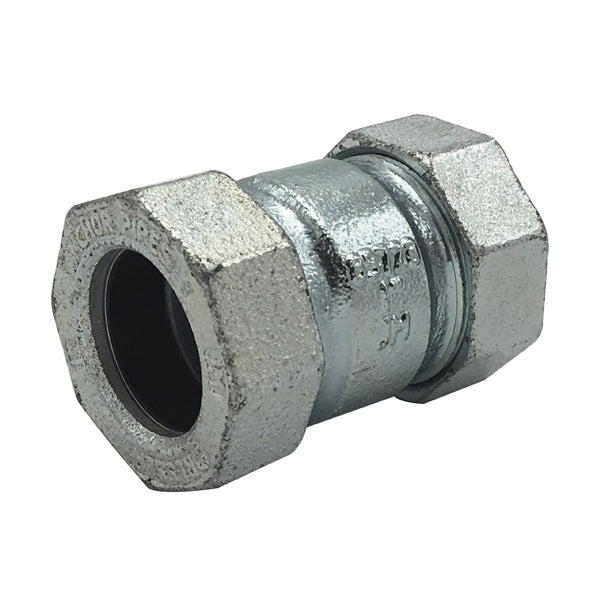

Wal-Rich 2804206 Style 65 Water Service Compression Dresser Coupling for Steel Pipe 1 Inch IPS

Product Description

The WAL-RICH 2804206 is a 1 inch IPS Style 65 Water Service Compression Dresser Coupling designed for steel pipe applications. This short coupling facilitates quick installation onto plain-end pipe or tubing, eliminating the need for threading or flaring. It creates a flexible union, absorbing expansion and vibration, and maintains uniform wall thickness. Constructed from malleable iron with an electro-galvanized finish, it is rated for a maximum pressure of 150 PSI and a maximum temperature of 150 degrees F.

• Quick installation on plain-end pipe without threading, flaring, or exact pipe fitting.
• Flexible union design with resilient gasket sealing absorbs expansion, contraction, and vibration.
• Creates a uniform joint, maintaining consistent pipe wall thickness for enhanced strength.

Product Highlights

This Style 65 compression coupling offers a durable, flexible, and easy-to-install solution for water service steel pipe connections.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2804206

Technical Specifications

• Nominal Size: 1 Inch IPS
• Length Type: Short
• Application: Water Service
• Dresser Model Number: 0065-0004-003
• Overall Length: 2.25 Inches

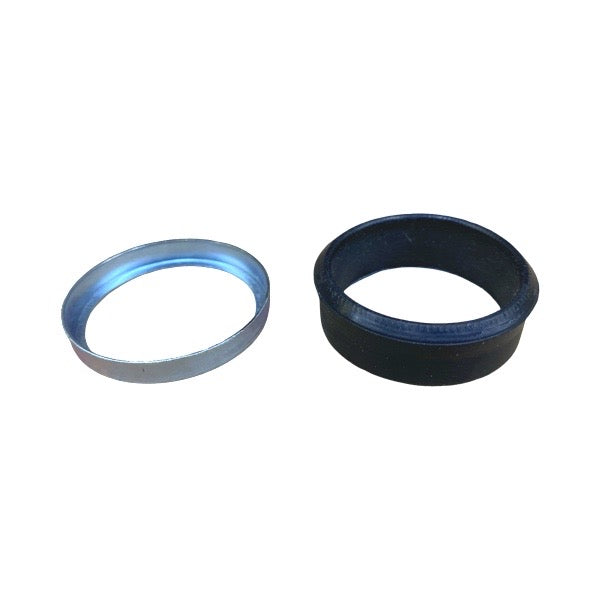

• Gasket Material: Armored Grade 27
• Material: Malleable Iron
• Finish: Electro-galvanized
• Maximum Pressure: 150 PSI
• Maximum Temperature: 150 Degrees F
• End Style: Compression
• Fitting Type: Coupling
• Series: Style 65
