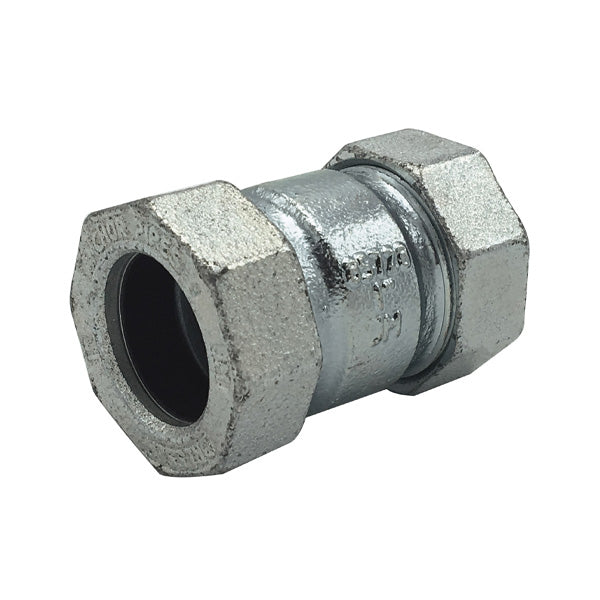

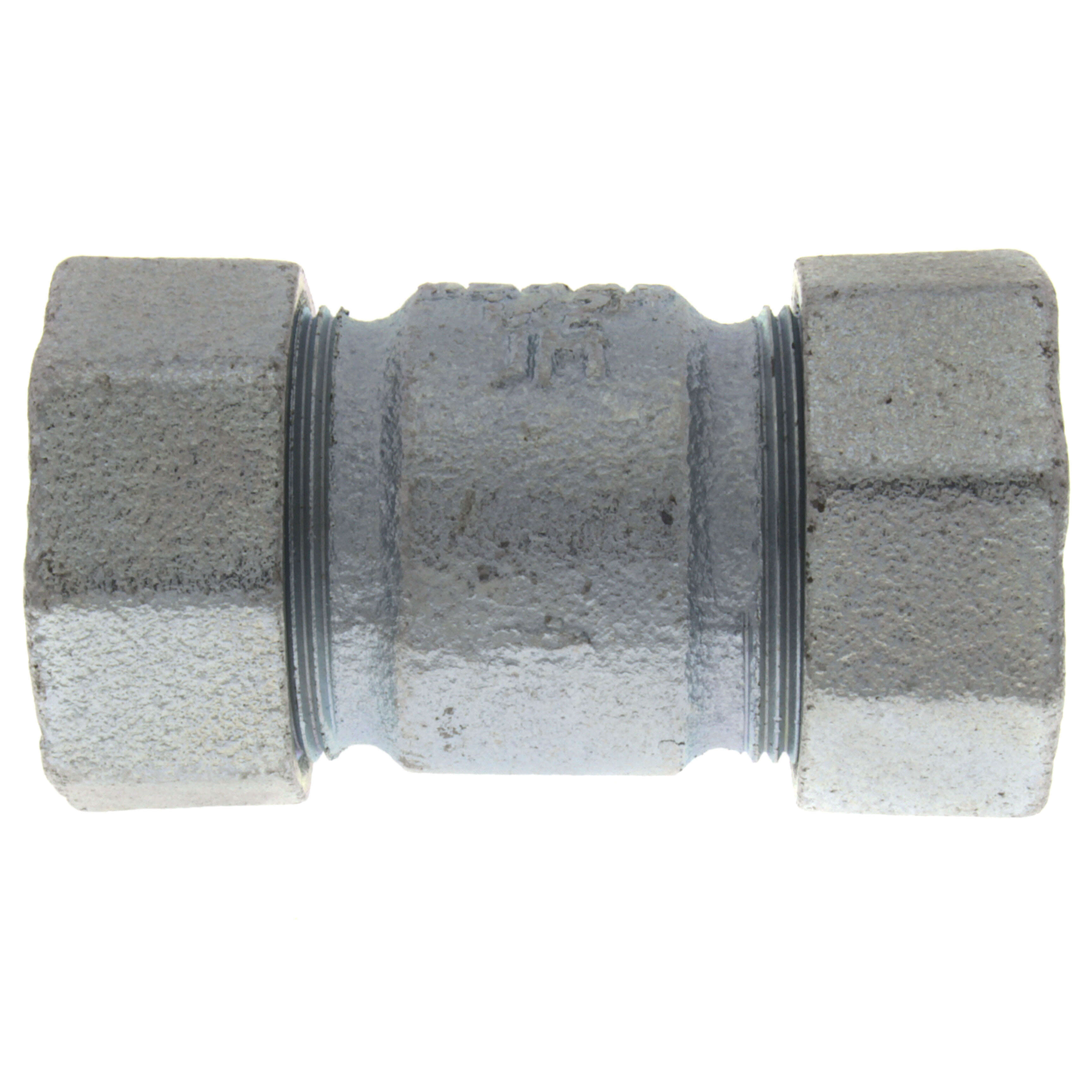

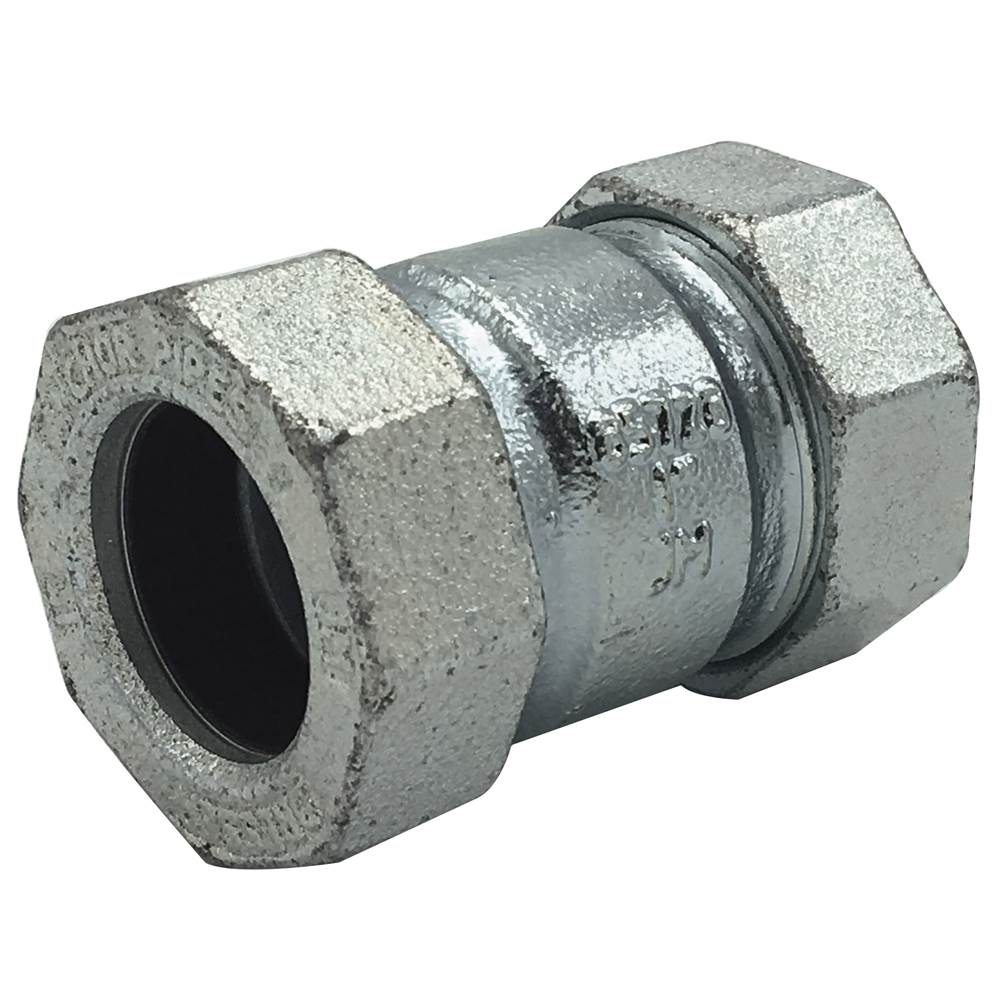

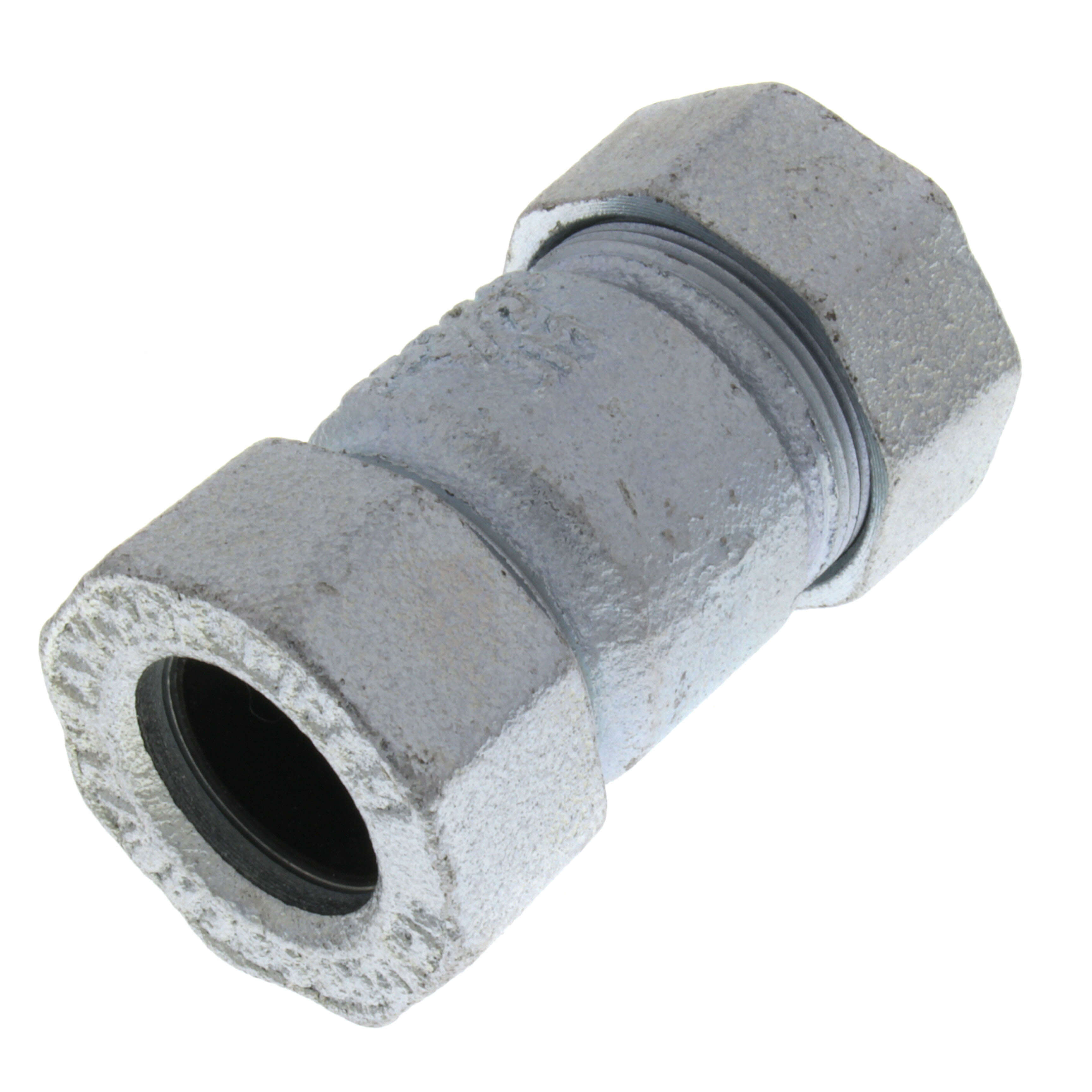

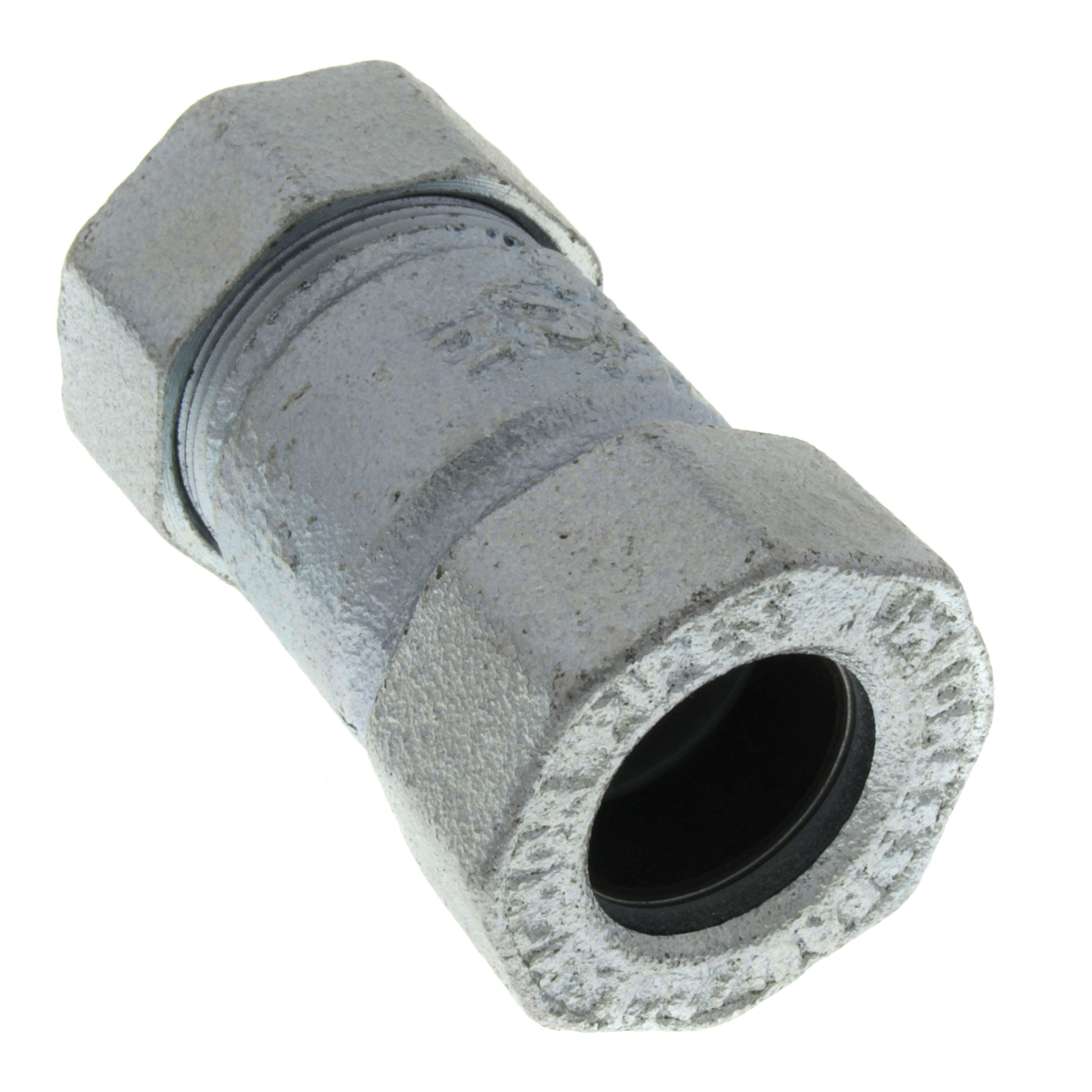

Wal-Rich 2804202 1/2 inches IPS Style 65 Water Service Compression Dresser Coupling for Steel Pipe Short

Product Description

The WAL-RICH 2804202 is a 1/2" IPS Style 65 Water Service Compression Dresser Coupling for Steel Pipe, designed for water service applications. This short coupling allows for quick installation onto plain-end pipe or tubing, completing connections in less than a minute without threading or flaring. Its flexible union features a resilient gasket sealing principle, providing permanent flexibility and absorbing expansion, contraction, vibration, stresses, and deflection movement. It also helps create a uniform joint by allowing plain-end pipe use, maintaining wall thickness.

• Designed for water service applications.
• Dresser Style 65 compression fittings install quickly onto plain-end pipe or tubing, allowing connection in less than a minute without threading, flaring, or exact pipe fitting.
• Flexible Union: Resilient gasket sealing principle provides permanent flexibility while absorbing expansion, contraction, vibration, stresses, and deflection movement.

Product Highlights

Quick-install compression coupling for steel pipe, featuring a flexible union and uniform joint creation.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2804202

Technical Specifications

• Size: 1/2" IPS
• Type: Short
• Application: Water
• Dresser Number: 0065-0002-003
• Overall Length: 2 inches
• Gasket Type: Armored Grade 27
• Material: Malleable Iron
• Finish: Electro-galvanized
• Maximum Pressure: 150 PSI
• Maximum Temperature: 150 Degrees F
• Style: 65
• Product Type: Coupling
