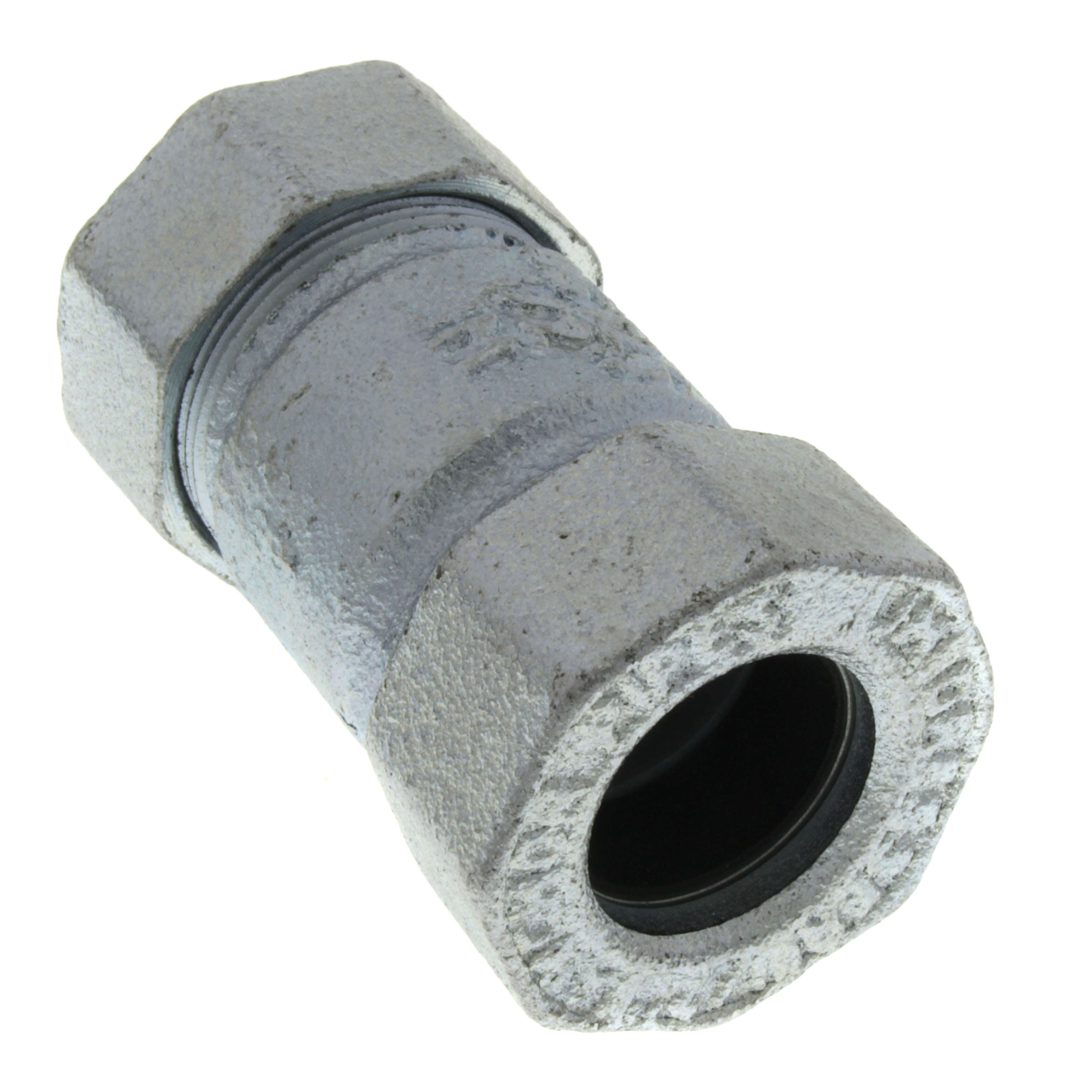

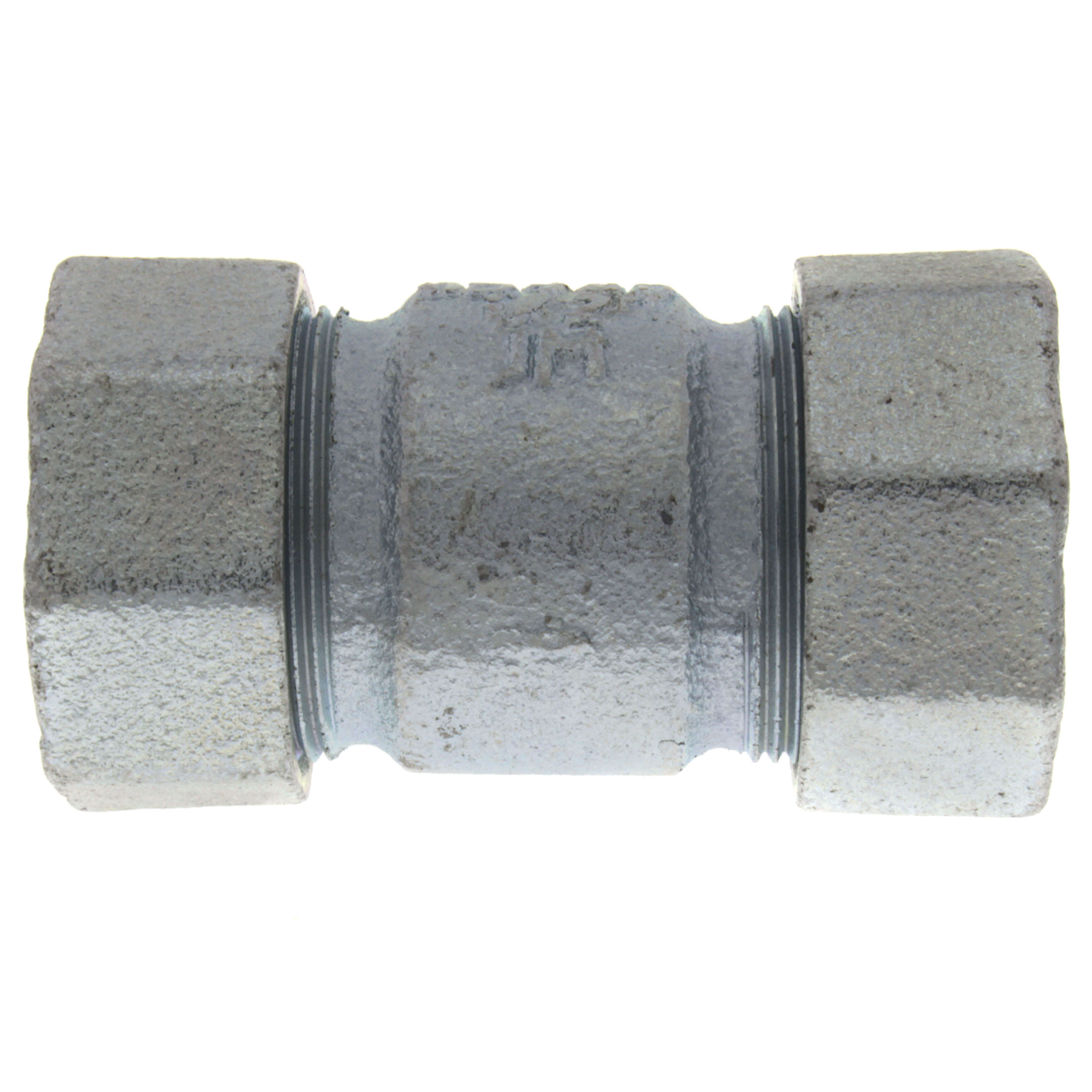

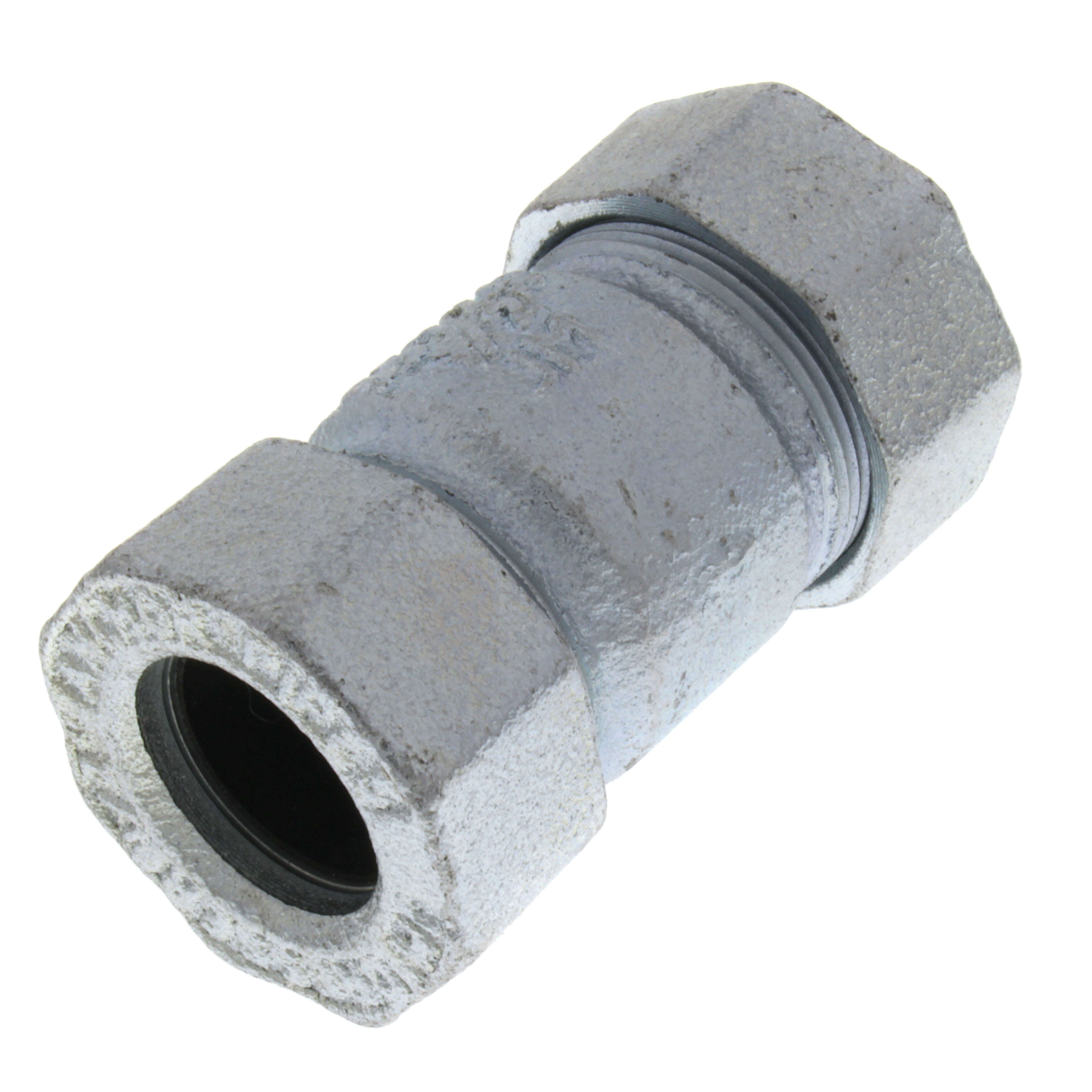

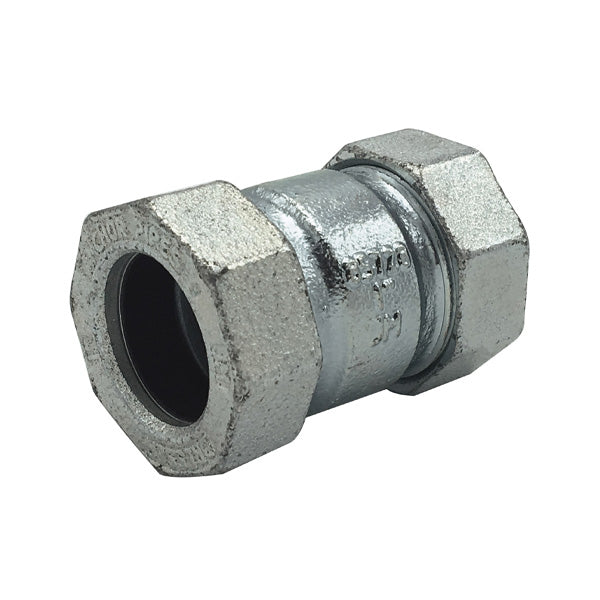

Wal-Rich 2804202 1/2 inches IPS Style 65 Water Service Compression Dresser Coupling for Steel Pipe (short)

Product Description

The WAL-RICH 2804202 is a 1/2" IPS Style 65 water service compression dresser coupling for steel pipe. These Dresser Style 65 compression fittings install quickly onto plain-end pipe or tubing. The resilient gasket sealing principle provides permanent flexibility while absorbing expansion, contraction, vibration, stresses and deflection movement.

• For water service applications
• Dresser Style 65 compression fittings install quickly onto plain-end pipe or tubing
• Creates a Uniform Joint - With Dresser Style 65 compression fittings you can use plain-end pipe and maintain uniform wall thickness throughout every joint in your piping system.

Product Highlights

This coupling is designed for water service applications and allows for quick installation onto plain-end pipe or tubing, offering flexibility and absorbing movement.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2804202

Technical Specifications

• Size: 1/2" IPS
• Type: Short, Style 65
• Application: Water
• Dresser #: 0065-0002-003
• Attribute 2: 2" Overall Length

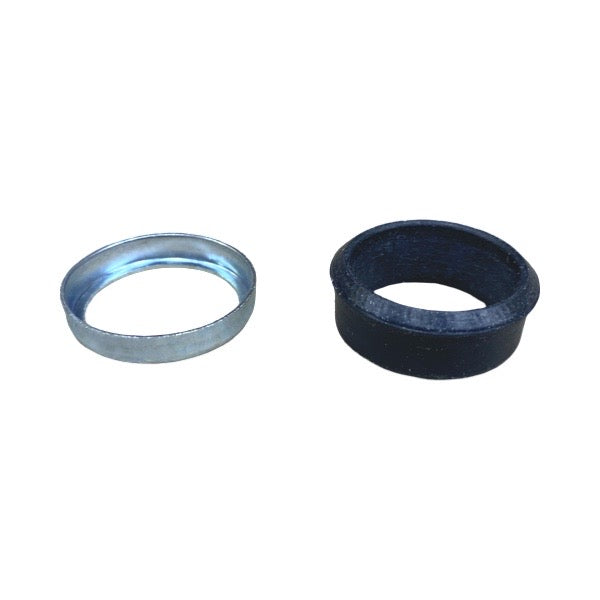

• Attribute 3: Armored Grade 27 Gaskets
• Attribute 4: Malleable Iron
• Attribute 5: Electro-galvanized
• Attribute 6: 150 PSI Max
• Attribute 7: 150 Degrees F Max Temp
• Material: Steel
• End Style: Compression
• Finish: Galvanized
• Fitting/Connector Type: Coupling
• Nominal Size: 1/2 In
• Pressure Rating: 150 psi
• Series: Style 65
• Temperature Rating: 150 deg F
• Product Type: Coupling
