Wal-Rich 2804012 2 inch style 65 galvanized long dresser coupling

Product Description

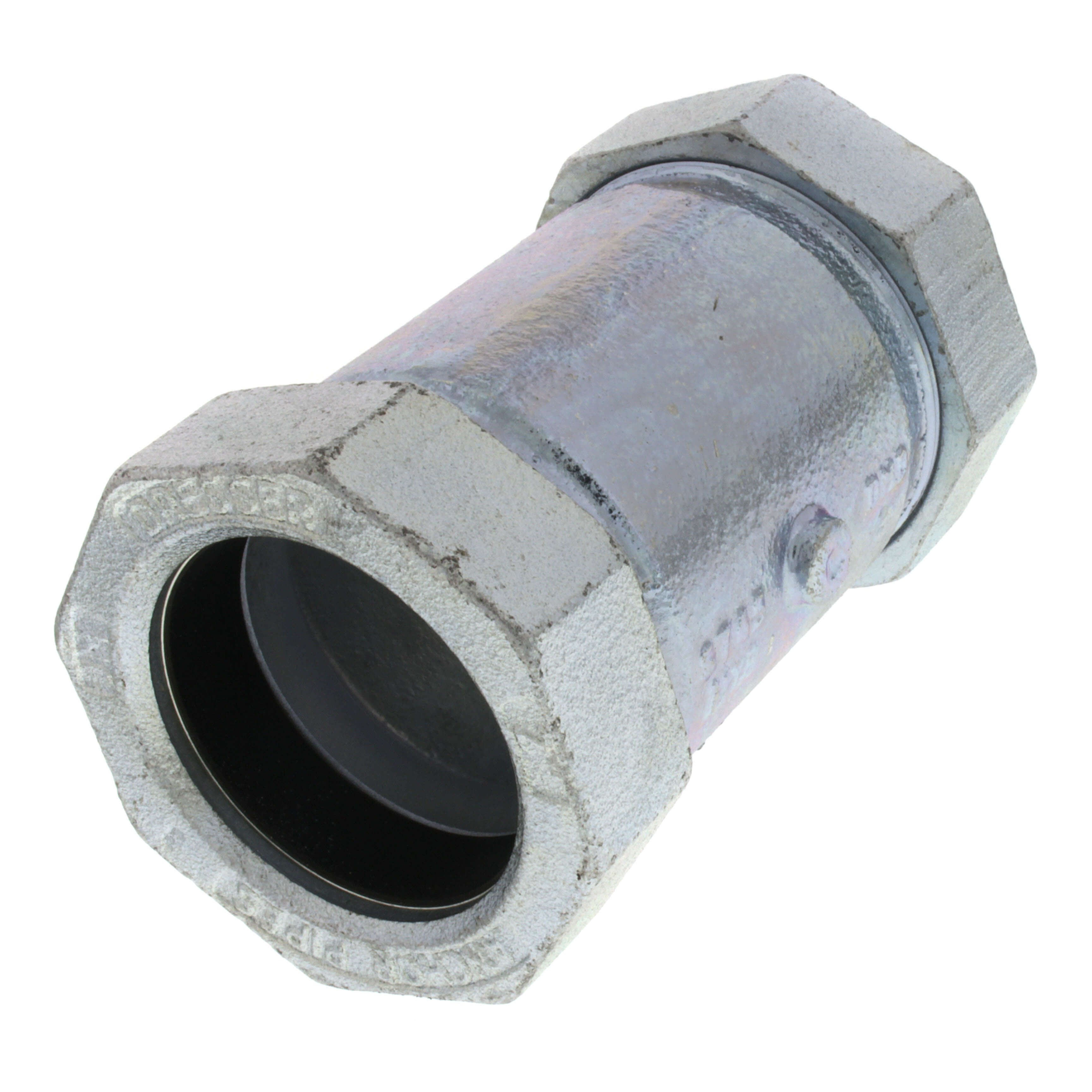

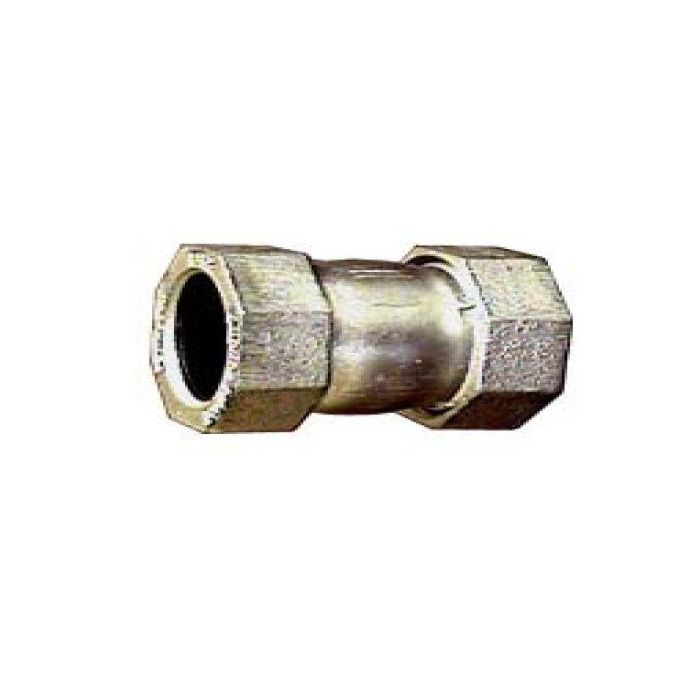

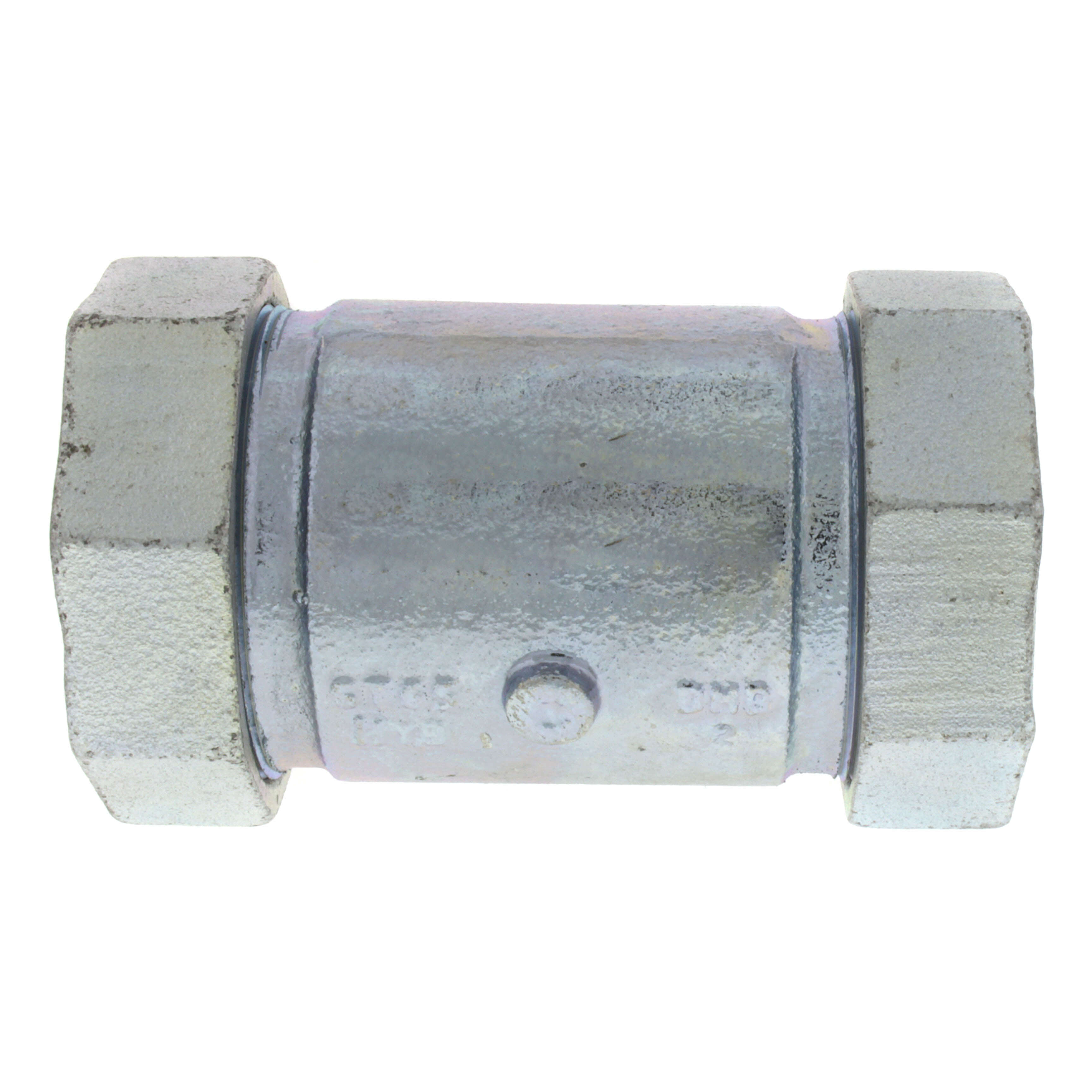

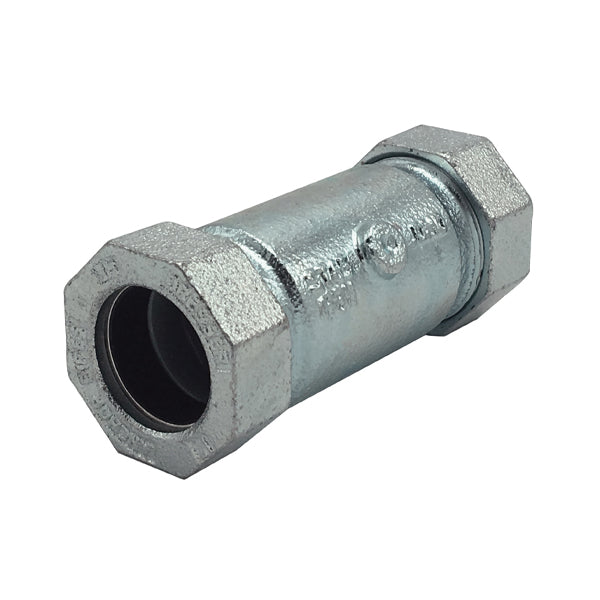

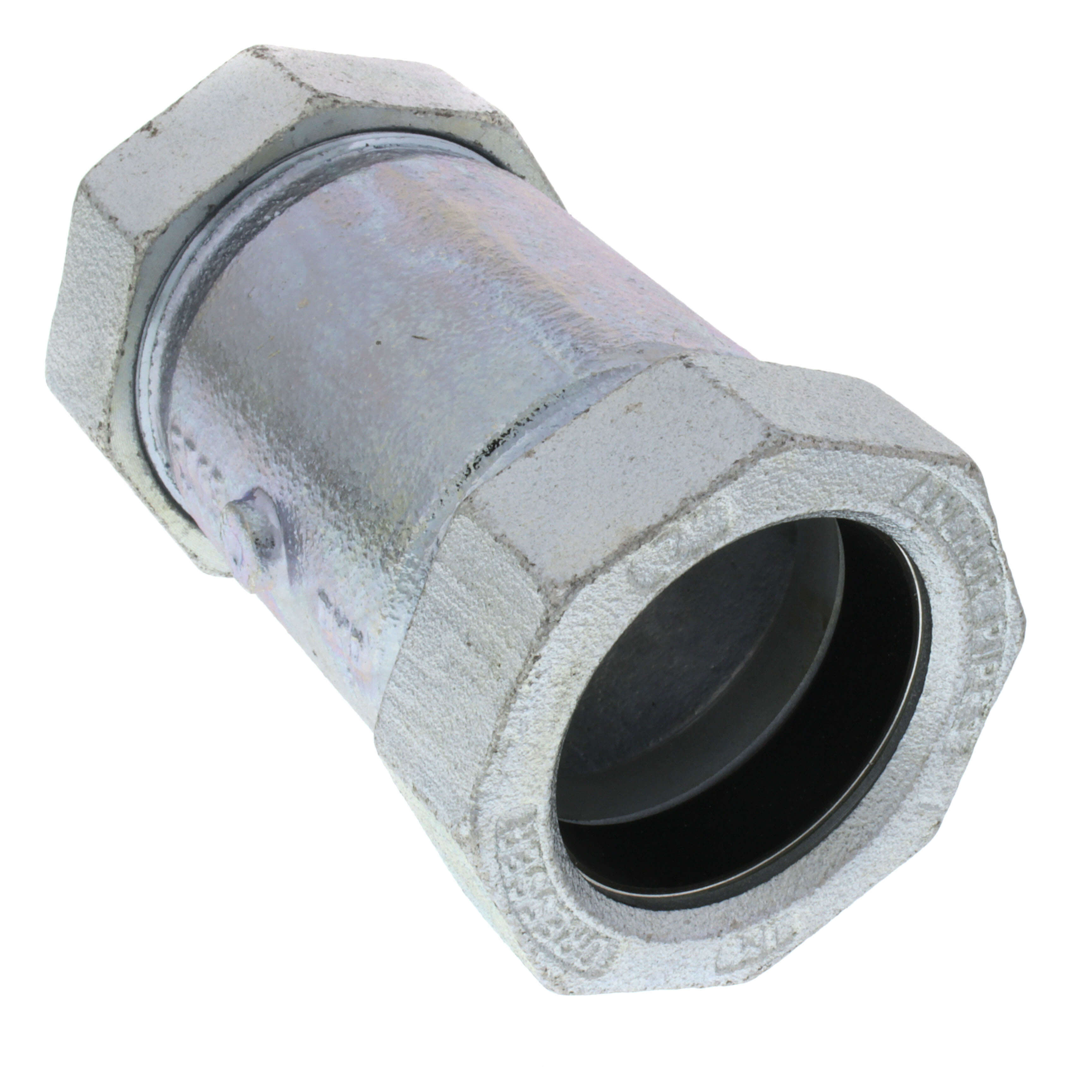

The WAL-RICH 2804012 is a galvanized long coupling fitting designed for steel pipe, pipeline, and water service applications. It features a compression x compression end connection, a 2-inch size, and an armored gasket. This coupling is rated for 150 PSI pressure and 150 degrees F temperature, ensuring secure connections.

• Galvanized finish for corrosion resistance.
• Compression x Compression end connection for easy installation.
• Suitable for steel pipe, pipeline, and water service applications.

Product Highlights

Quick installation onto plain-end pipe or tubing without threading or flaring, providing a flexible union that absorbs movement.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2804012
• Country of Origin: China

Technical Specifications

• Application: Steel Pipe, Pipeline, Water Service
• Category: Plumbing & Bath / Kitchen Fixtures
• End Connection: Compression x Compression
• Finish: Electro-galvanized
• Gasket Details: Armored Grade 27 Gaskets
• Gasket Supplied: Yes
• Pressure Rating: 150 PSI Max
• Series/Model: 65
• Size: 2 Inch
• Temperature Rating: 150 Degrees F Max Temp
• Type: Long
• UNSPSC Code: 40183107
• Dresser Number: 0065-0035-003
• Overall Length: 4 3/4"
• Material: Malleable Iron
• SKU: DRE65LC20
