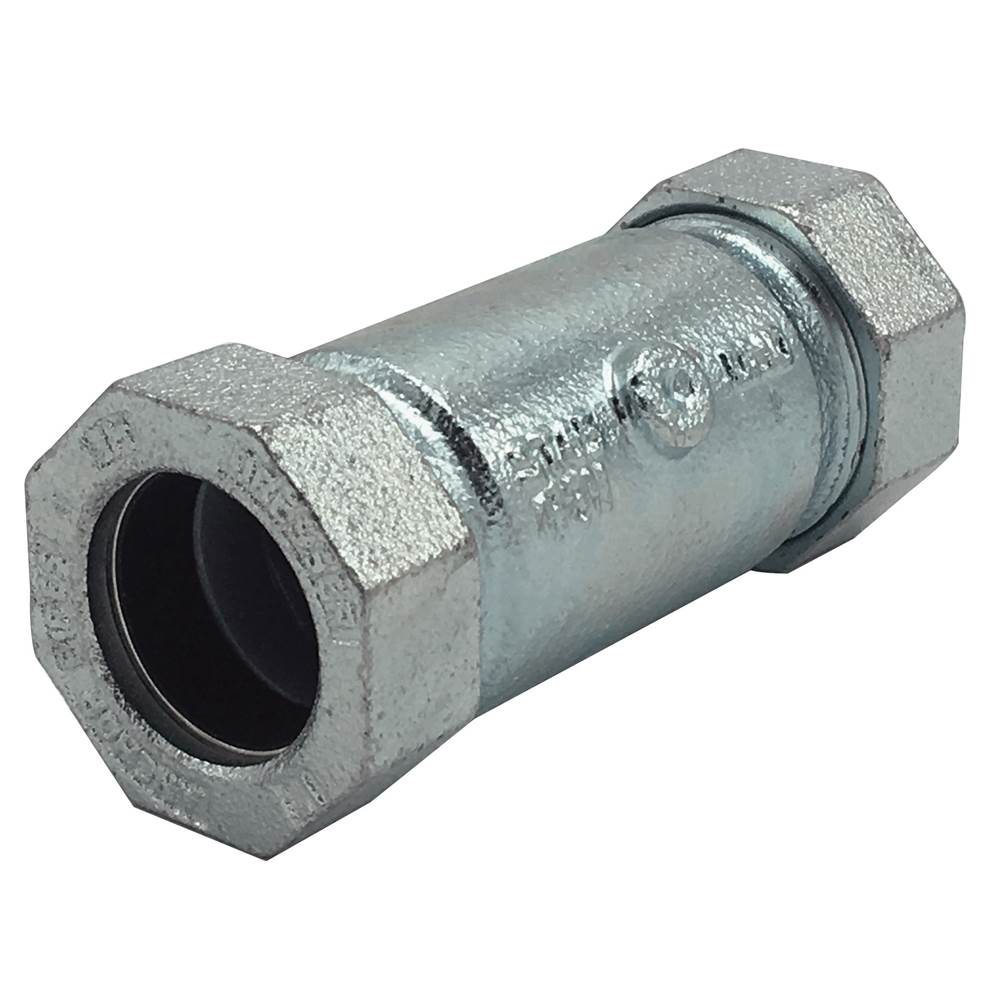

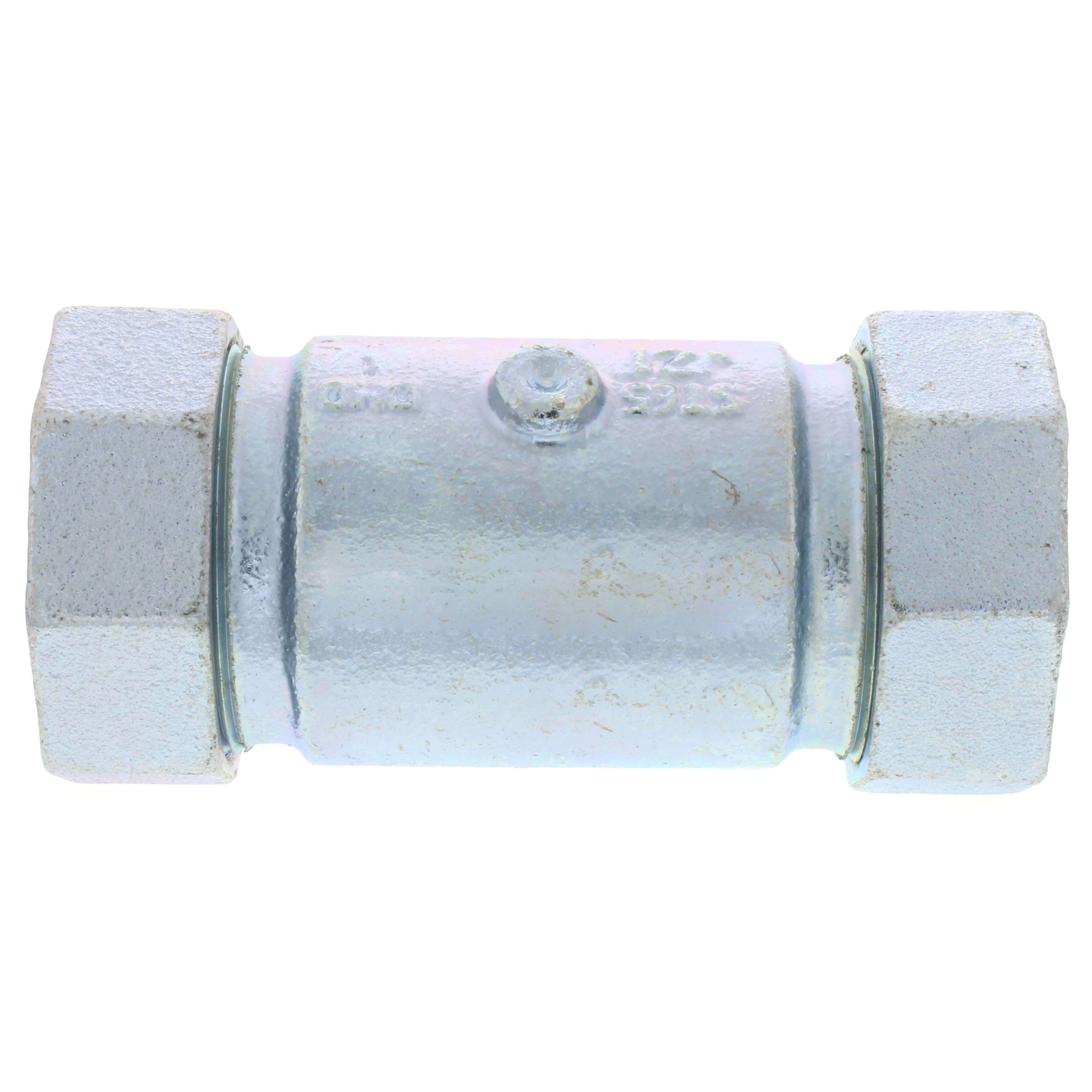

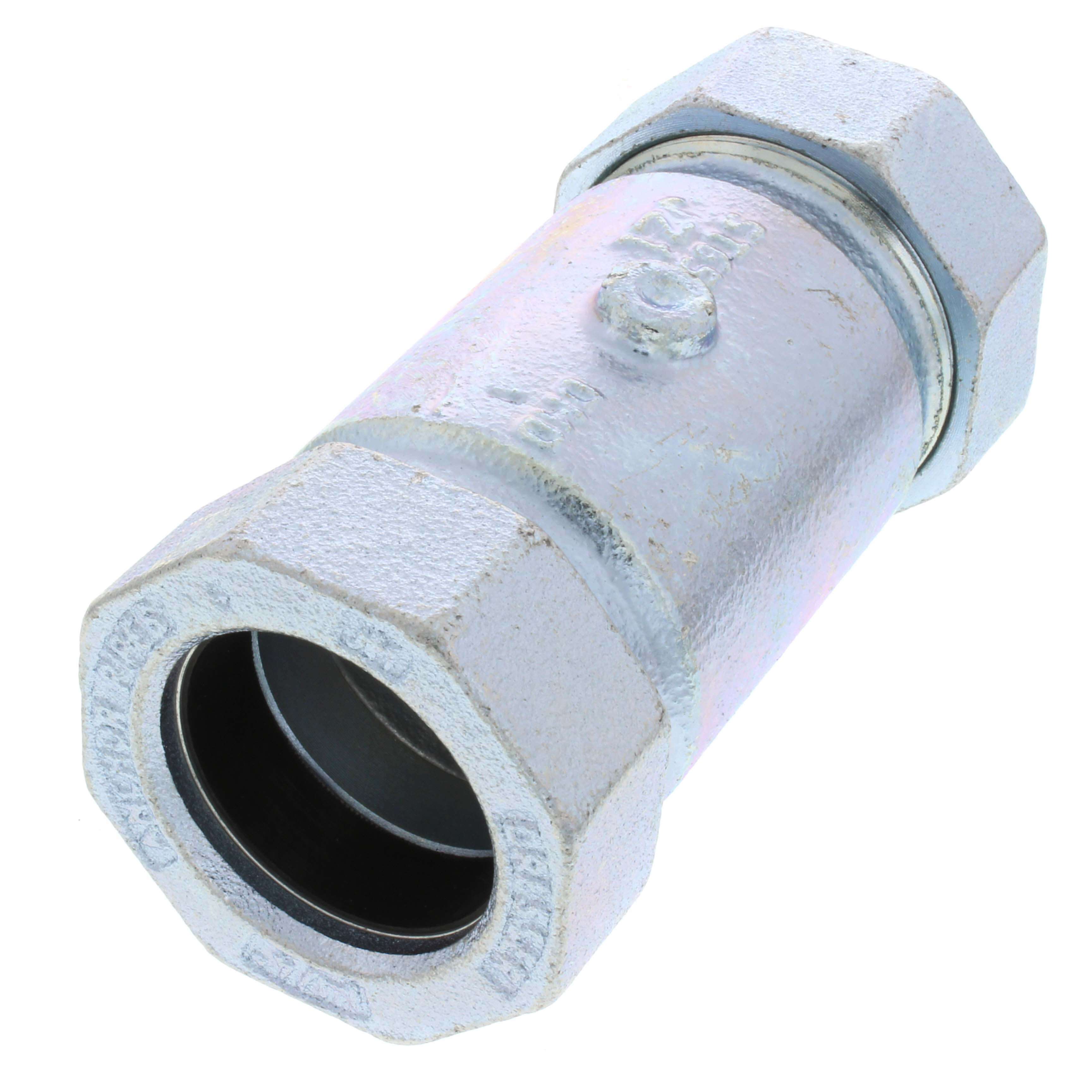

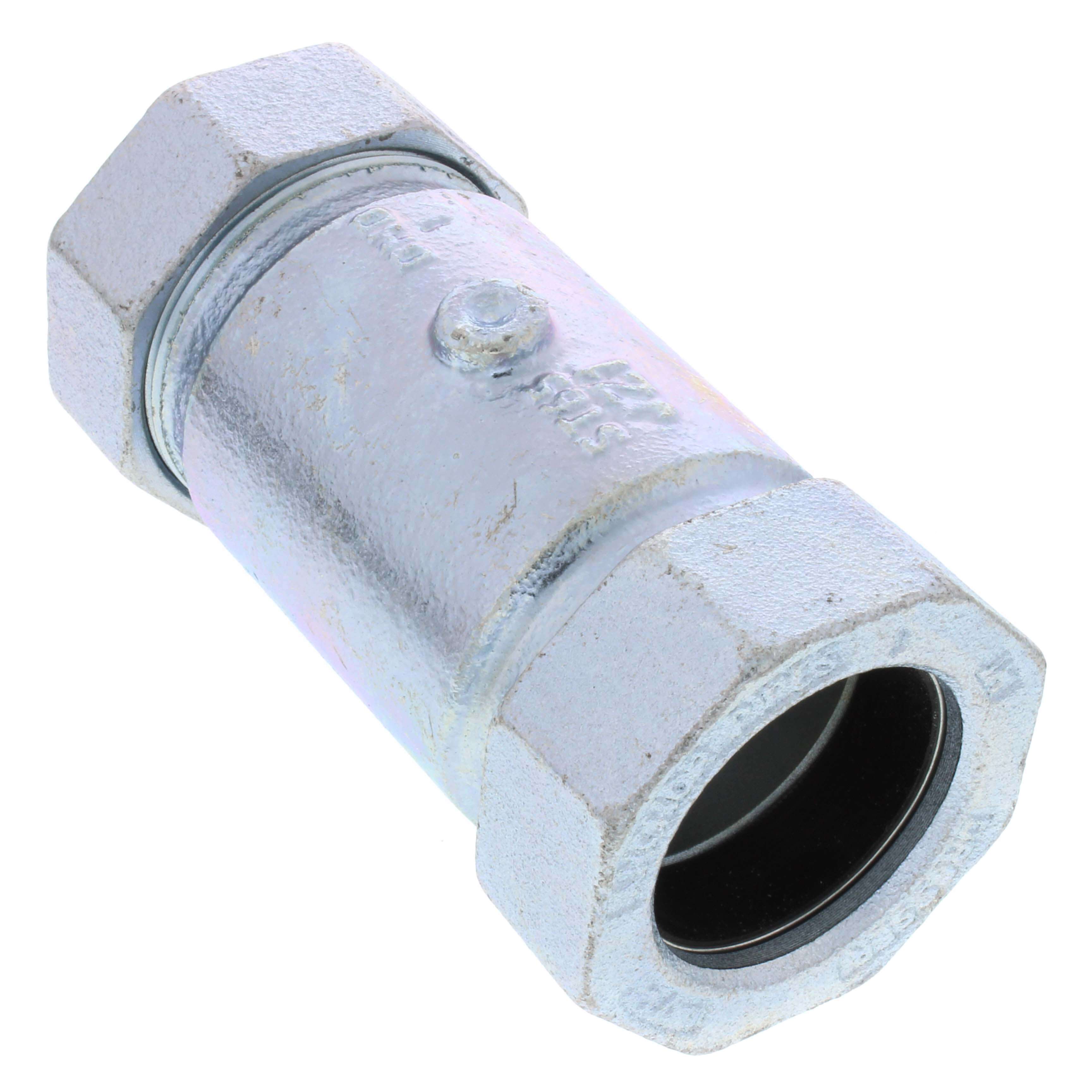

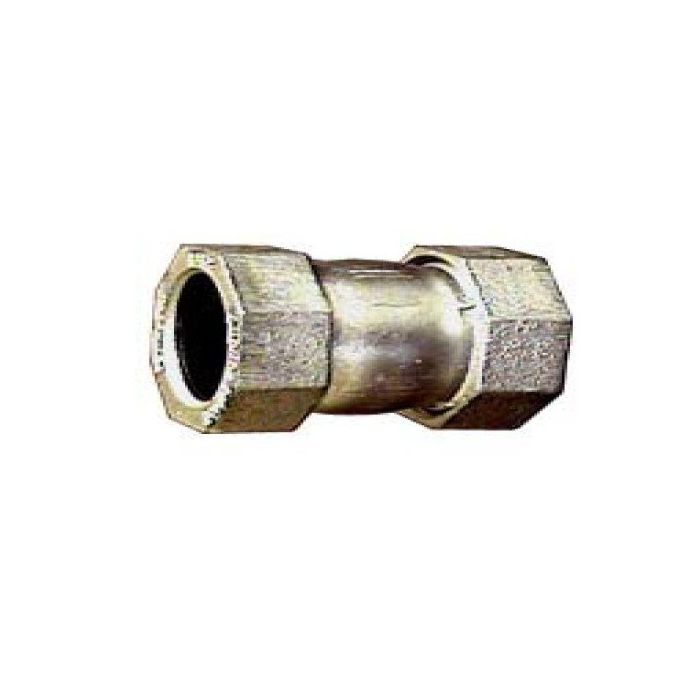

Wal-Rich 2804008 1-1/4 Galvanized Dresser Coupling

Product Description

The WAL-RICH 2804008 is a long galvanized dresser coupling, 1-1/4 inch in size, designed for steel pipe, pipeline, and water service applications. This compression x compression fitting features a galvanized finish and an armored gasket, rated for 150 PSI pressure and 150 degrees F temperature. The Style 65 compression fitting allows for quick installation on plain-end pipe or tubing without threading or flaring, and can be easily disassembled for cleaning or repairs.

• Designed for steel pipe, pipeline, and water service applications.
• Features a 1-1/4 inch compression x compression end connection with a galvanized finish and armored gasket.
• Enables quick, thread-less installation on plain-end pipe, offering flexibility and uniform joint strength.

Product Highlights

Galvanized 1-1/4 inch compression dresser coupling for steel pipe, offering quick, thread-less installation and flexible, uniform joints.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2804008

Technical Specifications

• Application: Steel Pipe, Pipeline, Water Service
• End Connection: Compression x Compression
• Finish: Electro-galvanized
• Gasket Type: Armored Grade 27
• Gasket Supplied: Yes
• Pressure Rating: 150 PSI
• Series/Model: 65
• Size: 1-1/4" IPS
• Temperature Rating: 150 Degrees F
• Type: Style 65, Long
• Dresser Part Number: 0065-0033-003
• Overall Length: 4 1/4 inches
• SKU: DRE65LC12
• Material: Malleable Iron
• Fitting Type: Compression Fitting For Steel Pipe
• UPC / GTIN: 730284066224
• Product Type: Coupling
