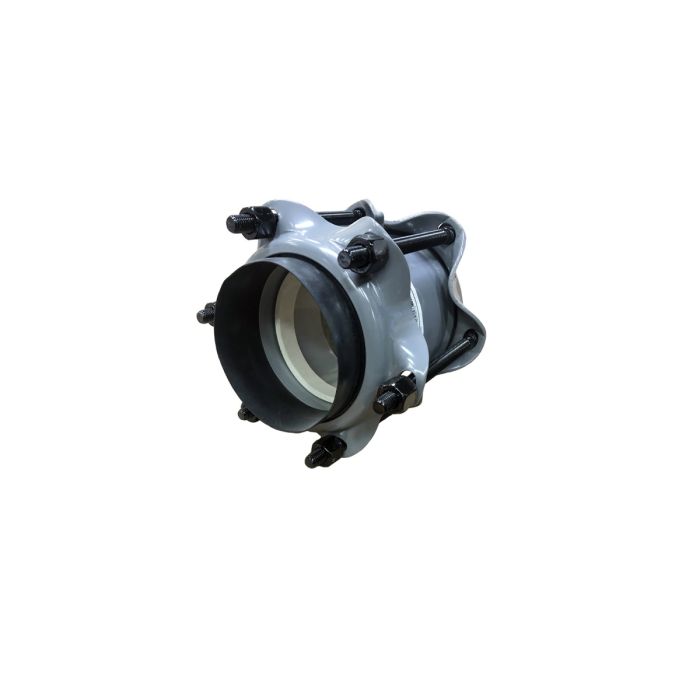

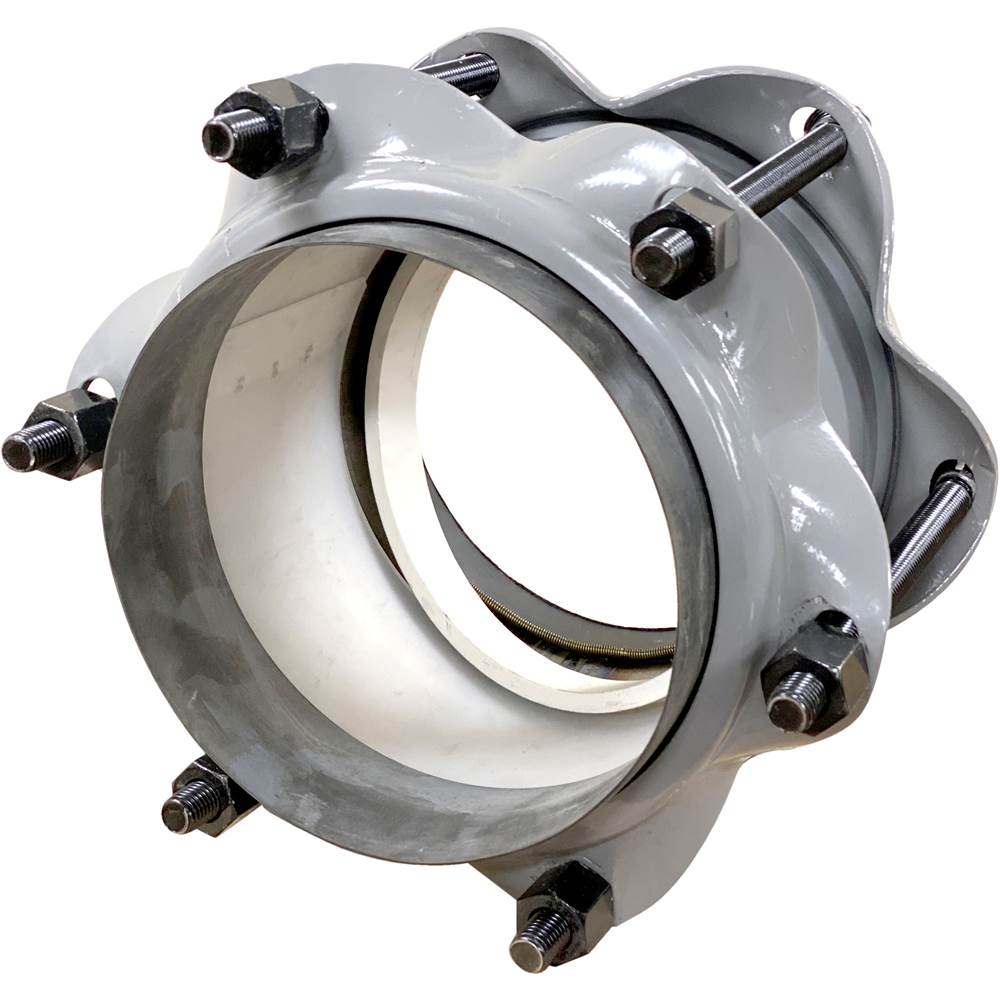

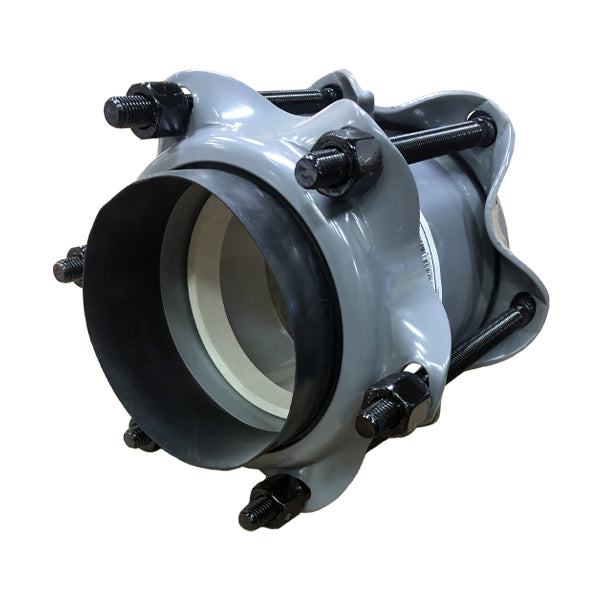

Wal-Rich 2803008 IPS style 39 gas meter dresser coupling for steel pipe 6 inch IPS

Product Description

The WAL-RICH 2803008 is a 6-inch IPS Style 39 Gas Meter Dresser Coupling designed for steel pipe applications. It features a rubber insulating sleeve and an anode for conductivity, along with a fusion-bonded epoxy coat for durability. This Style 39 coupling is specifically for aboveground use in meter sets, functioning as a seal-only component. Constructed from carbon steel, it can withstand a maximum pressure of 900 PSI and a maximum temperature of 212 degrees F.

• Designed for gas meter applications, ensuring secure connections.

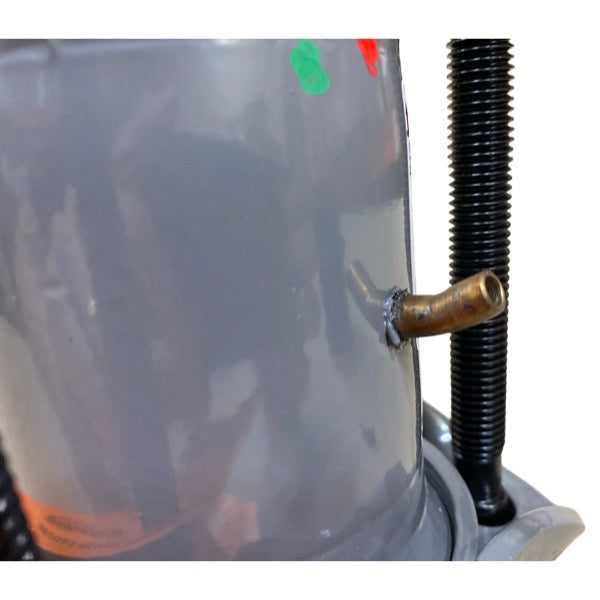

• Equipped with a rubber insulating sleeve and anode for enhanced conductivity.
• Features a fusion-bonded epoxy coat for corrosion resistance and durability.

Product Highlights

This Style 39 coupling is seal-only, suitable for aboveground meter set installations, and includes an armored Grade 27 gasket and insulating boot.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2803008

Technical Specifications

• Size: 6" IPS
• Type: Style 39
• Application: Gas
• Dresser #: 0039-9027-215

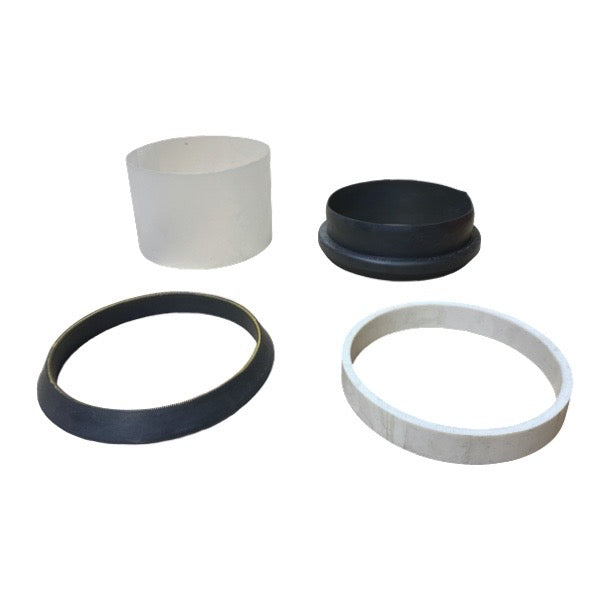

• Components: Sleeve, Armored Grade 27 Gasket, Insulating Boot, Spacer
• Material: Carbon Steel
• Coating: Fusion-bonded Epoxy Coating
• Max Pressure: 900 PSI
• Max Temperature: 212 Degrees F
• Fitting Connection: IPS
• Product Type: Coupling
