Wal-Rich 2801506 5 inches IPS Style 38 Low Pressure Steam Dresser Coupling for Steel Pipe 0038-9051-345

Product Description

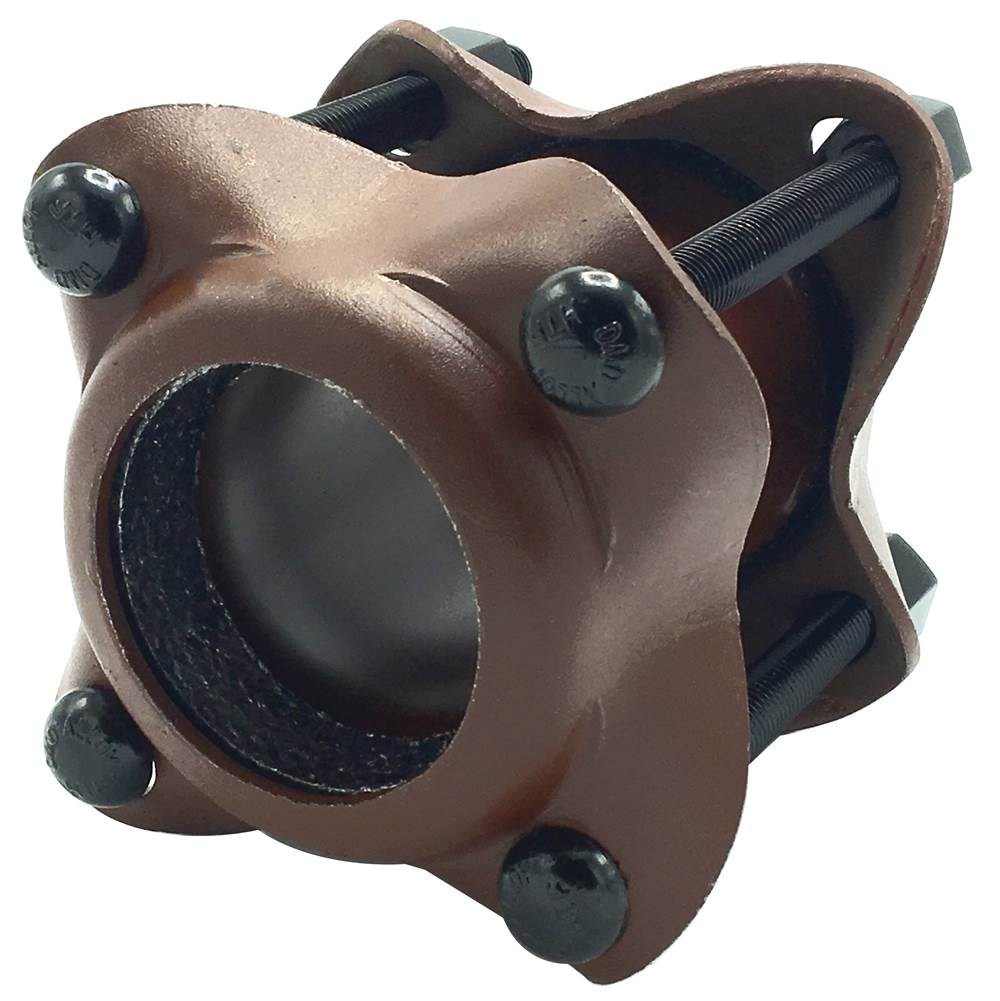

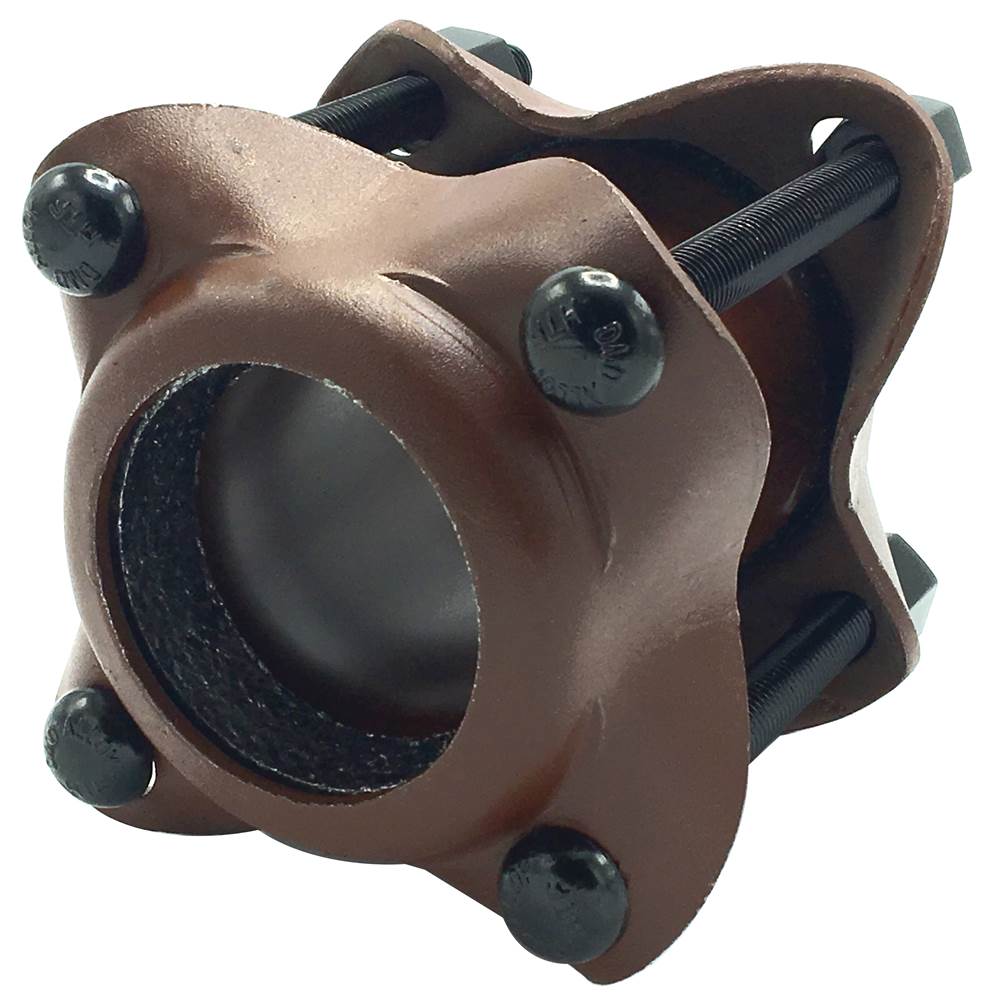

The WAL-RICH 2801506 is a 5" IPS Style 38 Low Pressure Steam Dresser Coupling designed for steel pipe applications. This coupling features a Red Shop Coating for corrosion prevention and is equipped with corrosion-resistant alloy bolts and nuts (5/8" x 8 1/4"). It has a 5" long middle ring and is suitable for low pressure steam systems, handling up to 50 PSI and temperatures up to 1200 Degrees F with Carded Glass Hi-Temp Gaskets. Constructed from carbon steel, it ensures secure pipe connections.

• Designed for low pressure steam systems
• Features a Red Shop Coating to prevent corrosion
• Equipped with corrosion-resistant alloy bolts and nuts (5/8" x 8 1/4")

Product Highlights

Features a 5-inch long middle ring and Carded Glass Hi-Temp Gaskets for high-temperature applications up to 1200 Degrees F.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2801506

Technical Specifications

• Size: 5" IPS
• Type: Style 38
• Application: Low Pressure Steam
• Dresser Part Number: 0038-9051-345
• Overall Length: 5"
• Gasket Type: Carded Glass Hi-Temp Gaskets
• Material: Carbon Steel
• Max Pressure: 50 PSI Max
• Max Temperature: 1200 Degrees F Max Temp
• Finish: Red Shop Coat
• Product Type: Coupling
