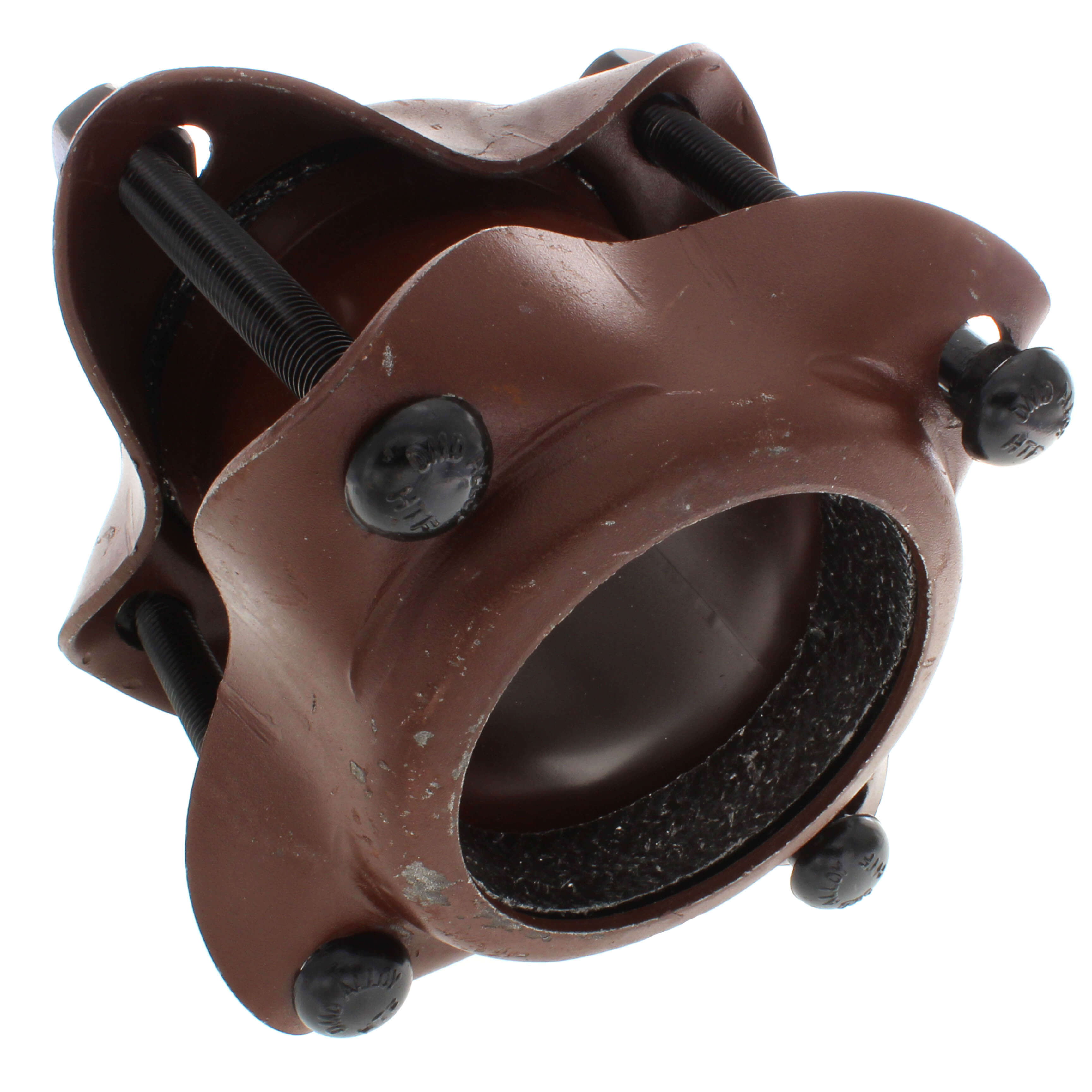

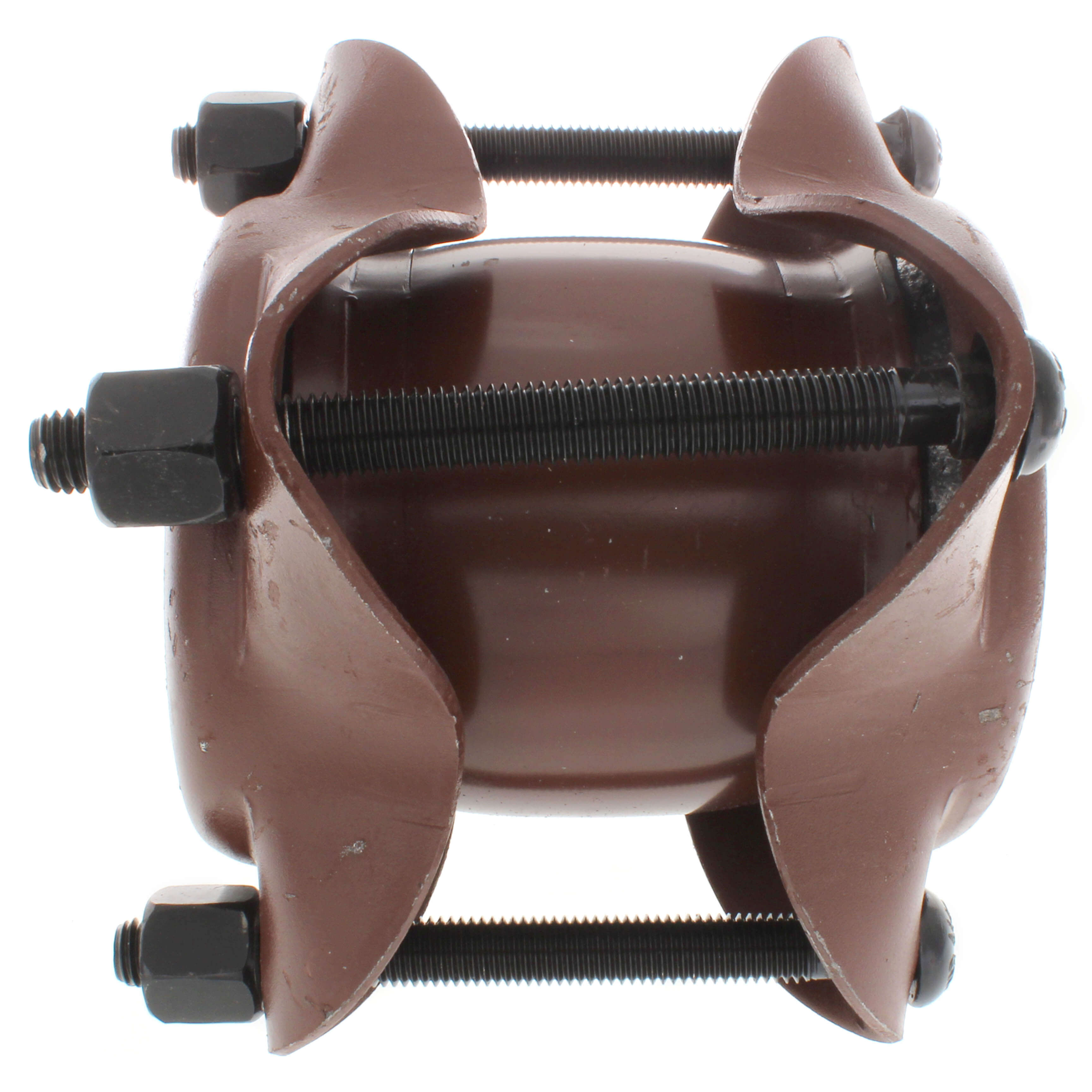

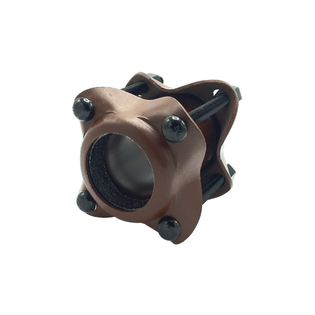

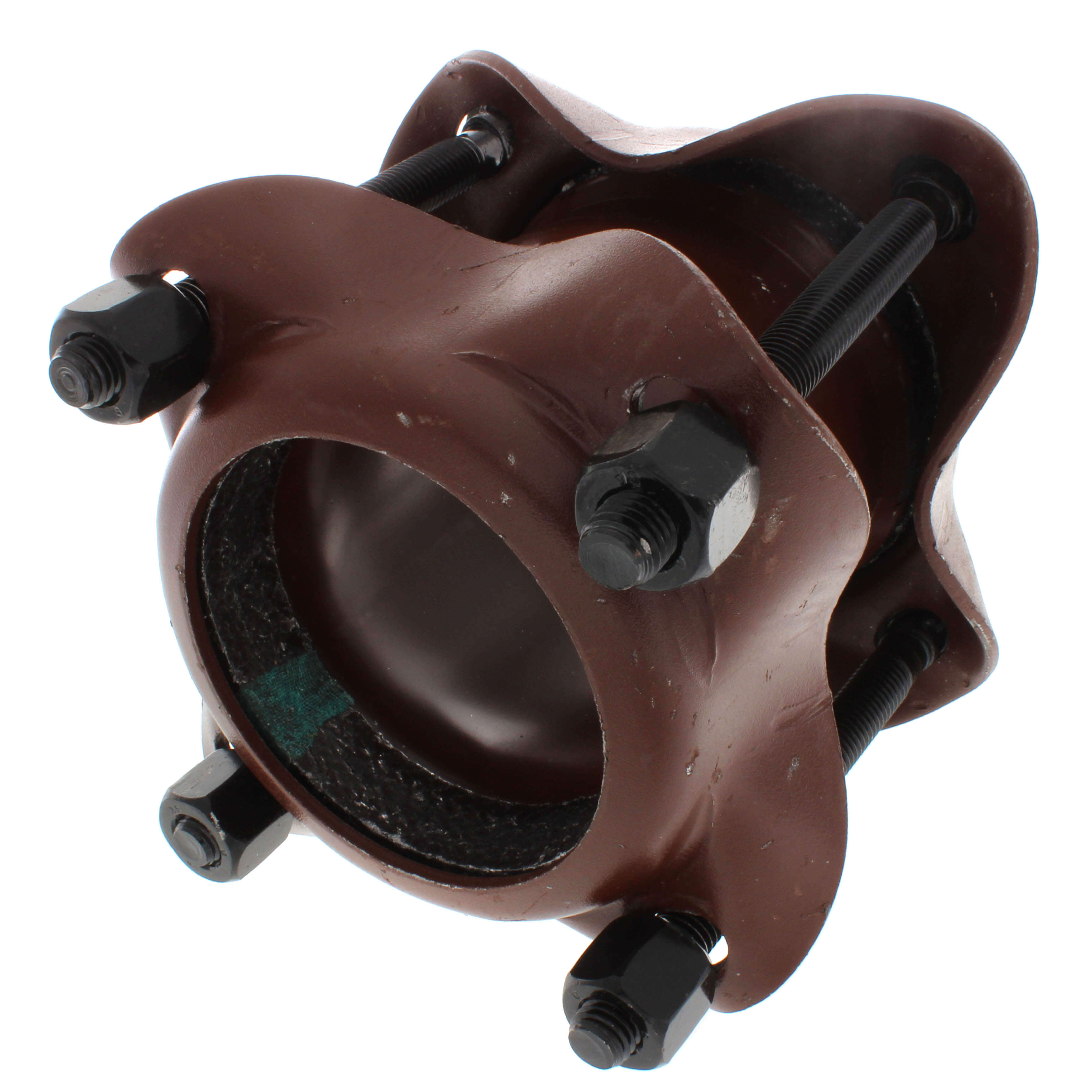

Wal-Rich 2801504 4 inches IPS Style 38 Low Pressure Steam Dresser Coupling For Steel Pipe

Product Description

The WAL-RICH 2801504 is a 4" IPS Style 38 low-pressure steam dresser coupling for steel pipes. It features a red shop coating to prevent corrosion and corrosion-resistant alloy bolts and nuts (5/8" x 8 1/4"). Wal-Rich stocks all Style 38’s with 5” long middle rings (the body of the coupling).

• For low pressure steam systems
• Features a Red Shop Coating to prevent corrosion
• Corrosion-resistant alloy bolts and nuts (5/8” x 8 1/4”)

Product Highlights

This 4" IPS Style 38 coupling is designed for low-pressure steam systems and features a corrosion-resistant design.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2801504

Technical Specifications

• MPN: 2801504
• Brand: WAL-RICH
• Inventory SKU: 189329
• Source Name: General Plumbing Supply
• Available Quantity: 0.0
• Cost: 289.96
• Reference ID: WALRICH2801504
• Size [Features]: 4" IPS
• Type [Features]: Style 38
• Application [Features]: Low Pressure Steam
• Dresser #: 0038-9036-345
• Attribute 2: 5" Overall Length
• Attribute 3: Carded Glass Hi-Temp Gaskets
• Attribute 4: Carbon Steel
• Attribute 5: Red Shop Coat
• Attribute 6: 50 PSI Max
• Manufacturer: Wal-rich
• Finish: Red Shop Coated
• Fitting/Connector Type: Coupling
• Nominal Size: 4 In
• Series: Style 38
• Temperature Rating: 1200 deg F
