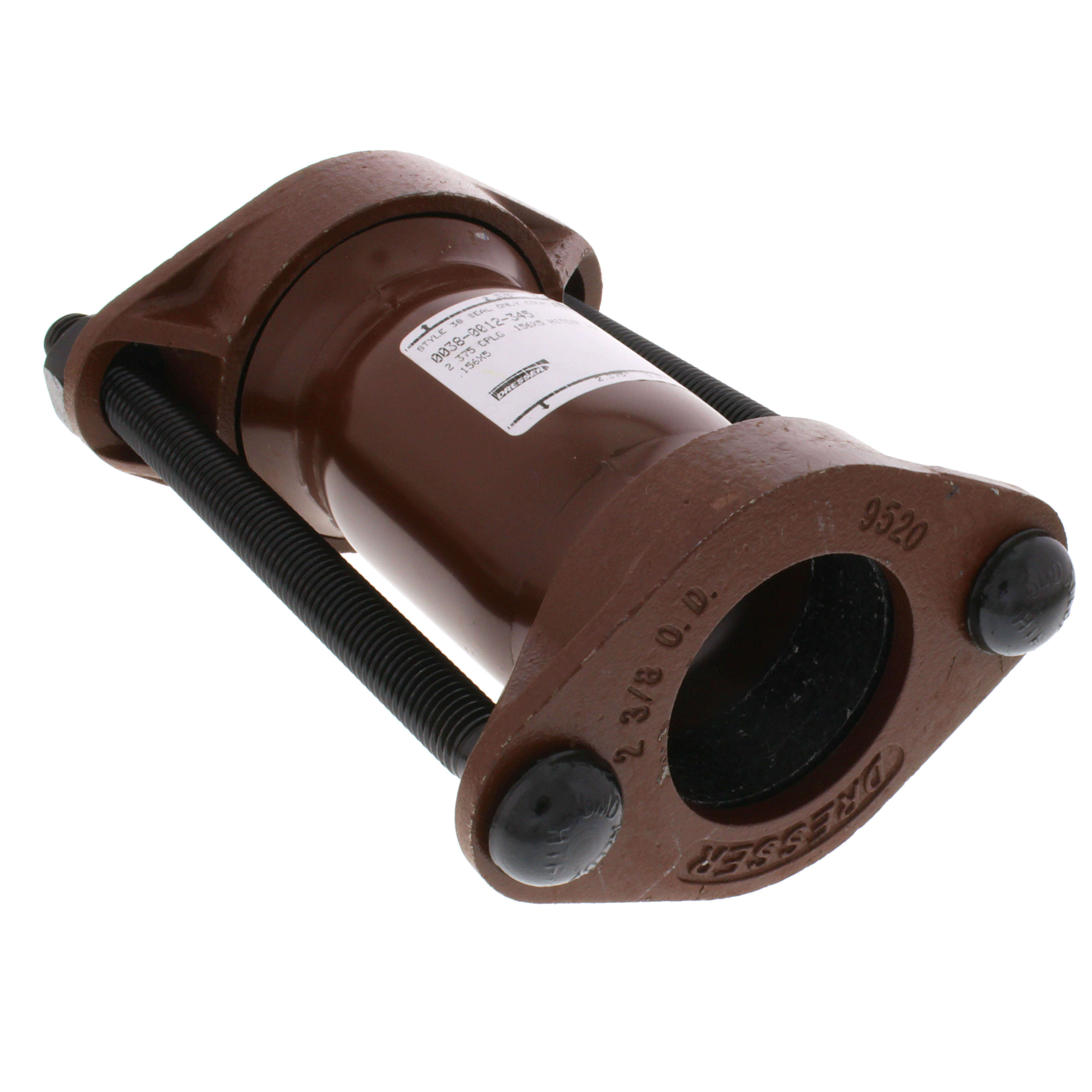

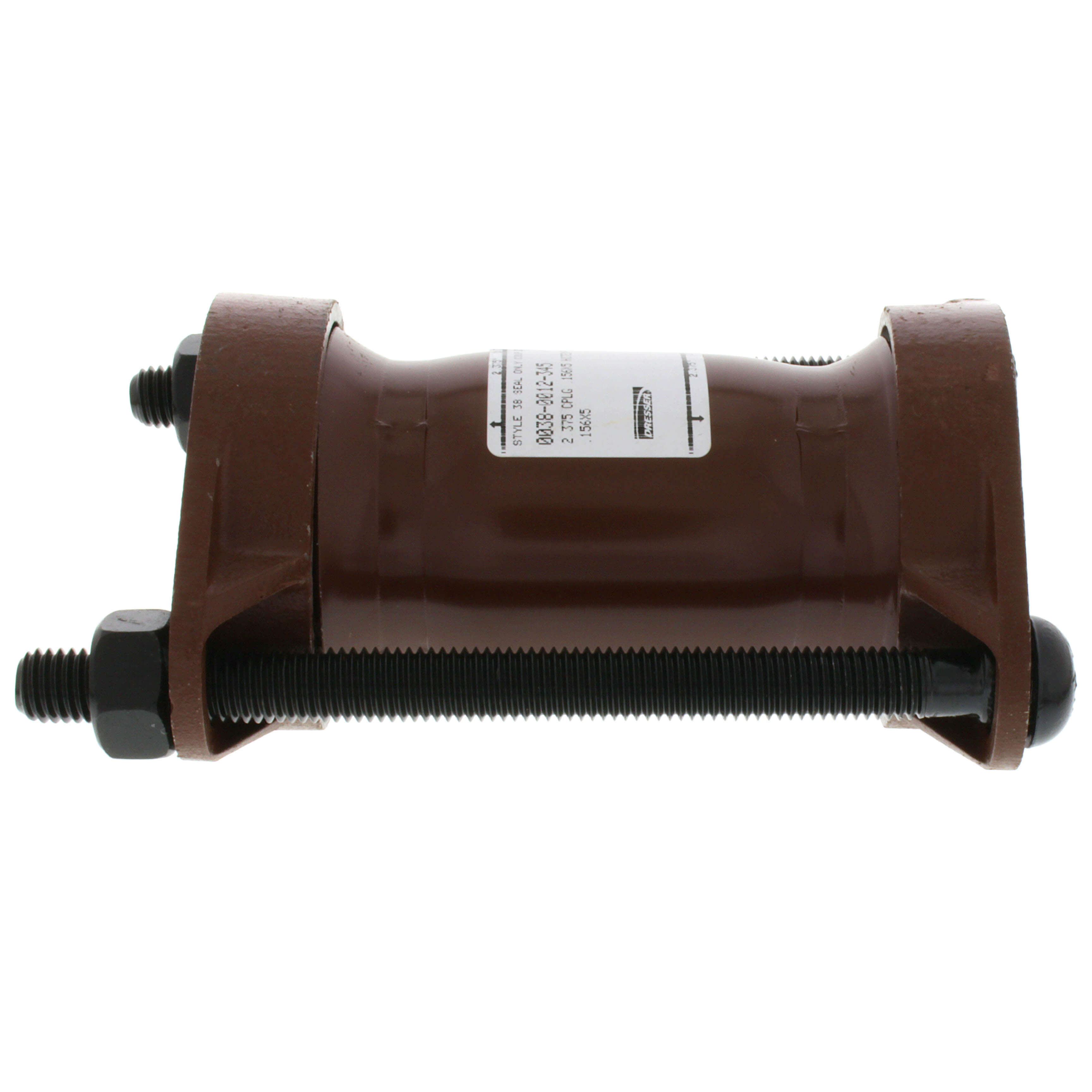

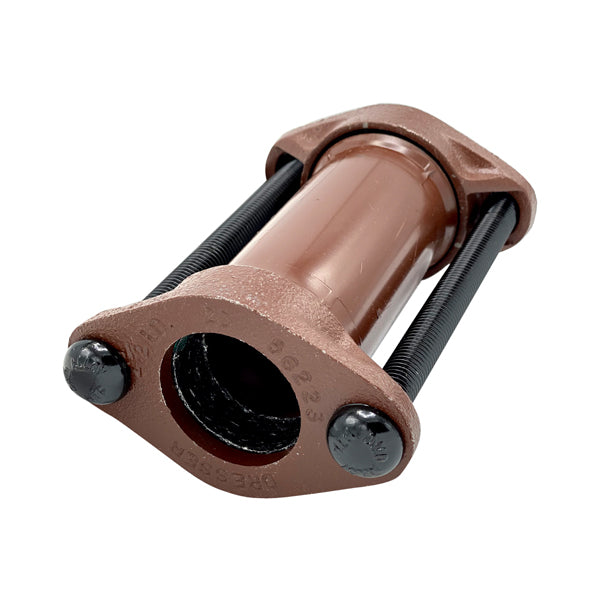

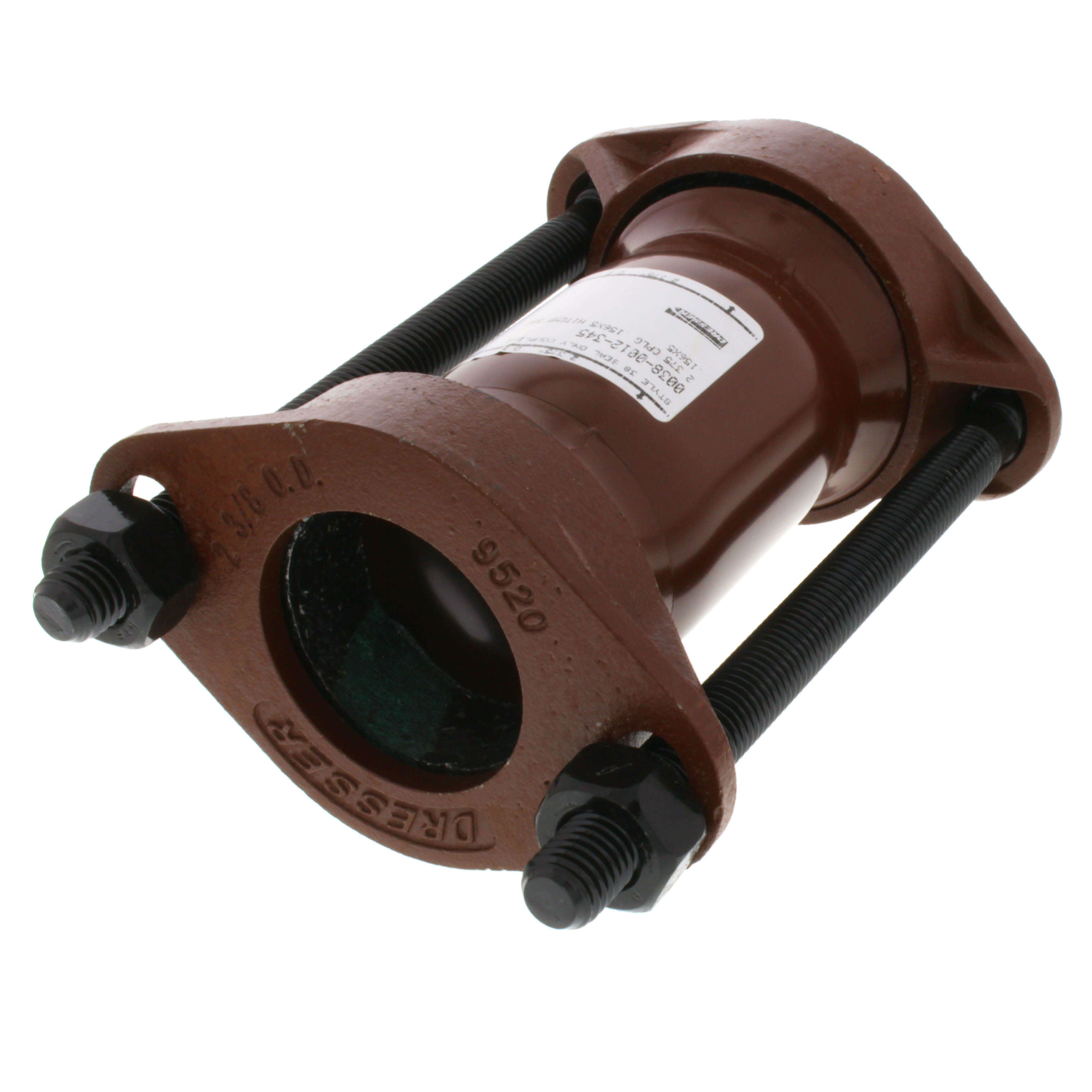

Wal-Rich 2801498 Dresser 2 inches Style 38 Coupling (2 inches IPS)

Product Description

The Wal-Rich 2801498 is a Dresser Style 38 bolted coupling sized 2" IPS designed for low-pressure steam and plumbing applications. It is carbon steel with a red shop coat finish, uses carded glass high-temperature gaskets, and includes corrosion-resistant alloy bolts and nuts. The coupling has a 5" middle ring/overall length and is rated to 50 PSI and 1200 F for high-temperature service.

• Carbon steel construction with red shop coat finish and 5" middle ring
• Carded glass high-temperature gaskets; rated to 50 PSI and 1200 F
• Corrosion-resistant alloy bolts and nuts (5/8" x 8 1/4") for bolted coupling assembly

Product Highlights

Dresser Style 38 coupling for 2" IPS steel pipe; carbon steel, carded glass hi-temp gaskets, 5" length; 50 PSI, 1200 F rating.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2801498

Technical Specifications

• Brand: Wal-Rich
• MPN: 2801498
• Product Type: Coupling
• Model/Style: Style 38
• Size: 2" IPS
• Application: Low pressure steam / plumbing for steel pipe
• Material: Carbon Steel
• Coating/Finish: Red shop coat
• Gasket Type: Carded glass high-temperature gaskets
• Bolts and Nuts: Corrosion-resistant alloy, 5/8" x 8 1/4"
• Middle Ring Length: 5"
• Overall Length: 5"
• Maximum Pressure: 50 PSI
• Maximum Temperature: 1200 F
• Weight: 6.495 lbs
• UPC: 073028415980
