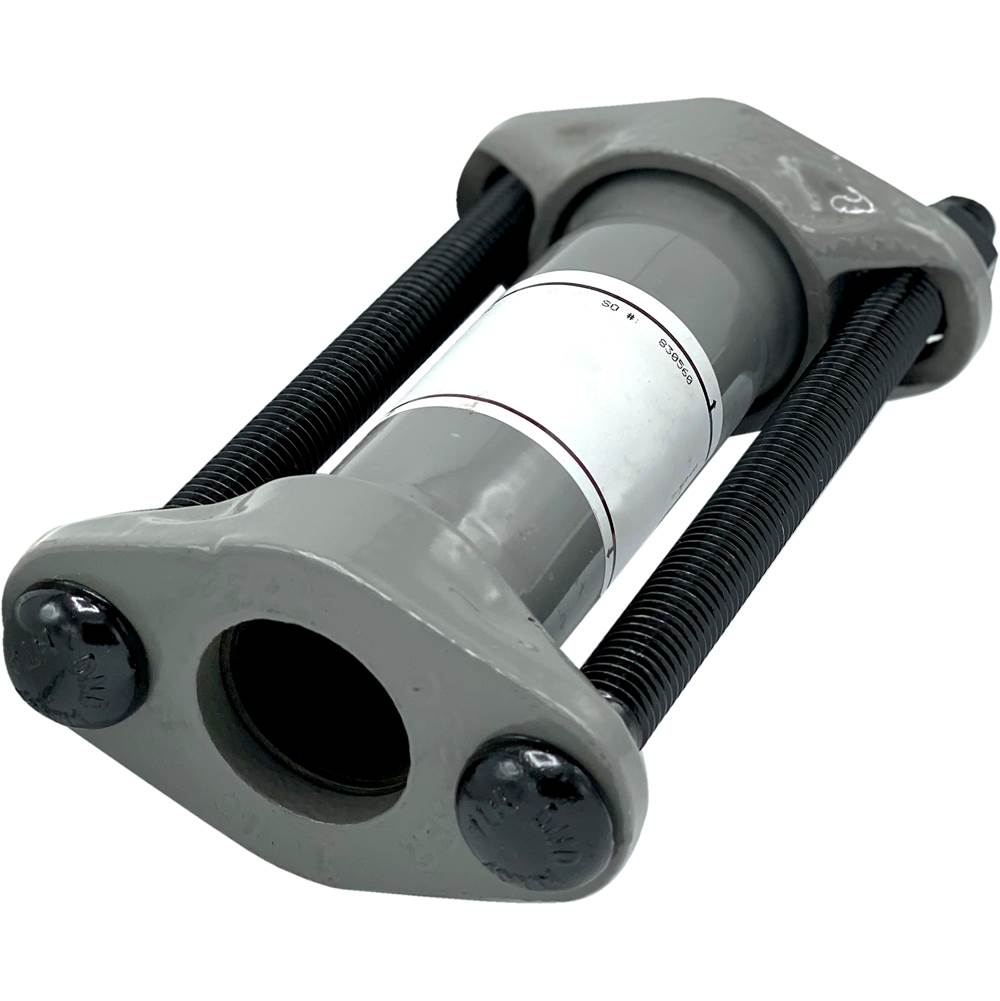

Wal-Rich 2801308 1-1/4 inches IPS Style 38 Water Service Dresser Coupling For Steel Pipe

Product Description

The WAL-RICH 2801308 is a 1-1/4" IPS Style 38 Water Service Dresser Coupling designed for steel pipe applications. This carbon steel coupling features a fusion-bonded epoxy coating for corrosion prevention in water service. It includes corrosion-resistant alloy bolts and nuts (5/8" x 8 1/4") and a 5" long middle ring. It is rated for a maximum pressure of 1500 PSI and a maximum temperature of 212 degrees F.

• Designed for water service applications
• Features a fusion-bonded epoxy coating for corrosion prevention
• Equipped with corrosion-resistant alloy bolts and nuts (5/8" x 8 1/4")

Product Highlights

Durable carbon steel coupling with fusion-bonded epoxy coating for corrosion resistance in water service applications.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2801308

Technical Specifications

• Size: 1-1/4" IPS
• Type: Style 38
• Application: Water
• Dresser Part Number: 0038-0005-011
• Gasket Type: Plain Grade 27 Gaskets
• Material: Carbon Steel
• Coating: Fusion-bonded Epoxy Coating
• Maximum Pressure: 1500 PSI
• Maximum Temperature: 212 Degrees F
• Overall Length: 5 inches
• Bolt and Nut Material: Corrosion-resistant alloy
• Bolt and Nut Size: 5/8" x 8 1/4"
