Wal-Rich 2801006 Dresser Style 38 Coupling with Armored Gaskets 1 inch

Product Description

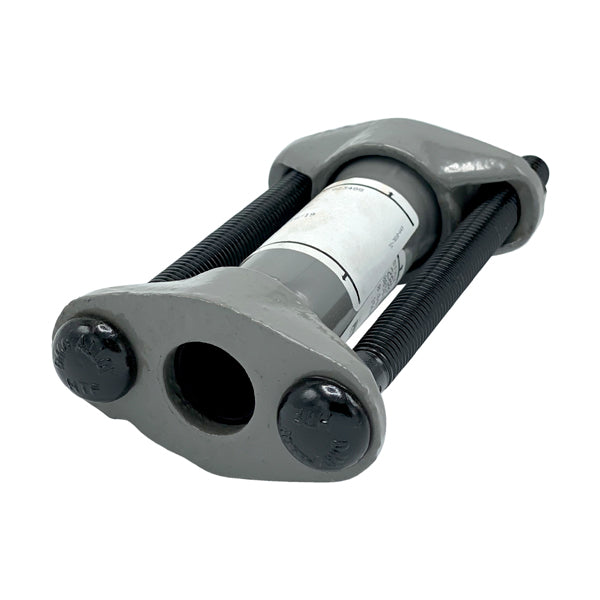

The WAL-RICH 2801006 Dresser Style 38 Armored Coupling is designed for connecting 1 inch steel pipes. This coupling features armored Grade 27 gaskets and a carbon steel construction with a fusion-bonded epoxy coating to prevent corrosion. It is rated for a maximum pressure of 1500 PSI and can withstand temperatures up to 212 degrees Fahrenheit, ensuring reliable performance in demanding applications. Wal-Rich stocks these couplings with 5 inch long middle rings.

• Fusion-bonded epoxy coating prevents corrosion.
• Features armored Grade 27 gaskets for secure connections.
• Designed for 1 inch steel pipe applications.

Product Highlights

Durable carbon steel coupling with armored gaskets and epoxy coating for 1 inch steel pipes, rated for high pressure and temperature.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2801006

Technical Specifications

• Dresser Part Number: 0038-0004-013
• Gasket Type: Armored Grade 27
• Material: Carbon Steel
• Finish: Fusion-bonded Epoxy Coating
• Maximum Pressure: 1500 PSI
• Maximum Temperature: 212 Degrees F
• Fitting Type: Coupling
• Nominal Size: 1 Inch
• Series: Style 38
• Middle Ring Length: 5 inches
