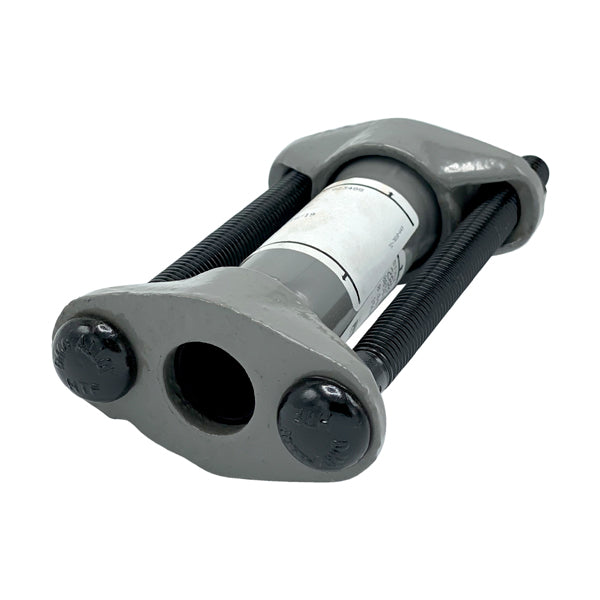

Wal-Rich 2801004 Style 38 Coupling with Armored Gaskets 3/4 Inch

Product Description

The WAL-RICH 2801004 is a Style 38 Coupling with Armored Gaskets, designed for robust pipe connections. Constructed from carbon steel and featuring a fusion-bonded epoxy coating, this coupling offers enhanced durability and corrosion resistance. It is suitable for applications requiring a maximum pressure of 1500 PSI and can withstand temperatures up to 212 degrees F. The 5-inch overall length and armored Grade 27 gaskets ensure a secure and reliable connection for steel pipes.

• Armored Grade 27 Gaskets for enhanced sealing.
• Carbon Steel construction ensures durability.
• Fusion-bonded Epoxy Coating provides corrosion protection.

Product Highlights

Durable carbon steel coupling with armored gaskets and epoxy coating for secure pipe connections.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2801004

Technical Specifications

• Dresser Part Number: 0038-0003-013
• Overall Length: 5 inches
• Gasket Type: Armored Grade 27
• Material: Carbon Steel
• Coating: Fusion-bonded Epoxy
• Maximum Pressure: 1500 PSI
• Maximum Temperature: 212 Degrees F
• Fitting/Connector Type: Coupling
• Nominal Size: 3/4 In
• Series: Style 38
• Weight: 3.2 lbs
