Wal-rich 2423102 3 Inch Push-on Cleanout Service Weight

Product Description

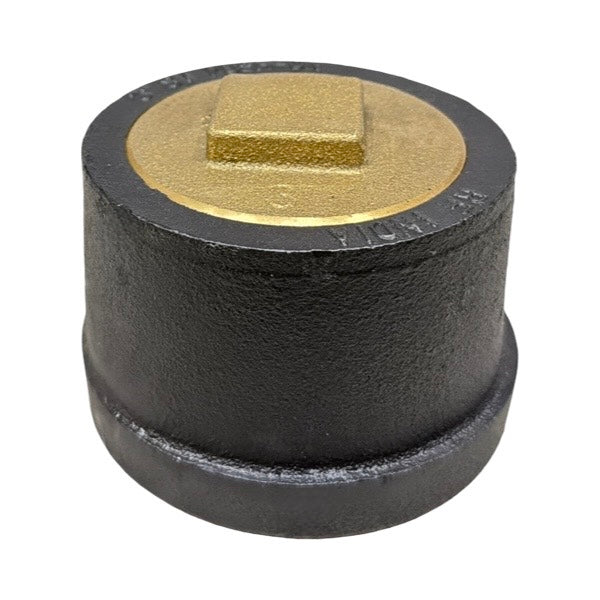

The WAL-RICH 2423102 is a 3-inch push-on cleanout fitting in service weight cast iron, supplied without a gasket and fitted with a raised head plug. Cleanout fittings of this type provide drain system access points that allow licensed plumbers to rod out or hydrojet blockages without cutting into pipe. The service weight designation indicates standard wall thickness appropriate for residential and light commercial drain, waste, and vent systems. The raised head plug design gives technicians a secure grip point for removal and reinstallation during service calls.

This cleanout is suited for use in residential and light commercial DWV installations where cast iron drain piping is specified or required by local code. The push-on connection style allows the fitting to seat quickly against compatible cast iron hub openings. It is typically installed at floor, wall, or cleanout tee locations throughout a sanitary drain system. Plumbers working on new construction or retrofit applications will find this fitting appropriate wherever a no-gasket push-on cleanout is called for in service weight iron.

Key Features

• 3-inch nominal size suits common residential and commercial drain line sizes
• Push-on connection style for straightforward seating into compatible cast iron hubs
• Service weight cast iron construction provides standard wall thickness for DWV systems
• Raised head plug allows secure grip for removal and reinstallation during drain service
• Supplied less gasket for installations where a separate gasket is specified or already in place

Compatibility

Designed as an OEM-style replacement or new-installation cleanout for 3-inch service weight cast iron drain, waste, and vent piping systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC) where adopted. Shut off flow to the affected drain line and confirm the hub opening is clean and free of debris before seating the fitting. Because this fitting is supplied less gasket, verify whether the application requires a separate elastomeric gasket before final assembly. Do not overtighten the raised head plug, as cast iron fittings can crack under excessive torque.

Technical Specifications

• Nominal Size: 3 inches
• Connection Type: Push-On
• Weight Class: Service Weight
• Plug Type: Raised Head
• Gasket Included: No
• Weight: 3.35 pounds

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2423102
