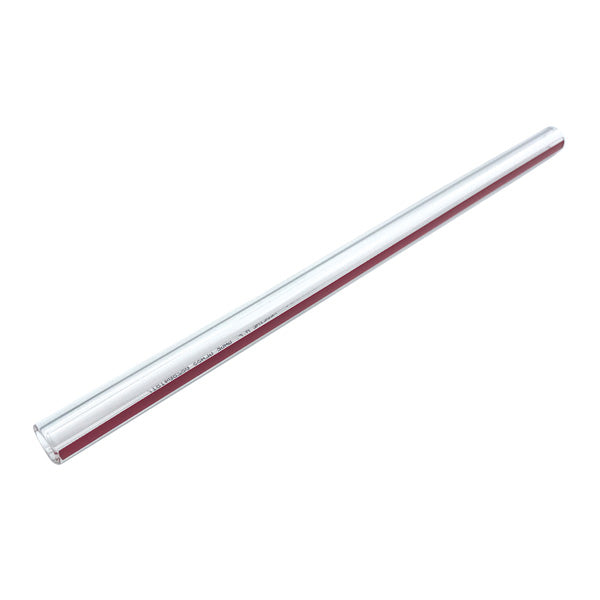

Wal-Rich 1724000 12 inch Redline high pressure gauge glass

Product Description

The WAL-RICH 1724000 is a 12-inch Redline High Pressure Gauge Glass, designed for monitoring pressure in various systems. This glass gauge is suitable for applications involving steam with a maximum working pressure of 280 PSI and water with a maximum working pressure of 335 PSI. It can withstand steam temperatures up to 425 degrees Fahrenheit and water temperatures up to 150 degrees Fahrenheit. Its 5/8 inch diameter ensures compatibility with standard fittings.

• Designed for high-pressure applications, handling steam up to 280 PSI and water up to 335 PSI.
• Withstands steam temperatures of 425 degrees Fahrenheit and water temperatures of 150 degrees Fahrenheit.
• Features a 12-inch length and 5/8-inch diameter, constructed from durable glass.

Product Highlights

12-inch Redline High Pressure Gauge Glass for steam and water systems.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 1724000

Technical Specifications

• MPN: 1724000
• Brand: WAL-RICH
• Quantity Per Package: 1
• Maximum Working Pressure for Steam: 280 PSI
• Maximum Working Pressure for Water: 335 PSI
• Steam Temperature: 425 Degrees Fahrenheit
• Water Temperature: 150 Degrees Fahrenheit
• Diameter: 5/8 in
• Material: Glass
• Length: 12 in
