Wal-Rich 1711018 2-1/2 Long Angle Tridicator

Product Description

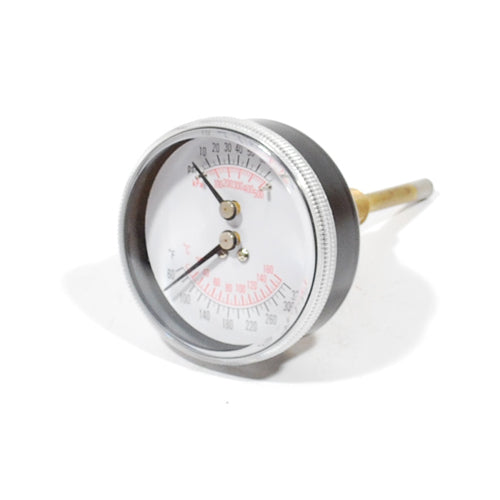

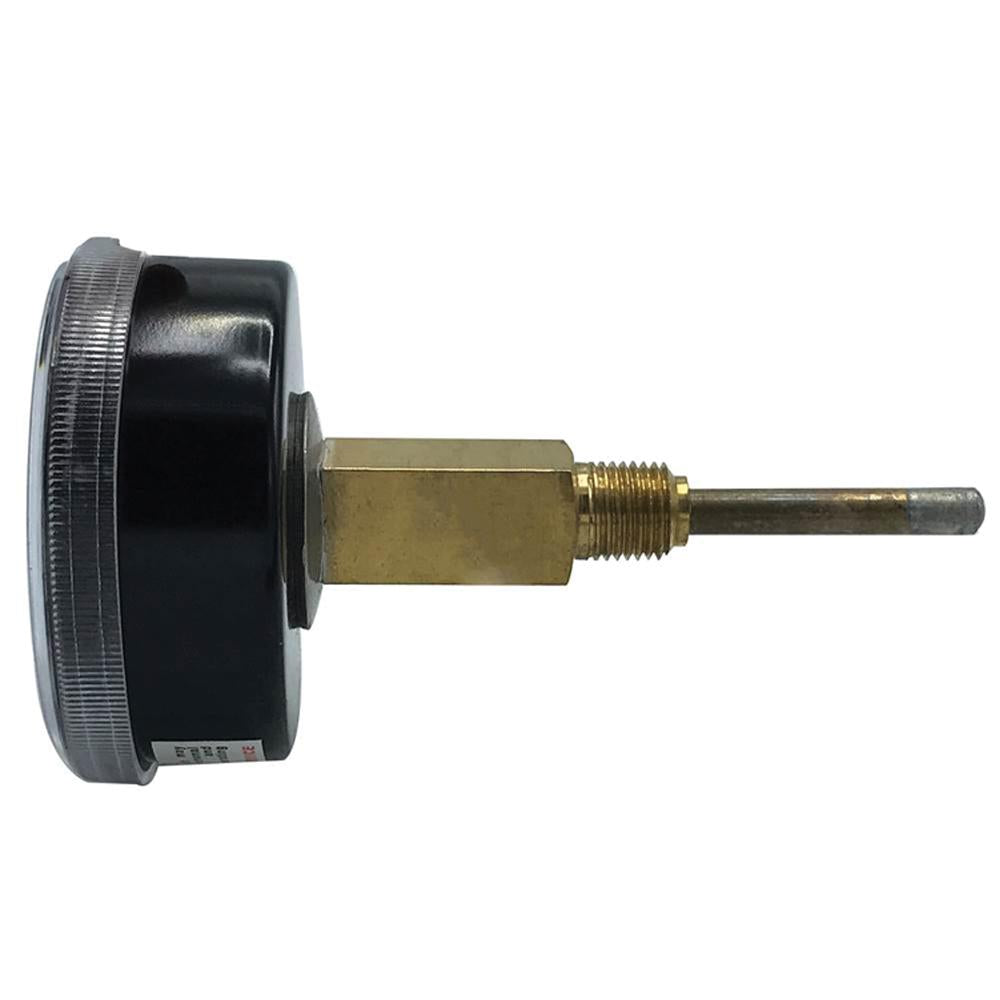

The WAL-RICH 1711018 is a long shank angle tridicator pressure gauge designed for monitoring both pressure and temperature. This dial-type instrument features a 2-1/2 inch dial diameter and a 1/4 inch threaded end connection, located at the center back. It accurately measures pressure from 0 to 75 PSI and temperature from -60 to 320 degrees F, with a 2-1/4 inch shank size.

• Long shank angle tridicator for pressure and temperature monitoring.
• Features a 2-1/2 inch dial display and 1/4 inch threaded end connection.
• Measures pressure from 0 to 75 PSI and temperature from -60 to 320 Deg F.

Product Highlights

Versatile tridicator gauge with a 2-1/2 inch dial, 2-1/4 inch long angle shank, and 1/4 inch threaded NPT connection for comprehensive pressure and temperature monitoring.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 1711018

Technical Specifications

• Outlet Type: Angle
• Shank Size: 2-1/4 Inch
• Category: Test Instruments
• Connection Location: Center Back
• Dial Diameter: 2-1/2 Inch
• Display Type: Dial
• End Connection: 1/4 Inch Threaded
• Maximum Pressure: 75 PSI
• Minimum Pressure: 0 PSI
• Pressure Gauge Type: Long Shank
• Temperature Rating: -60 to 320 Deg F
• Connection Type: NPT
