Wal-Rich 1711016 2-1/2 Angle Tridicator

Product Description

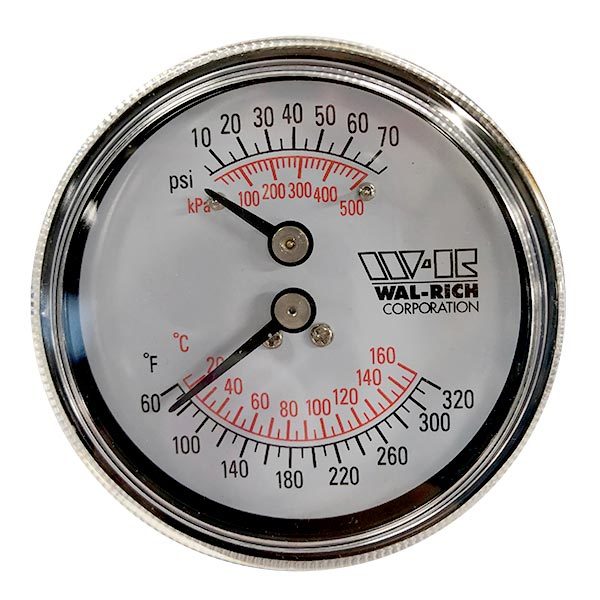

The WAL-RICH 1711016 is an angle tridicator designed for monitoring pressure and temperature. It features a dial display with a 2-1/2 inch diameter and a 1/4 inch threaded end connection located at the center back. This tridicator measures minimum pressure at 0 PSI and maximum pressure at 75 PSI, with a temperature rating from -60 to 320 degrees F. Its angle outlet type and 1-inch shank size make it suitable for various industrial and HVAC applications requiring precise environmental readings.

• Dial display type for clear readings.
• 1/4 inch threaded end connection with center back location.
• Temperature rating from -60 to 320 degrees F.

Product Highlights

Angle tridicator with 2-1/2 inch dial, 0-75 PSI pressure, and -60 to 320 F temperature range.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 1711016
• Country of Origin: United States

Technical Specifications

• Connection Location: Center Back
• Dial Diameter: 2-1/2 Inch
• Display Type: Dial
• End Connection: 1/4 Inch Threaded
• Maximum Pressure: 75 PSI
• Minimum Pressure: 0 PSI
• Temperature Rating: -60 to 320 Deg F
• Outlet Type: Angle
• Shank Size: 1 Inch
