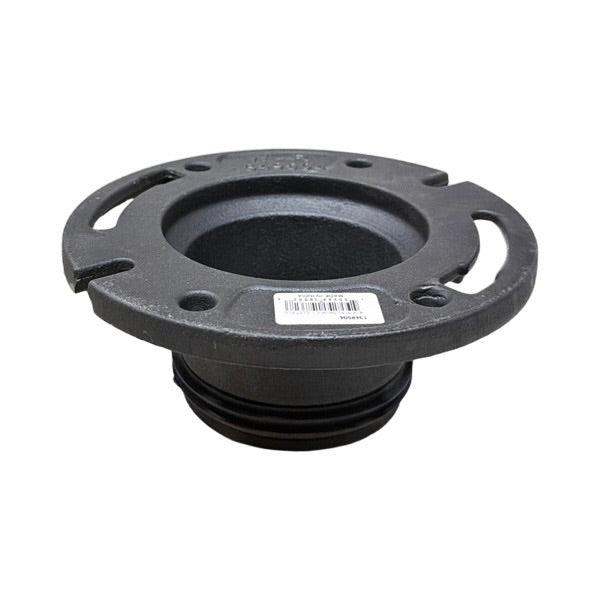

Wal-rich 1349504 Cast Iron Closet Flange 4x3

Product Description

The WAL-RICH 1349504 is a push-in cast iron closet flange designed to connect a toilet drain to the drain pipe below the floor. It accepts a 4-inch hub connection at the top and transitions to a 3-inch push-in spigot at the bottom, making it a common solution for residential and light commercial toilet rough-ins. The cast iron construction delivers long-term durability in wet, corrosive environments. This fitting is installed by licensed plumbers during new construction or toilet replacement work where the existing drain pipe requires a properly seated flange connection.

This closet flange is suited for residential bathroom installations and light commercial applications where a 4-inch floor flange connects to a 3-inch drain line. The push-in design allows the spigot end to seat directly into a compatible cast iron or PVC hub without mechanical fasteners, simplifying installation. It is appropriate for use in slab or wood-subfloor applications where code requires a rigid, permanent flange connection at the toilet base.

Key Features

• Push-in spigot bottom end seats into compatible 3-inch drain hub without additional hardware
• 4-inch top hub accepts standard toilet floor flange ring and wax seal connection
• Cast iron construction resists corrosion and mechanical stress in subfloor drain applications
• Reduces from 4-inch flange to 3-inch drain line in a single fitting
• Weighs 3.85 pounds, indicating solid, full-weight cast iron construction

Compatibility

Designed as an OEM-style replacement or new-installation closet flange for residential and light commercial toilet drain rough-ins requiring a 4-inch top by 3-inch push-in bottom connection in cast iron drain systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off water supply and remove the toilet before servicing or replacing an existing flange. Ensure the drain pipe hub is clean and free of debris before seating the push-in spigot end. Do not over-drive the fitting into the hub, as cast iron connections rely on proper gasket compression rather than force.

Technical Specifications

• Top Connection Size: 4 inches
• Bottom Connection Size: 3 inches
• Connection Type: Push-In Spigot
• Material: Cast Iron
• Weight: 3.85 pounds

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 1349504
