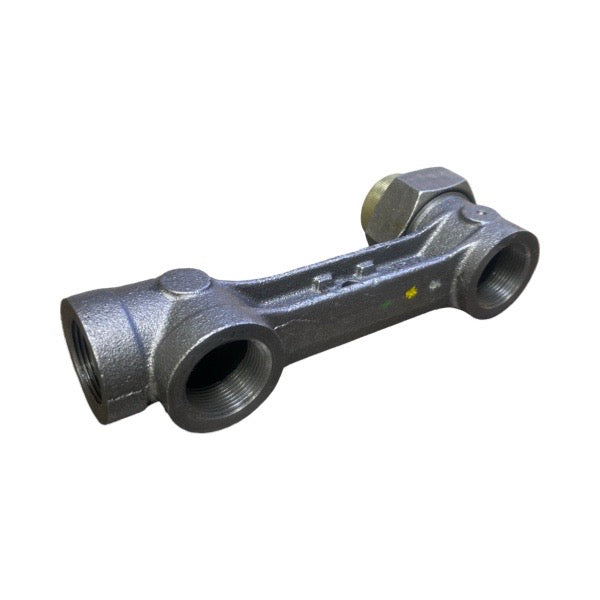

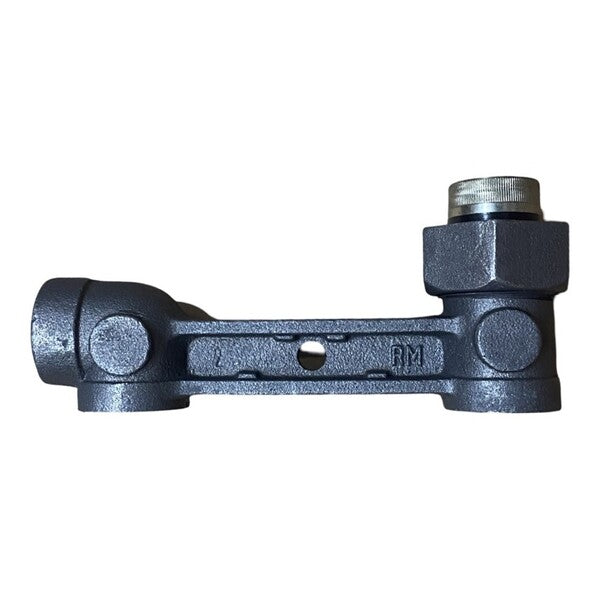

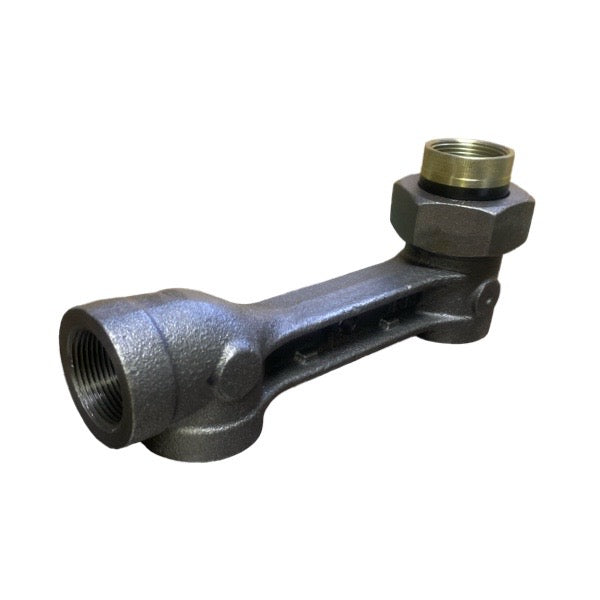

Wal-Rich 0418006 gas meter bar 7 inch 1-1/4 inch side inlet top outlet for class 400 meter

Product Description

The WAL-RICH 0418006 is a 7-inch gas meter bar designed for Class 400 meters. It features a side inlet and top outlet configuration, with a 1-1/4 inch connection size. Constructed from malleable iron, this meter bar is suitable for gas installations requiring a specific flow direction and meter class. It is engineered for reliable performance in gas distribution systems.

• Designed for Class 400 gas meters
• Features a side inlet and top outlet configuration
• Constructed with a 1-1/4 inch connection size and 7-inch length

Product Highlights

This gas meter bar provides a specific inlet/outlet flow for Class 400 meters, ensuring proper gas system integration.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 0418006

Technical Specifications

• MPN: 0418006
• Brand: WAL-RICH
• Product Type: Meter Bar
• Length: 7 inch
• Connection Size: 1-1/4 x 1-1/4 x 1-1/4 inches
• Inlet/Outlet Configuration: Side Inlet - Top Outlet
• Meter Class: Class 400
• Material: Malleable Iron
• Pattern: Keyspan/National Grid
• Quantity Per Package: 1
• Color: Black
