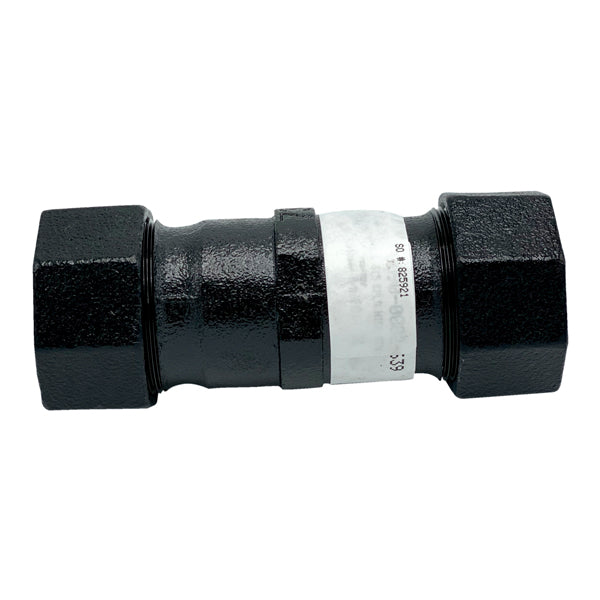

Wal-rich 0090-0005-639 Dresser Style 90 Coupling with Carded Glass Gaskets 5 Inches

Product Description

The WAL-RICH 0090-0005-639 is a Dresser Style 90 Coupling designed for high-temperature pipe connections in demanding industrial and utility applications. This coupling measures 5 inches in overall length and is constructed from cast iron for long-lasting durability in harsh environments. It comes complete with carded glass hi-temp gaskets, making it ready for immediate installation without sourcing additional sealing components separately. The E-coated finish provides corrosion resistance, extending the service life of the coupling in both above-ground and below-ground installations. It is rated for a maximum working pressure of 50 PSI and can handle temperatures up to 1200 degrees F, making it suitable for high-heat piping systems including steam, gas distribution, and industrial process lines. Dresser-style couplings are widely used by plumbers, pipefitters, and utility contractors to join plain-end pipe sections without welding or threading. The Style 90 design allows for fast, reliable connections on steel, cast iron, and other compatible pipe materials. The coupling accommodates slight misalignment and pipe movement, which is especially valuable in older piping systems where pipe ends may not be perfectly aligned. The included glass gaskets maintain a secure seal even at extreme temperatures, reducing the risk of leaks over the life of the joint. This product weighs 6.2 pounds, reflecting its heavy-duty cast iron construction. Professionals working on municipal water systems, industrial plants, steam distribution networks, or gas pipelines will find this coupling to be a dependable solution for joining plain-end pipe segments quickly and securely.

• Cast iron construction with E-coated finish for corrosion resistance and long service life
• Includes carded glass hi-temp gaskets rated for temperatures up to 1200 degrees F
• Rated for 50 PSI maximum working pressure across a variety of pipe materials and applications

Product Highlights

The WAL-RICH 0090-0005-639 Dresser Style 90 Coupling delivers a high-temperature, high-pressure pipe joining solution with a durable cast iron body, E-coated finish, and included glass gaskets for dependable performance in industrial and utility piping systems.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 0090-0005-639

Technical Specifications

• Overall Length: 5 inches
• Gasket Type: Carded Glass Hi-Temp Gaskets
• Body Material: Cast Iron
• Finish: E-Coated
• Maximum Pressure: 50 PSI
• Maximum Temperature: 1200 Degrees F
• Weight: 6.2 pounds
