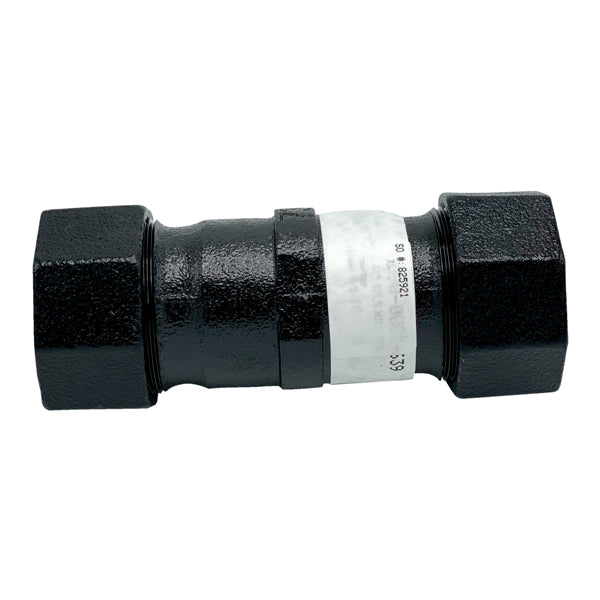

Wal-rich 0090-0004-082 Dresser 1 1/2 Style 90 Coupling with Armored Gaskets

Product Description

The WAL-RICH 0090-0004-082 is a Dresser Style 90 Coupling designed for 1 1/2 inch pipe connections. It is built for demanding trade applications where a secure, leak-resistant pipe joint is required. This coupling is a go-to solution for plumbers, pipefitters, and utility workers who need a reliable mechanical pipe coupling for water, gas, and other fluid systems. The Style 90 design is a widely recognized standard in the pipe coupling industry, known for its ability to join plain-end pipes without threading or welding. This makes installation faster and easier on the job site, reducing labor time and the need for specialized tools. The WAL-RICH 0090-0004-082 features Armored Grade 27 Gaskets, which provide a durable, high-performance seal. These armored gaskets resist deformation under pressure, making them ideal for systems that experience pressure fluctuations or thermal expansion and contraction. The coupling body is made from cast iron, a material known for its strength, rigidity, and long service life in piping systems. It is finished with an E-Coat, an electrodeposition coating process that provides corrosion protection across the entire surface, including hard-to-reach areas. This makes the coupling suitable for buried, underground, or exposed environments where corrosion resistance matters. With a maximum operating pressure of 150 PSI and a maximum temperature rating of 212 degrees F, this coupling handles standard water and utility pipe system demands. The overall length of the coupling is 5 inches, and the unit weighs 4.6 pounds. It is a direct fit for Dresser-style coupling applications and a solid choice for repair, replacement, or new installation work on 1 1/2 inch pipe systems.

• Dresser Style 90 design joins plain-end pipe without threading or welding for fast field installation
• Armored Grade 27 Gaskets deliver a durable, pressure-resistant seal for reliable long-term performance
• E-Coated cast iron body provides corrosion protection for underground and exposed pipe applications

Product Highlights

The WAL-RICH 0090-0004-082 Dresser Style 90 Coupling combines cast iron strength with armored gasket sealing and a corrosion-resistant E-Coat finish. It is rated for 150 PSI and 212 degrees F, making it a dependable choice for 1 1/2 inch pipe coupling in plumbing and utility systems.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 0090-0004-082

Technical Specifications

• Weight: 4.6 pounds
• Overall Length: 5 inches
• Gasket Type: Armored Grade 27
• Body Material: Cast Iron
• Finish: E-Coated
• Maximum Pressure: 150 PSI
• Maximum Temperature: 212 degrees F
