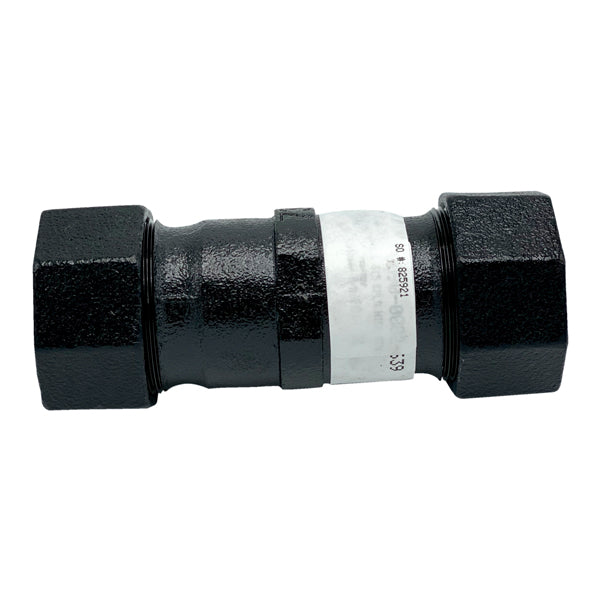

Wal-rich 0090-0003-082 Dresser Style 90 Coupling with Armored Gaskets 1-1/4 Inch

Product Description

The WAL-RICH 0090-0003-082 is a Dresser Style 90 Coupling designed for 1-1/4 inch pipe connections. This coupling is built for demanding trade applications where a reliable, pressure-rated mechanical joint is required. It is commonly used by plumbers, pipefitters, and mechanical contractors working on water, gas, and industrial piping systems. The Style 90 design is a widely recognized standard in the pipe coupling industry, offering a secure connection between two pipe ends without the need for threading, welding, or flanging. This makes it a practical choice for repair work, new installations, and field service situations where speed and reliability matter. The coupling features Armored Grade 27 gaskets, which provide an enhanced seal compared to standard rubber gaskets. The armor reinforcement helps the gasket resist displacement under pressure and temperature changes, contributing to a more stable and long-lasting connection. The body is constructed from cast iron, which provides the structural strength needed for pressurized pipe systems. A factory-applied E-coat finish adds corrosion resistance, helping the coupling hold up in wet or harsh environments. The overall length is 5 inches, and the coupling is rated for a maximum working pressure of 150 PSI. It is also rated for temperatures up to 212 degrees Fahrenheit, making it suitable for hot water and steam-adjacent applications. At 3.625 pounds, this is a solid, well-built component suited for professional pipe repair and installation work. Plumbers and pipefitters who work with Dresser-style couplings will recognize the Style 90 as a dependable option for joining plain-end pipe sections in both new construction and maintenance scenarios.

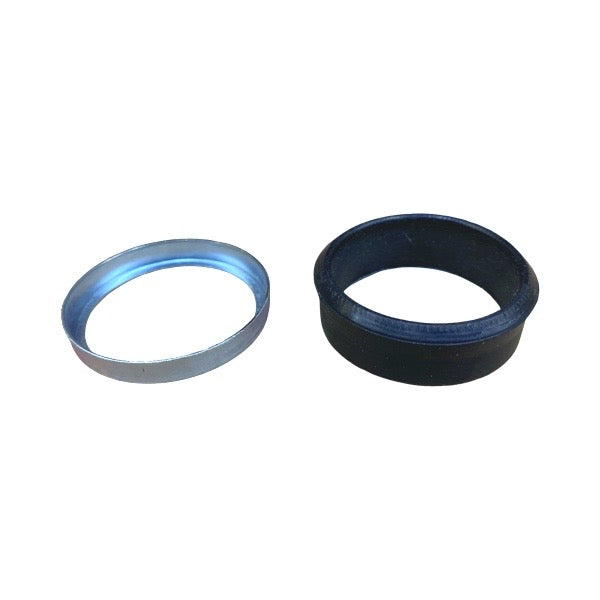

• Armored Grade 27 gaskets provide a reinforced, displacement-resistant seal under pressure and temperature variation
• Cast iron body with E-coat finish delivers structural strength and corrosion resistance for long service life
• Rated to 150 PSI maximum pressure and 212 degrees Fahrenheit maximum temperature for hot water and industrial piping use

Product Highlights

The WAL-RICH 0090-0003-082 Dresser Style 90 Coupling delivers a proven mechanical pipe joint solution with armored gaskets, a cast iron body, and a durable E-coat finish. It is rated for 150 PSI and 212 degrees Fahrenheit, making it a reliable choice for professional plumbing and mechanical piping systems.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 0090-0003-082

Technical Specifications

• Pipe Size: 1-1/4 inches
• Overall Length: 5 inches
• Gasket Type: Armored Grade 27
• Body Material: Cast Iron
• Finish: E-Coated
• Maximum Pressure: 150 PSI
• Maximum Temperature: 212 Degrees F
• Weight: 3.625 pounds
