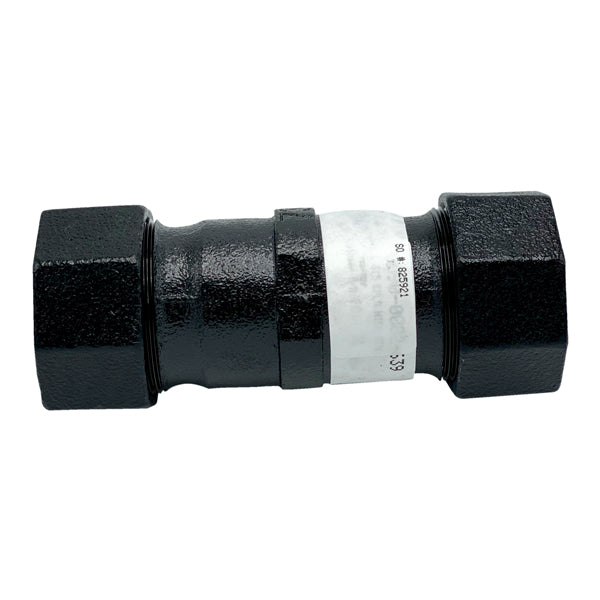

Wal-rich 0090-0001-082 Dresser 3/4 Style 90 Coupling with Armored Gaskets

Product Description

The WAL-RICH 0090-0001-082 is a Dresser 3/4 Style 90 Coupling designed for joining pipe sections in water, gas, and industrial piping systems. This coupling is built for professionals who need a reliable mechanical connection without welding or threading. Plumbers, pipefitters, and utility contractors rely on Dresser-style couplings to make fast, secure pipe joints in the field. The Style 90 design allows it to connect plain-end pipe, making it a practical choice for repair work and new installations alike. The overall length of this coupling is 5 inches, giving it enough contact area to create a strong, leak-resistant seal along the pipe. It is rated for a maximum working pressure of 150 PSI and a maximum temperature of 212 degrees F, making it suitable for a wide range of water and low-pressure gas applications. The body is constructed from cast iron, which provides the structural strength needed for demanding underground and above-ground piping environments. An E-coat finish is applied to the exterior, delivering corrosion resistance that extends the service life of the coupling in wet or buried conditions. The armored Grade 27 gaskets included with this coupling are reinforced sealing elements that resist extrusion and degradation under pressure. These gaskets conform tightly to the pipe surface, creating a dependable seal even on slightly corroded or out-of-round pipe ends. This makes the 0090-0001-082 an ideal solution for pipe repair jobs where perfect pipe conditions cannot be guaranteed. Trade professionals will appreciate the straightforward installation process that requires no special tools beyond standard wrenches. This coupling is a go-to component for municipal water systems, industrial facilities, and commercial plumbing repairs.

• Cast iron body construction provides high strength for demanding piping applications
• E-coat finish delivers corrosion resistance for underground and exposed installations
• Armored Grade 27 gaskets create a reliable seal on plain-end or slightly imperfect pipe surfaces

Product Highlights

The WAL-RICH 0090-0001-082 Dresser Style 90 Coupling combines cast iron durability with armored gasket sealing technology, rated to 150 PSI and 212 degrees F for dependable performance in water and low-pressure piping systems.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 0090-0001-082

Technical Specifications

• Weight: 2.42 pounds
• Overall Length: 5 inches
• Gasket Type: Armored Grade 27
• Body Material: Cast Iron
• Finish: E-Coated
• Maximum Pressure: 150 PSI
• Maximum Temperature: 212 degrees F
